Technical Information
51
Master Chef Ovens
5.25 Operational Temperature Sensor (1R30 & 4R30)
– Removal
Refer to: Top Heater/Broiler Heating Element – Removal (Section 5.22)
5.26 Self Clean Temperature Sensor (3R30 & 6R30)
– Removal (P/Self Clean Models)
1. Remove the Front Doors (Section 5.2).
2. Remove the oven (Section 5.5).
3. Remove the Back Panel(s) – as necessary (Section 5.9 and /or 5.10)
4. Disconnect the electrical connection.
5. Refer to Figure 5-19. Move the retaining spring to the side and
remove the Sensor (Item 1) from the Catalyst Vapor Outlet .

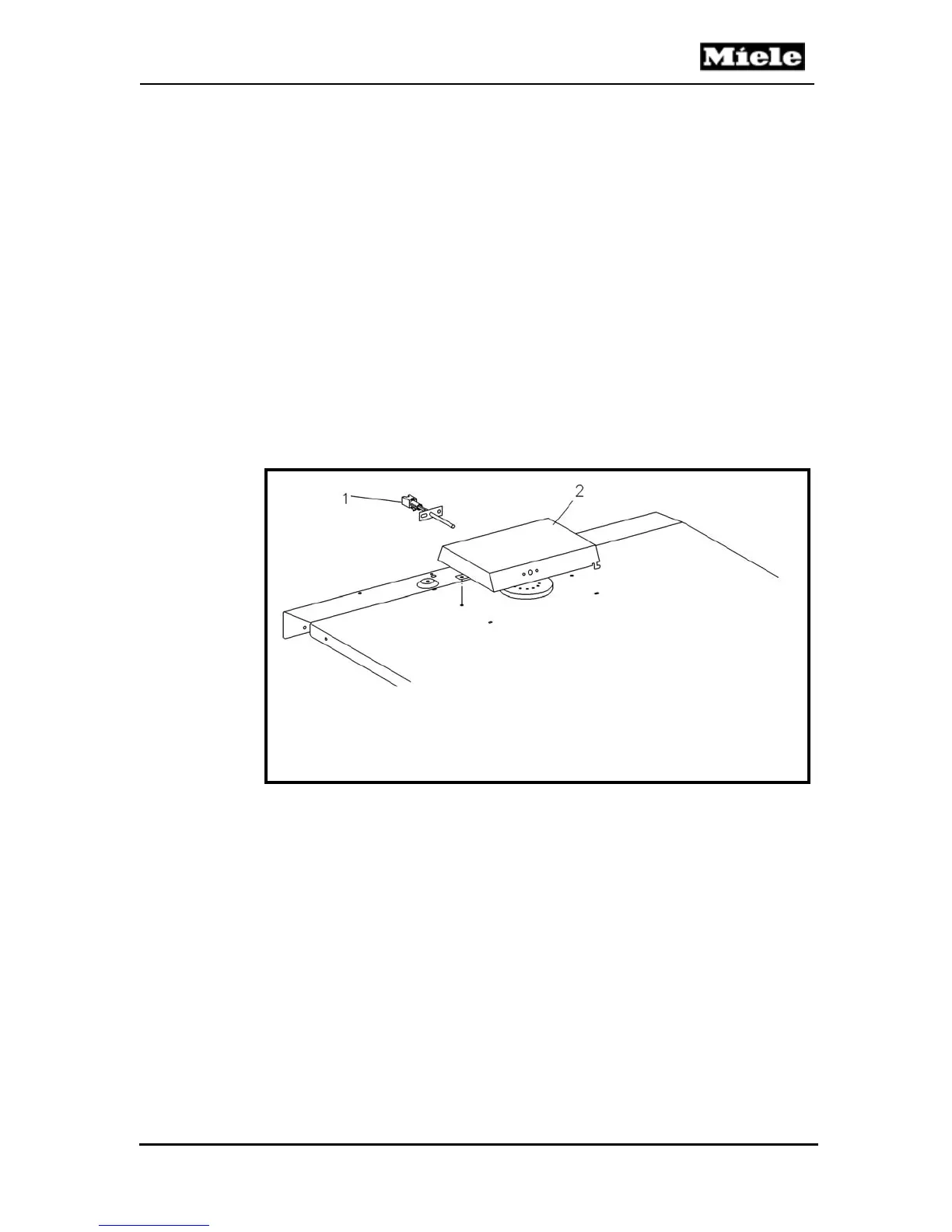

Figure 5-19: Self Clean Temperature Sensor Removal
1. Self Clean Temperature Sensor
2. Catalyst Vapor Outlet
