5.17 Upper Door Latch Drive Motor and Door Lock Switch
(1M23 & 1S60) (Double Ovens with Self Clean) -
Removal
1. Remove the Front Doors (Section 5.2).
2. Remove the oven (Section 5.5).
3. Remove the Upper Back Panel (Section 5.9)
4. Refer to Figure 5-10. Unplug the electrical connections to the Door
Lock Motor (Item 3).
5. Remove the Door Latch Drive Screws (Item 2).
6. Refer to Figure 5-11. Loosen the Cable Nut (Item1).
7. Remove the Cable from the mounting bracket.
Note
When the Cable tension is released, the Oven Door Locks.
1. Door Lock Motor
2. Mounting Screws
3. Electrical Connection

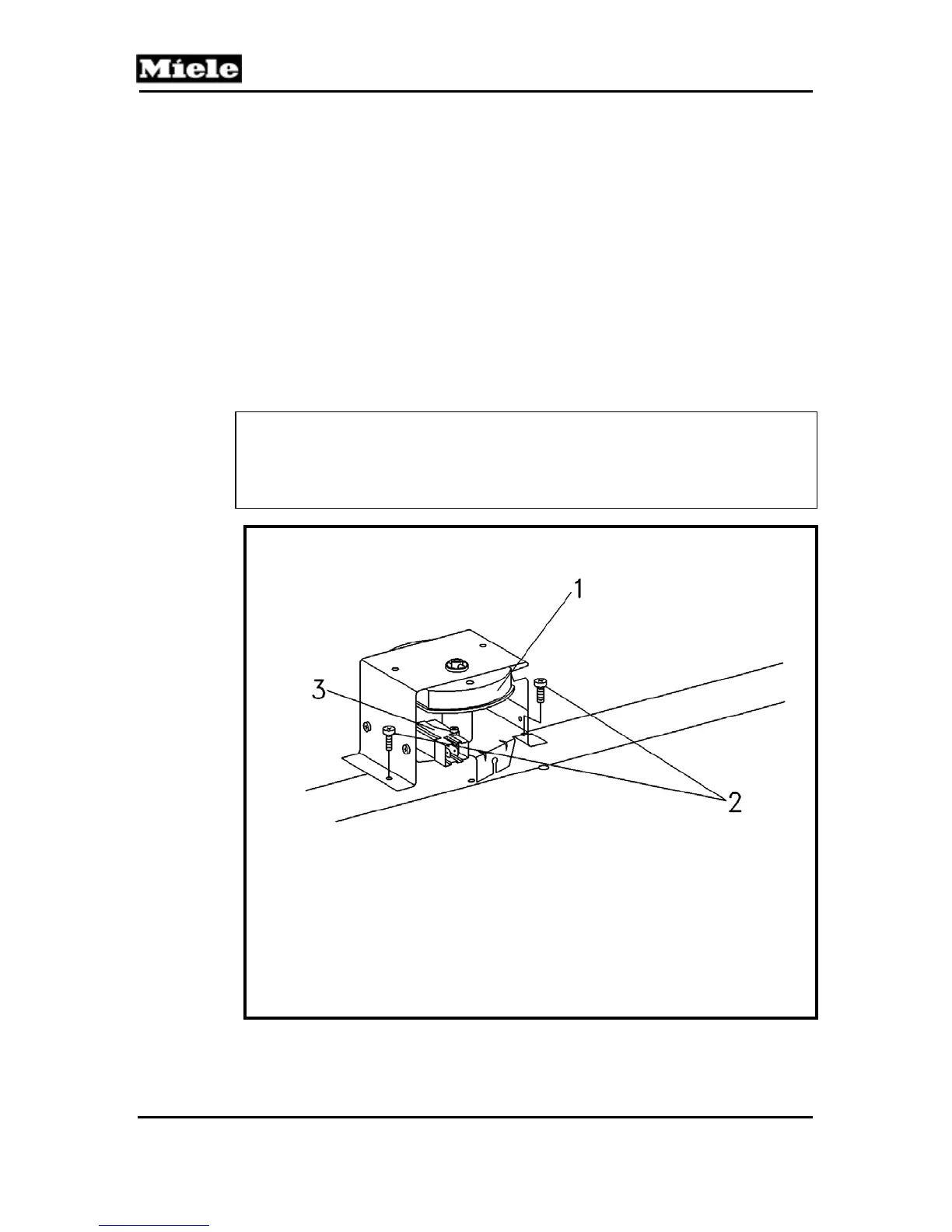

Figure 5-10: Door Latch Drive Motor Assembly
