Installation diagrams
139
Dimensions and cabinet cutout
Miele ovens can be installed flush or proud. Discuss your installation
requirements with your architect, designer and installer.

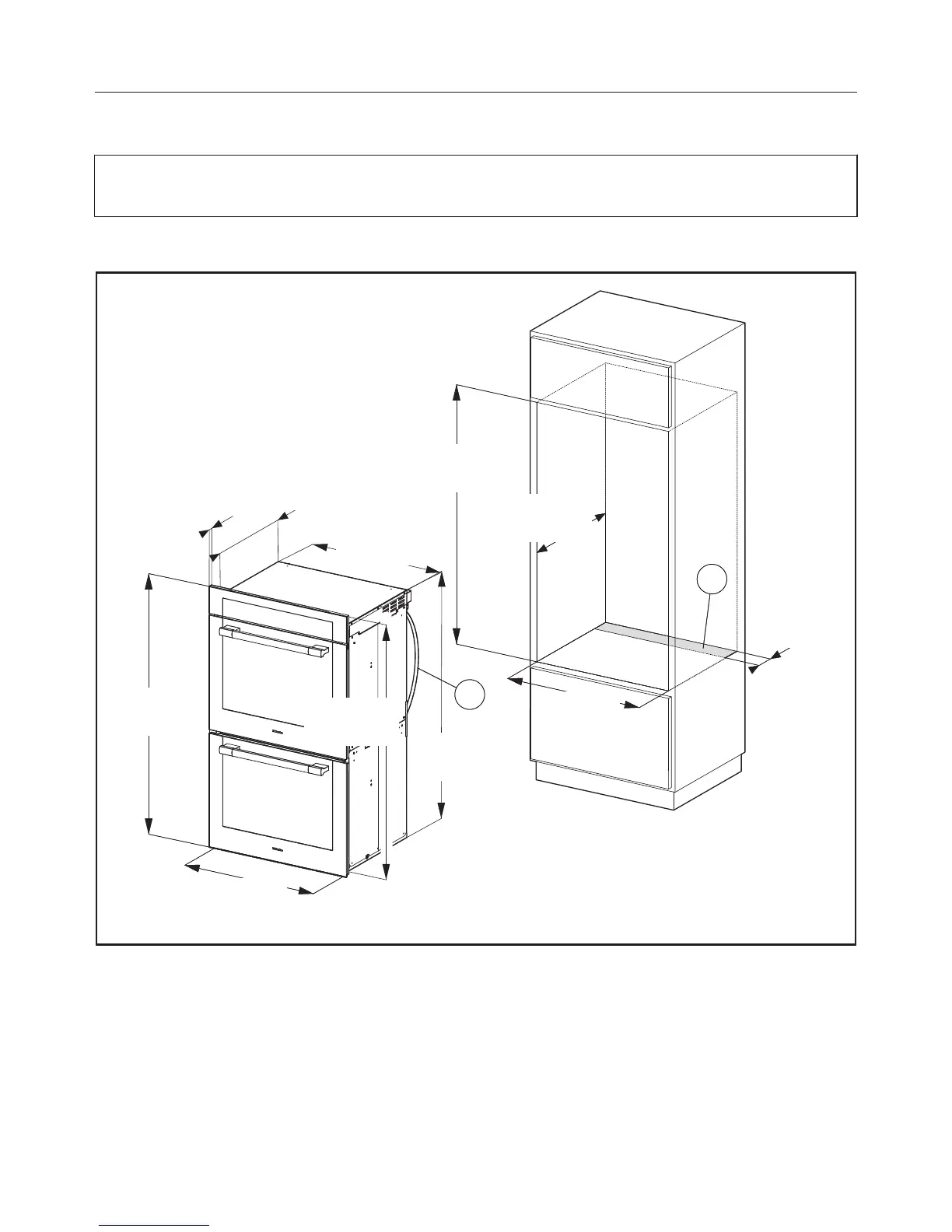

Installation into a tall cabinet
B
A
B
A
7/8" (22*/23** mm)
22 9/16"
(573 mm)
28 7/16"
(722 mm)
49 5/16"
(1252 mm)
29 13/16"
(757 mm)
51 1/2"
(1308 mm)
28 1/2"
(724 mm)
4"
(100 mm)
24"
(610 mm)
51 1/8"
(1298 mm)
50 5/8"
(1286 mm)

Cutout (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power
cord and ventilation

Power cable with plug
* Oven with glass front
** Oven with metal front
