Miele TWB 140 WP User Manual

Installation
*INSTALLATION*
65

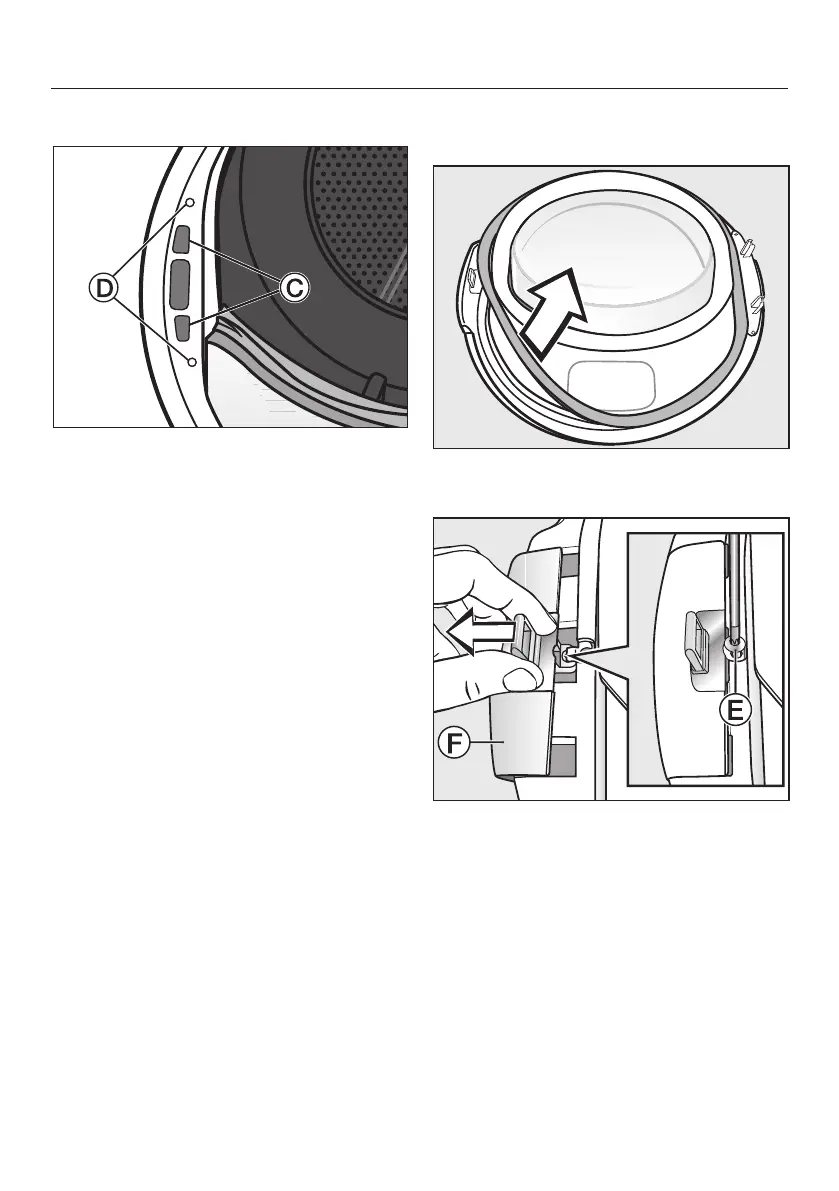

 Turn the door lock through 180°.
 Press the door lock into the openings
 on the opposite side of the door
opening.
 Adjust the position of the door lock
so that the screw holes line up with
those in the front panel of the dryer
.
 Secure the door lock with the two
Torx screws.
3. Remove the lock catch from the
door
 First take the rubber seal off the door
and place this to one side.
 Use a T20 Torx screwdriver to remove
the screw  on the lock catch.
 Pull off the lock catch together with
the lock catch cover .

Miele TWB 140 WP Specifications

General

Drum type	Honeycomb
Color name	Lotus white
Door hinge	Left
Door style	Opaque door
Cord length	2 m
Control type	Rotary, Touch
Loading type	Front-load
Drying system	Heat pump
Product color	White
Reversible doors	-
Appliance placement	Freestanding
Inverter technology	Yes
Cycle time	155 min
Noise level	66 dB
Drying class	A
Drum capacity	7 kg
Refrigerating medium	R290
Refrigerating medium weight	110 g
Current	13 A
Heat source	Electric
Connected load	1100 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy consumption	1.7 kWh
Energy efficiency scale	A+++ to D
Power consumption (off)	0.3 W
Annual energy consumption	208 kWh
Delay start (max)	24 h

Weight and Dimensions

Depth	643 mm
Width	596 mm
Height	850 mm
Weight	58000 g
Depth with door open	1077 mm
