PELLERIN MILNOR CORPORATION
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
partslist tothe illustration.

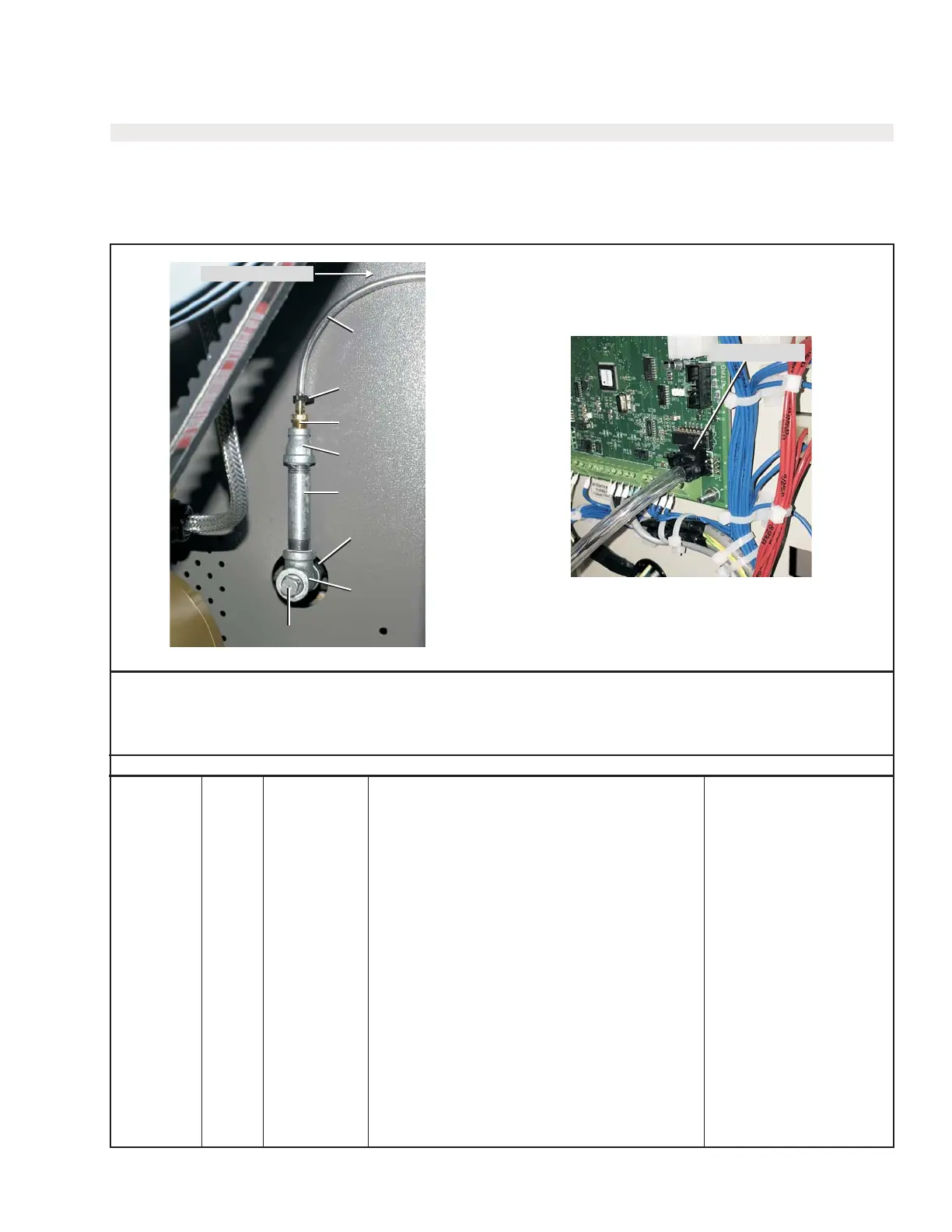

Parts List—Level Sensing
---------------------------------------------------------------------------------------ASSEMBLIES—---------------------------------------------------------------
A ALL30212A 30VRJ AIRCHAMBER ASSY 30015/30022VRJ
B ALL30212 30V8Z AIRCHAMBER ASSY 30015/30022V8Z
30015/30022VZZ
-------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 5N0K04AG42 NPT NIP 1/2X4 TBE GALSTL SK40
all 2 5S0KNFA NPT TEE 1/2" GALMAL 150#
all 3 5SP0KGFSS NPT PLUG 1/2 SOSOLID GALSTL
all 4 5N0K05AG42 NPT NIP 1/2X5 TBE GALSTL SK 40
all 5 5SR0K0ENF NPT RED 1/2X1/4 GALMAL 150#
A 6 51E502B HOSESTEM BRASS 1/4MPX1/8HOSEID
B 6 51E502D HOSESTEM BRASS 1/4"MPX X 3/16"HOSE ID
all 7 27A047A HOSE CLAMP 5/16" NOMINIAL MIN .256",
A 8 60E004NT TUBING (NYL.)CLR.1/4"ODX1/8"
8 60E004NA TUBING CLEAR PVC 3/16"IDX5/16"OD
B
8
7
6
5
4
1
2
3
VRJ, V8Z, & VZZ
Transducer
To Transducer
Page (1 / 1)BMP100045/2018484A
Level Sensing
30015VRJ,V8Z 30022,VZZ VRJ,V8Z,VZZ
96
