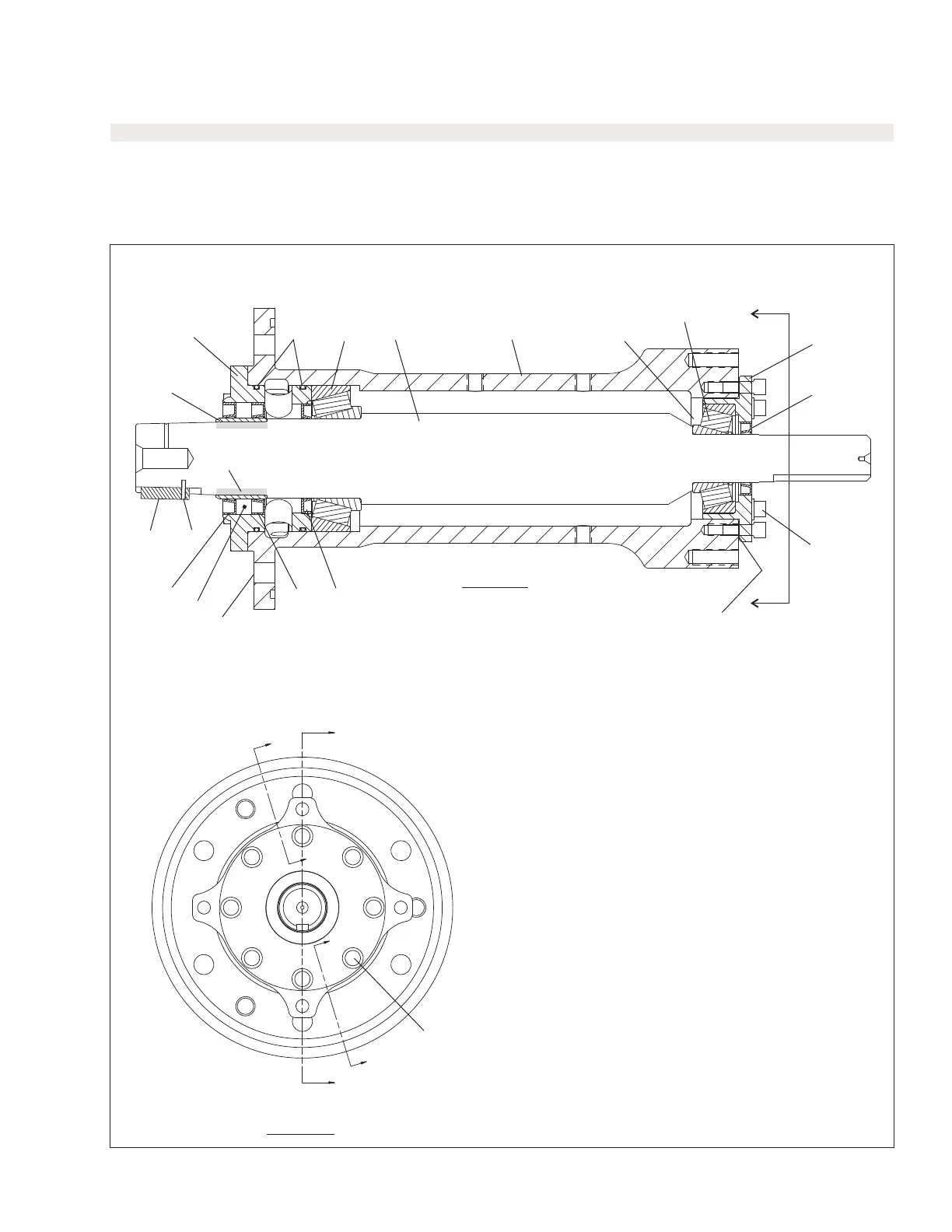

Main Bearing
30015V8Z,VZZ 30022V8Z,VZZ
Notes:
A. Apply adhesive to the bolt.
B. The seal holder must be fully down
before you tighten the fasteners.
C. Apply primer and adhesive to the
rear bearing cup and holder housing.
D. Clean the shaft and inner sleeve.
Make sure that they are clean and
free from oil. Apply adhesive to the
shaft, then apply the sleeve. Make
sure of a bond on a minimum of 75%
of the surface.
E. Pack grease between these two
seals during assembly.
F. Item 15 is not shown. These plugs
are used temporarily to prevent dirt
from entering unfilled holes.
B
B
View B-B
A
A
D
D
C
C
1
2
3
4,22
5
6
7
8
9,B
10
14,B
1313
View A-A
D,25
23,24,C
E
16,17
8 Places
16,17
8 Places
18,19,20,21
As needed
11
12
