PELLERIN MILNOR CORPORATION
Page (1 / 1)BMP920017/2014155A

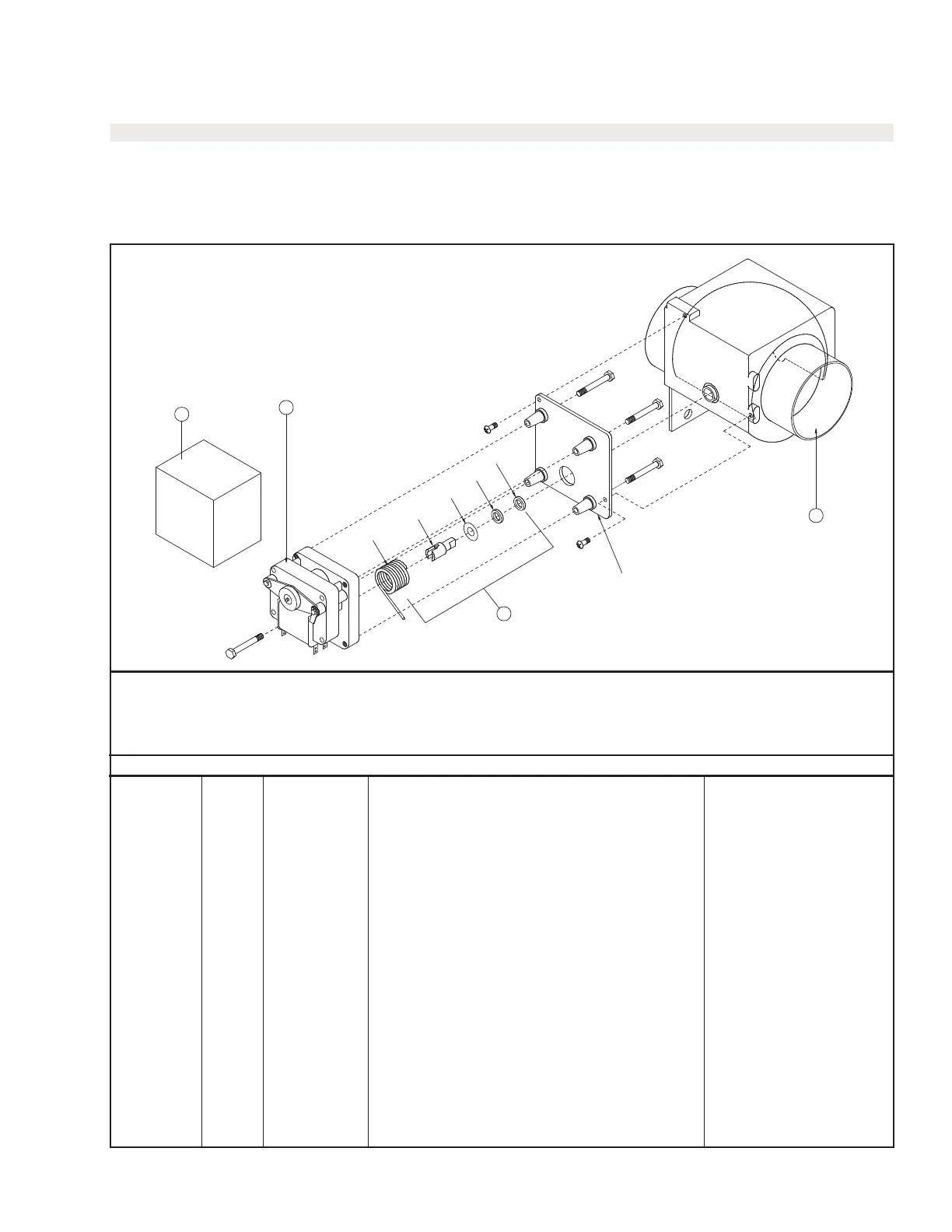

3 Inch Electric Drain Valve
1
4
3
2
Spring
Drive Pin
Washer
Bearing
Seal
Valve Body
Motor
Cover
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
partslist tothe illustration.
Parts List—3 Inch Electric Drain Valve
.
-----------------------------------------------------------------------------ASSEMBLIES---------------------------------------------------------------
A 96D350A37C DRNVAL 3"N/O 120V50/60C W/COVER
B 96D350A71 DRINVAL 3"N/O MTRDR240V 50/60C
C 96D350B71 DRINVAL 3"N/C MTRDR240V 50/60
----------------------------------------------------------------------------COMPONENTS-------------------------------------------------------------
A 1 96D35MTR37 120V 50/60CMTR FOR 3"DRAINVAL
BC 1 96D35MTR71 240V 50/60CMTR FOR 3"DRAINVAL
all 2 96D35B0D B0DY & BALL FOR 3" DRAIN VALVE
all 3 96D35C0V MTRCOVER 2-PCFOR 3"DRAINVAL
all 4 96D35PIN DRIVE PIN KIT FOR 3" DRAIN VAL
Motor Installation
Plate
90
