PELLERIN MILNOR CORPORATION
Page (1 / 1)BMP140003/2014155A
Drive Chart
30015T6X, 30022T6X
1
2
4
3
6
5
Item
Part Number
Description
Comments
Used In

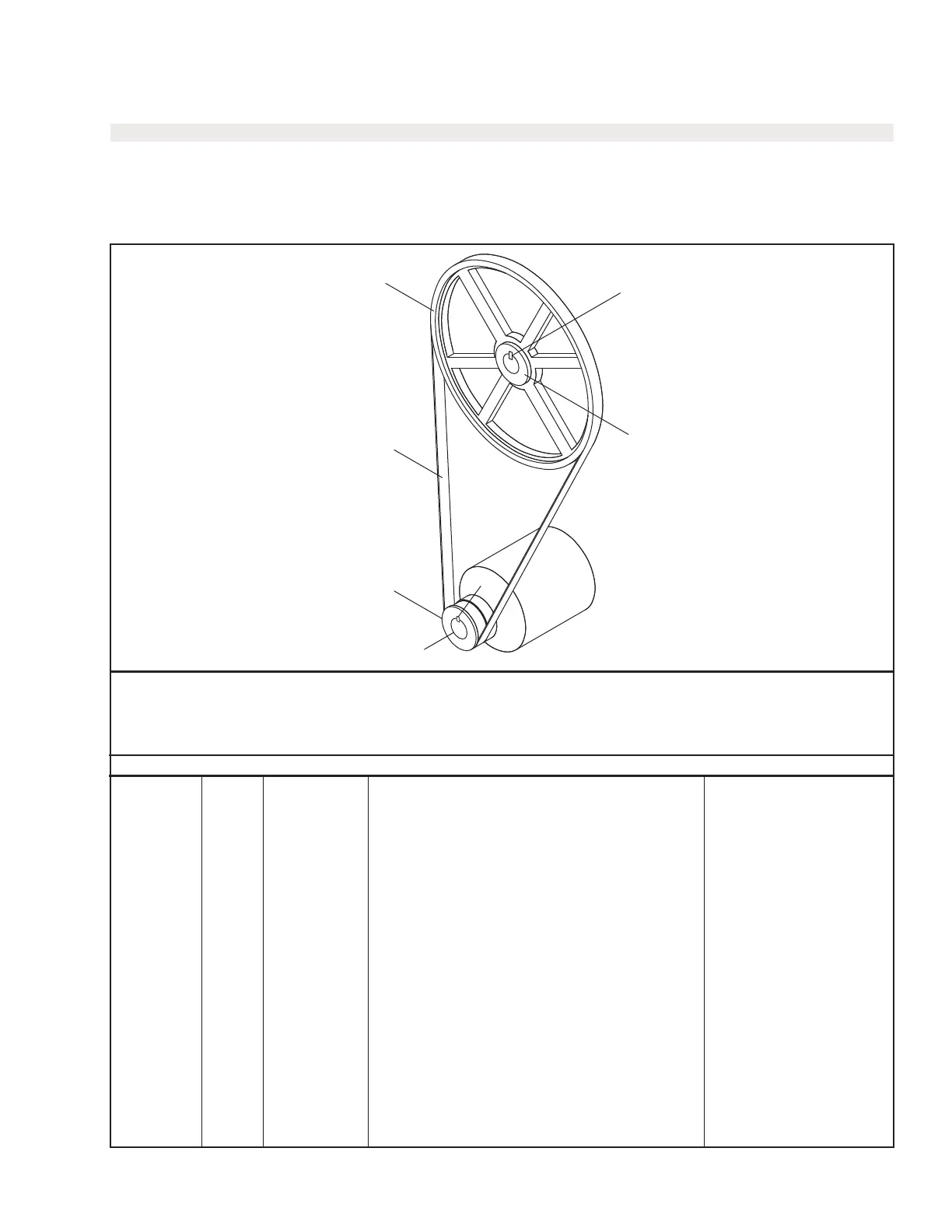

Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
partslist tothe illustration.
Parts List—Drive Chart
GDB30009 3022T6X DRIVE BASE INSTALL REFERENCE
-------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 56190R3SF VPUL 3G3V19.0 (SF)
all 2 56VR075XB3 WEDGE COG BAND 3R3VX750 EA = 1 BELT
all 3 56Q1KSF 1+1/2" BUSH VPUL QD TYPE SF
all 4 560260R3JA VPUL 3G3V2.60 QD TYPE JA
all 5 56Q1CJA 1+1/8" BUSH VPUL QD TYPE "JA"
all 6 15E230 STRMACHKEY 3/8SQX2+1/2 TOL.+0
all 7 15E195 SQMACHKEY 3/16X1+1/2 NOTAPER&H
7
38
