Legend

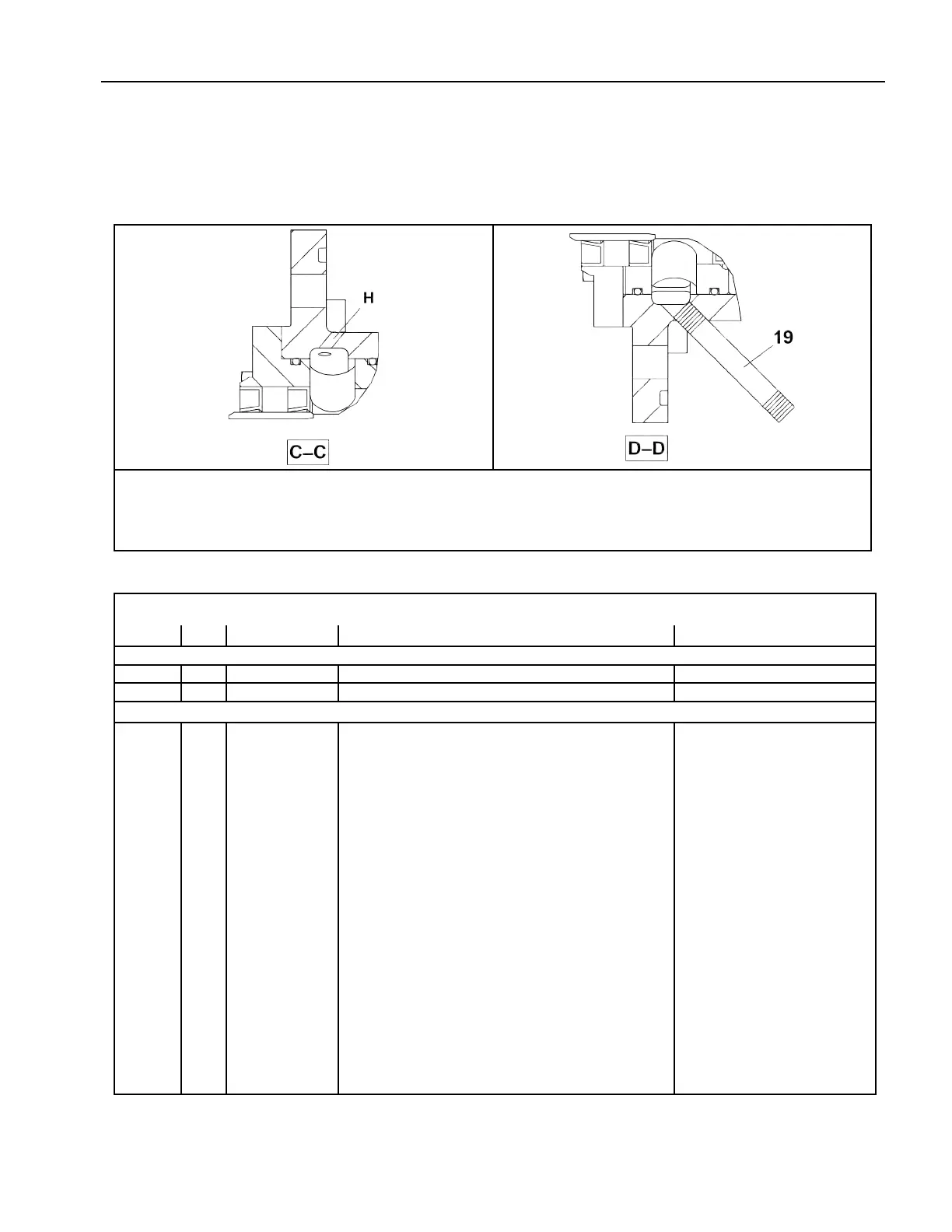

C—C.Detail View of Vent
D—D.Detail View of Leak-off from Seals
H...Vent
Table 23. Parts List—Main Bearing
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A A33 09908 3015/22T6X + 3015VRJ BEARING ASSY MAIN
Components
all 1 15H089S SPRINGPIN 1/8"DIA X 5/8" LONG
all 2 02 02294A SHAFT KEY 3/8 X 3/8
all 3 02 13143 SEALSLEEVE=SWE-1/SWE
all 4 15B080 HEXCAPSCR 5/16 X1+1/4 SS-18-8
all 5
60C152D ORING 4+1/2 1/8CS BUNA #246
all 6 54A126 BALLBEAR 65MM ID (2.56"ID) #SKF 6213-2Z
all 7 X2 13106A 3015/22T6X + 3015VRJ MAIN SHAFT MACH
all 8 X2 03573Y 3015/22T6X + 3015VRJ BEARING HOUSING MACH
all 9 54A125 BALLBEAR 40MM ID (2.56"ID) #SKF 6308-2Z
all 10 24S053 SEAL 2.625X3.625X.437#10051L5
all 11 X2 13144X 3015/22T6X + 3015VRJ SHAFT SEAL HOLDER
all 12 27A253 PLUG FOR 1/2BOLTHOLE CAPLUG #4
all 13 17B001 EXTRET RING GLH#DSH-040
all 14 17B001C EXTRET RING 65MM (2.559) ROTORCLIP #SH-255 .078
THICK
all 15 17B021 INTRETRING 120MM
all 16 20C011B RETAIN CMPD ADH LCT#60905 .5CC
all 17 20C006P PRIMER-N #7649 LCT#21348-4
all 18 20C009 THRDLKSEAL LCT#27731 50CC
all 19 5N0E03ABE2 NPT NIP 1/4X3 TBE BRASS STD
Main Bearing
2 Sheets
30015T6X and 30022T6X
Cylinder, Shell and Bearing Assemblies
To Next Page
