50
Pellerin Milnor Corporation
Legend

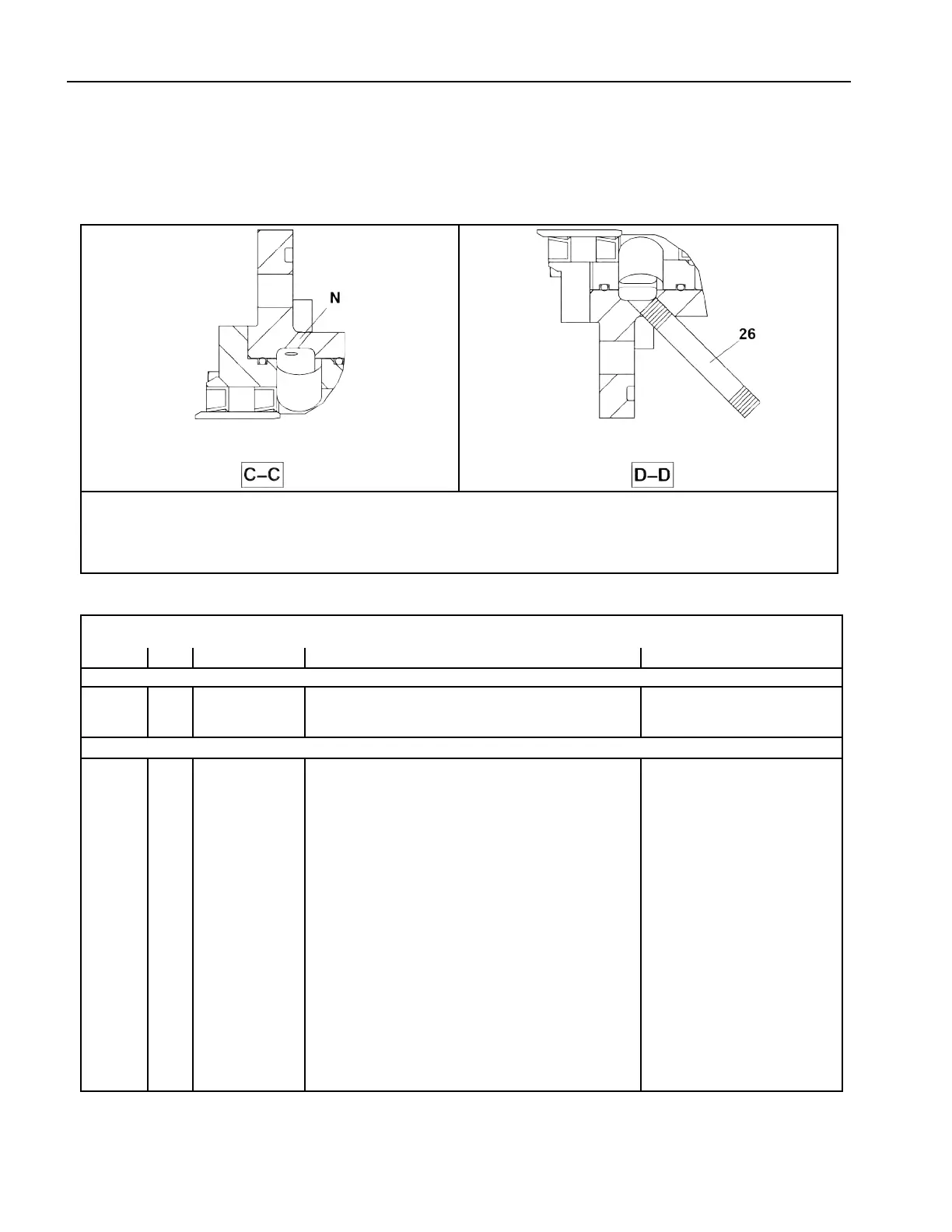

C—C.Detailed view of vent
D—D.Detailed view of leak-off from seals
N...Vent
Table 26. Parts List—Main Bearing
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A A33 09904 BEARING ASSY MAIN 8 BOLTS SEAL HOLDER V8Z
B A33 09904V BEARING ASSY MAIN (VITON) 8 BOLT SEAL HOLDER
V8Z
VITON
Components
all 1 15H089S SPRINGPIN 1/8"DIA X 5/8" LONG
all 2 02 02294A SHAFT KEY 3/8 X 3/8
all 3 02 13143 SEALSLEEVE=SWE-1/SWE
all 4 15B080 HEXCAPSCR 5/16 X1+1/4 SS-18-8
all 5
60C152D ORING 4+1/2 1/8CS BUNA #246
all 6 54A311312 FAG 33213(CUP & CONE)= 65MM BORE, 120MM O.D.
(EA=SET)2.56"BORE
all 7 X2 13106 MACH=MAIN SHAFT, 3022V8
all 8 X2 03573X MACH=BEARING 3022HS W/STARPLATE
all 9 X2 03659W HOUSE=SEAL+BRG 3022V8
all 10 24S15840 SEAL SKF 15840, P#CR40X60X8 CRW1 R
all 11 54A309310 FAG 32308A(CUP & CONE)=40MM BORE, 90MM O.D.
(EA=SET)1.58"ID
all 12 24S052A SEAL 2.559X3.55X.315 CR#25430
all 13 24S053 SEAL 2.625X3.625X.437#10051L5
A 13 24S053V SEAL 2.625X3.625X.437#10050H5L VITON
B 14 X2 13144W HOLDER=SHAFT SEAL 3022V8
all 15 27A253 PLUG FOR 1/2BOLTHOLE CAPLUG #4
Main Bearing
3 Sheets
30015V8Z,VZZ and 30022V8Z,VZZ
Cylinder, Shell and Bearing Assemblies
