Milnor 42026V6J User Manual

Door Handle and Lock Actuator
PELLERIN MILNOR CORPORATION
BIIFBM13 (Published) Book specs- Dates: 20140327 / 20140327 / 20140327 Lang: ENG01 Applic: IFB
Door Handle and Lock Actuator

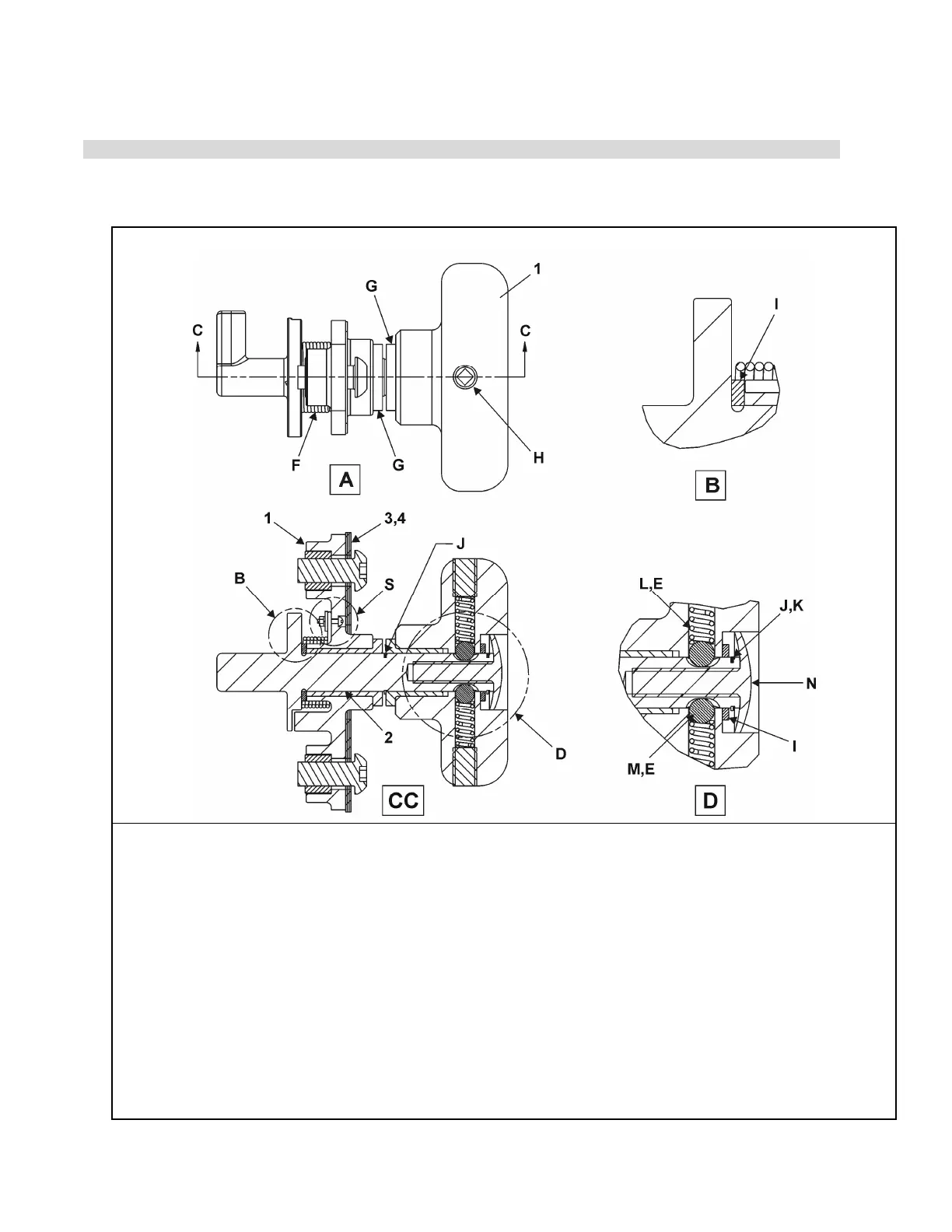

Figure 1: Door Handle and Lock Actuator
Detailed views
Legend
A. Top
B. Detailed view
CC. Cross Section
D. Detailed view
E. instances 4
F. Torsion spring
G. Flange bearing
H. Bolt
I. Thrust washer
J. Retainer ring
K. Do not open the ring more than necessary to get it on the shaft.
L. Spring
M. Roller ball
N. Retainer
.
