CYLINDER
SEE
BMP920017
SEWER
OPTIONAL
STEAM
COLD
WATER
HOT
WATER
FLUSHING WATER
OVERFLOW
PERISTALTIC
SUPPLY
SEE BMP000043.
OPTIONAL
SUPPLY
INJECTOR
SEE BMP860026.
FOR FLUSHING
MANIFOLD, SEE
BMP900019.
DRAIN
M
PRESSURE
REGULATOR
PRESSURE GAGE
PRESSURE
RELIEF
VALVE
*- Pressure regulator must remain set at the factory setting of 28PSI. See BMP900031 for maintenance procedures.
*
BMP120032/2012383A
(1/2)

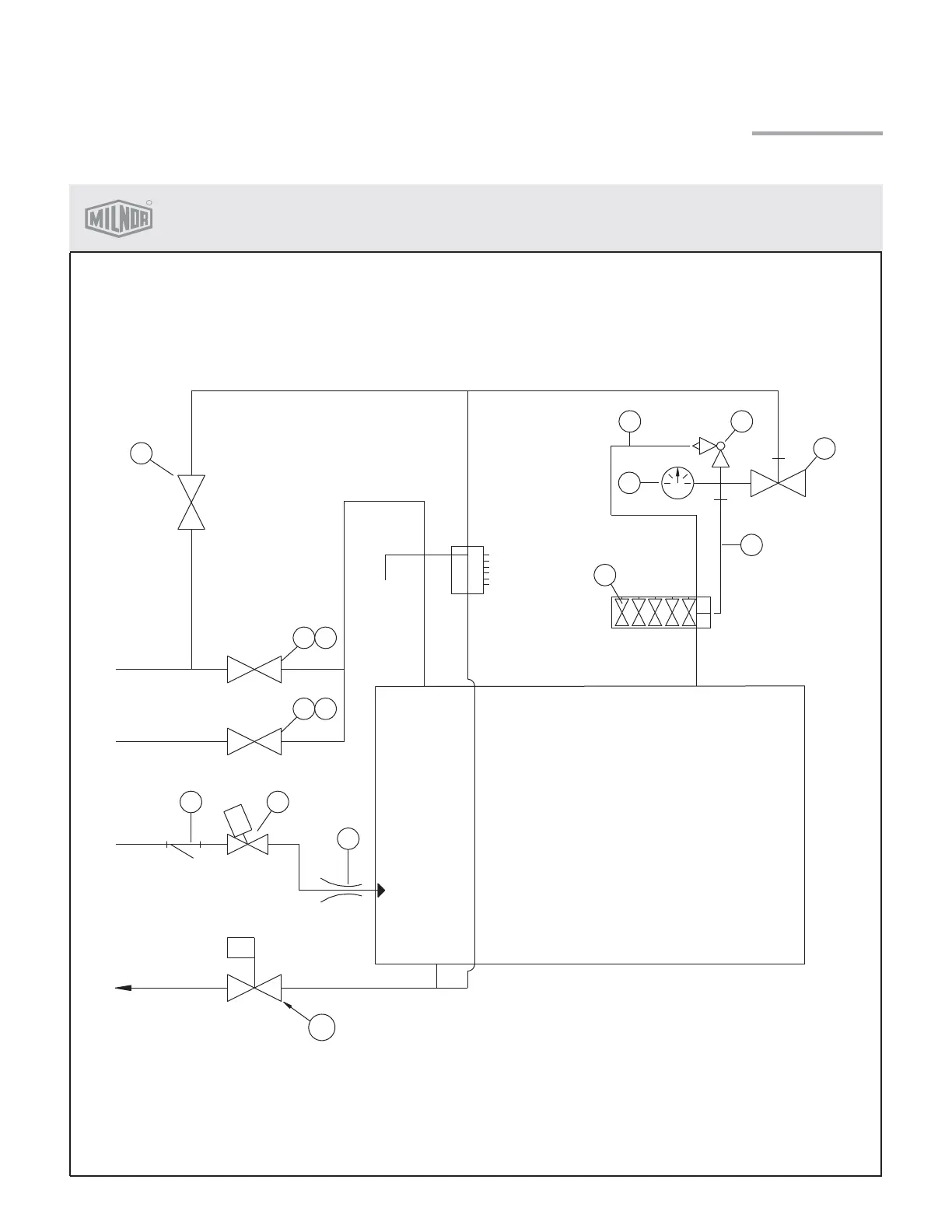

Water Schematic
36021V5J, 36026V5J, 36021V7J, 36026V7J, 42026V6J, 42030V6J
