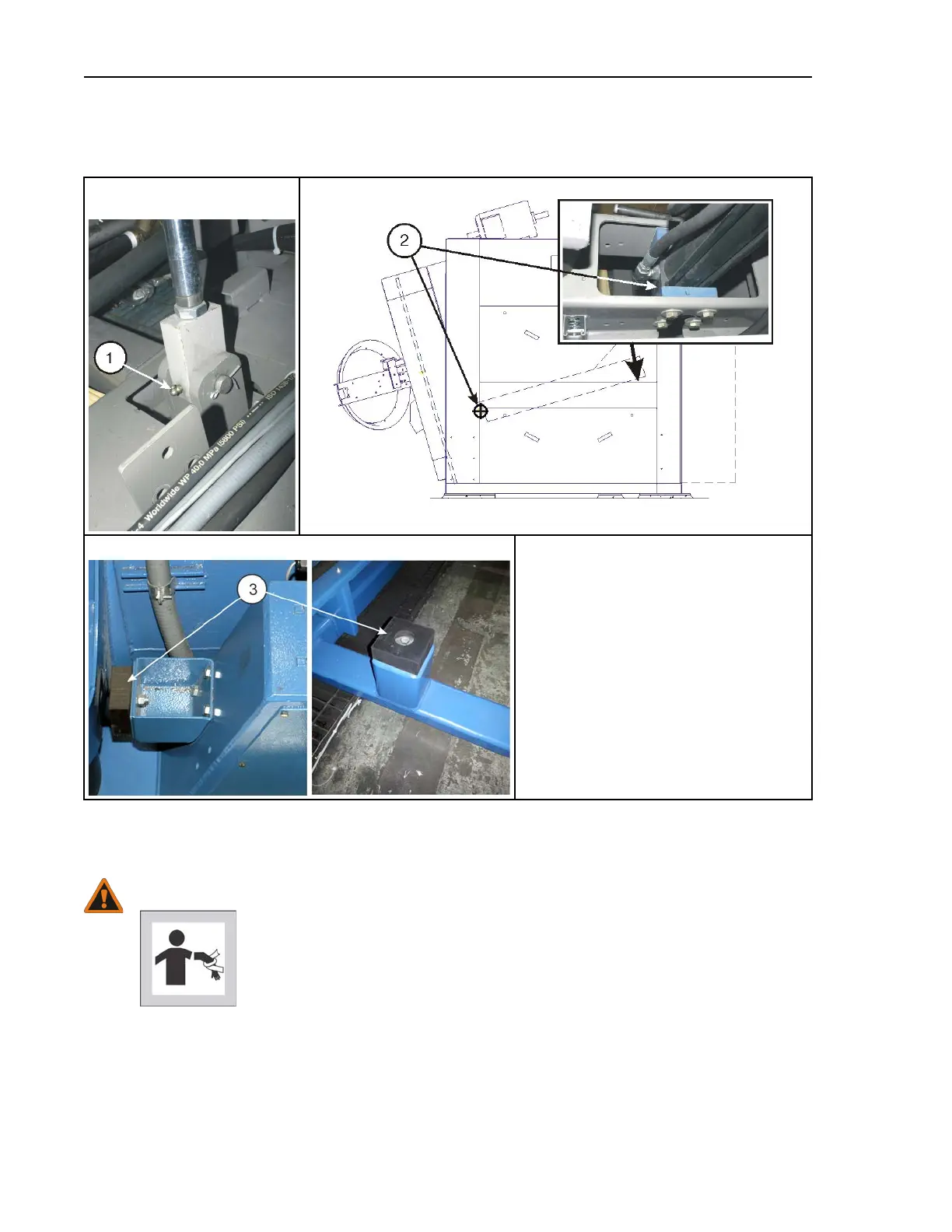

Figure 22. Other Routine Maintenance Items on Each Side of M_K Hydraulic Tilt Washer-extractor
Models
Lower Pivot for Hydraulic
Cylinder
Tilt Pivots With No Lubrication
Typical Tilt Bumpers (68036M5K shown)
Legend
1...Grease port for lower pivot
2...Front pivot and hydraulic cylinder
upper pivot. No lubrication necessary.
3...Tilt bumpers
3.3.3 How to Do a Test of the Mechanical Brake
BNWBUH01.T01 0000336193 A.5 B.15 A.6 10/13/21 2:40 PM Released
WARNING: A moving cylinder and goods — can crush or sever body parts when a
person reaches in the door to load or unload.
� Do not let the machine operate with a defective mechanical brake.
The disk or band brake holds the cylinder while the operator puts goods in, or removes goods
from the machine. Although the mechanical brake does not usually stop the cylinder during oper-
ation (the second note below tells more), it can do so if an unusual condition occurs. Examples
Routine Maintenance
