Pellerin Milnor Corporation
CAUTION:
Release of pressurized steam — can severely burn you.
� Close the external shutoff valve and release remaining pressure before
you do maintenance.

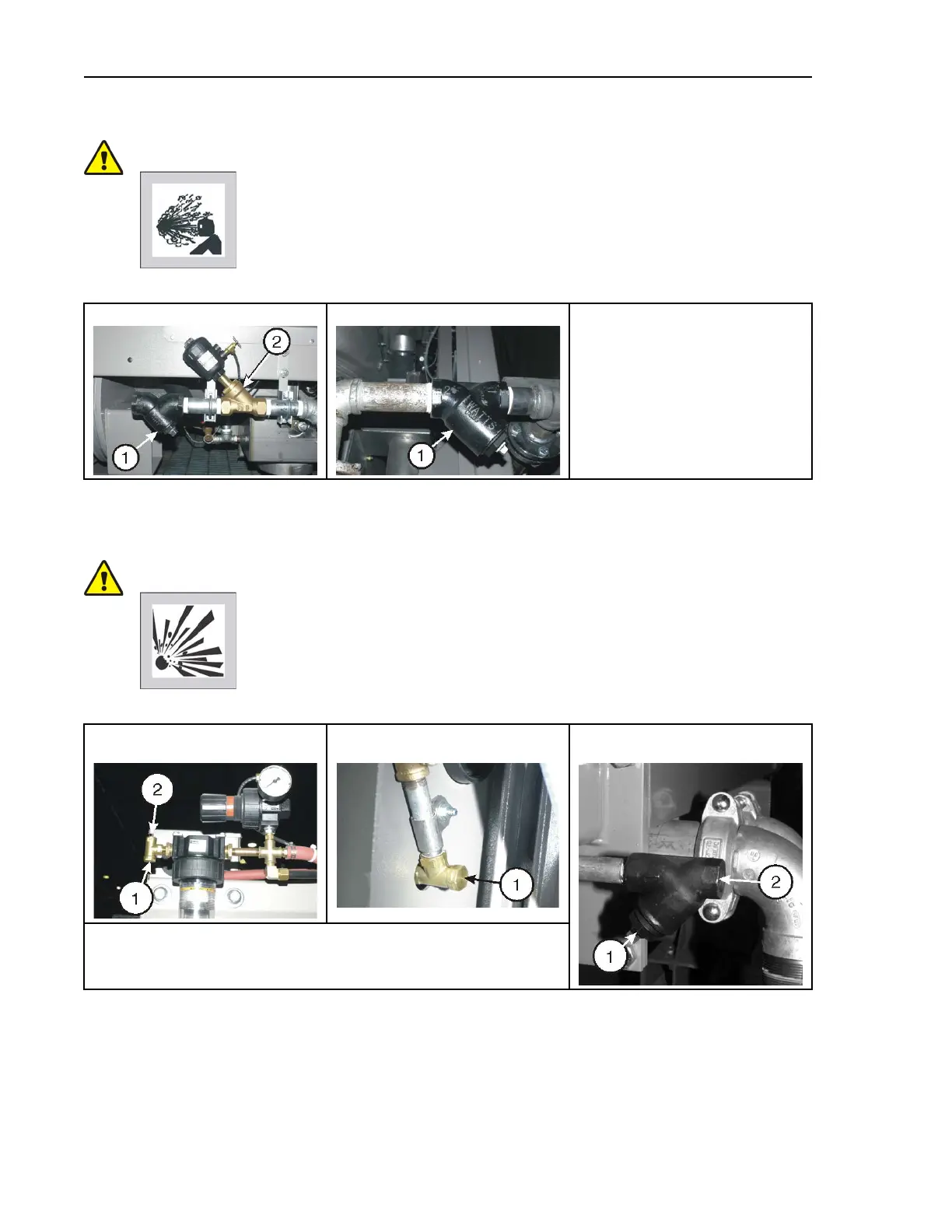

Figure 14. Steam Inlet Strainer. These are examples. Your machine can look different.
42044SP2 Washer-extractor
76039CBW
®
Tunnel Washer
Legend
1...Steam strainer. Remove steam
pressure before you remove
the plug. See warning state-
ment below.
2...Steam valvecan burn
3.2.5 How to Examine Compressed Air Mechanisms
BNWUUH01.C04 0000335530 A.5 B.21 A.8 10/14/21 2:00 PM Released
CAUTION: Compressed air pressure — can cause components to fly apart
forcefully.
� Close the external shutoff valve and release remaining pressure before
you do maintenance.
Figure 15. Compressed Air Inlet Strainers. These are examples. Your machine can look different.
T-Strainer. Outside machine
frame on some models.
T-Strainer. Inside machine
frame on some models.
Y-strainer. Used on some
models
Legend
1...See caution statement below. Remove plug to remove strainer.
2...Compressed air in.
Routine Maintenance
