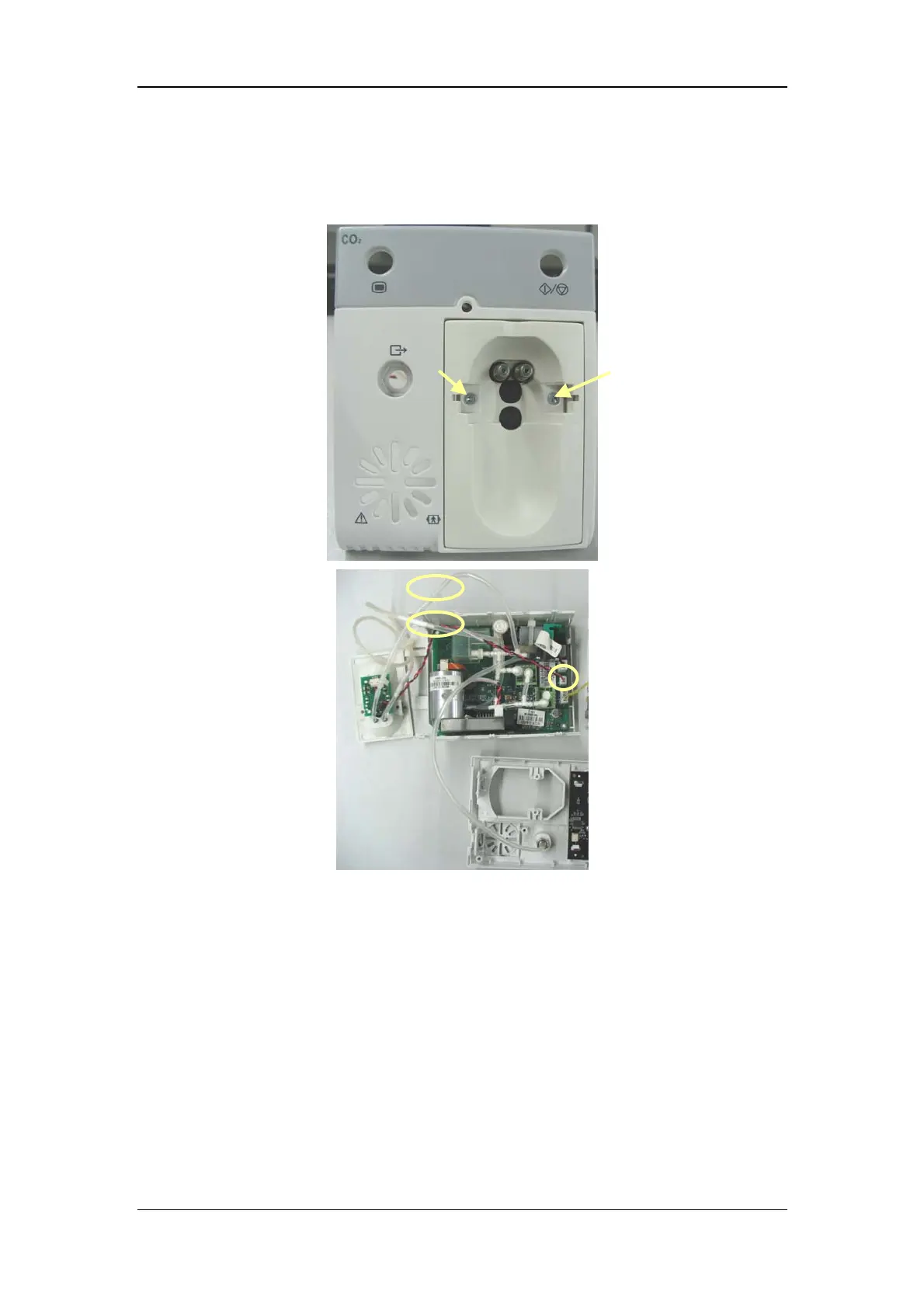

6-11

Parts List

SN P/N Description Qty

1 6802-30-66768 Fan assembly 1

2 6802-30-66765 Integral module rack 1

3 115-003229-00 Main support assembly 1

4 6802-30-66766 Rear housing assembly 1

5 6802-30-66770 Power module assembly 1

6 M04-051014--- Crosshead screw M3×12 4

043-000059-00 or

*6812-20-67000-51

or 043-000472-00

Interface board cover(new interface)

Interface board cover (basic)

Interface board cover

8 6802-20-66707-51 CF card door 1

9 TR6F-30-67306 TR6F recorder 1

6802-30-66769 or

*6812-30-66994 or

115-003230-00

Interface board assembly

11 M04-004012--- Crosshead screw M3×6 22

12 6802-30-66763 Battery compartment assembly 1

13 115-003228-00 6802 internal wireless AP assembly 1

6802-30-66767 or

*6812-30-66993 or

115-003231-00

Master control board assembly 1

115-001906-00 or

*6812-30-66995

6802 CF card assembly (211 driving board)

CF card slot cover kit

16 M04-004015--- Crosshead screw M3×8 7
