Mindray iMEC Series User Manual

4
Basic Operations

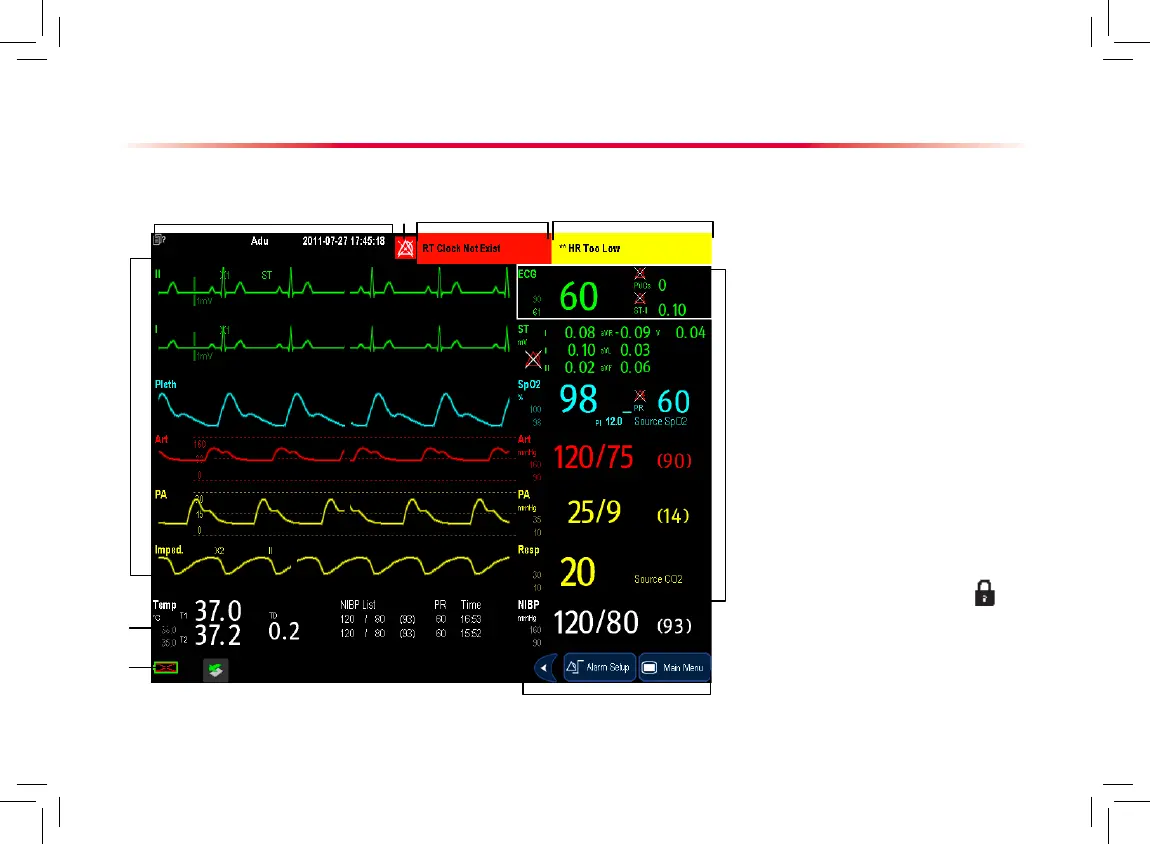

Display Screen
1
2
3
4
5
9
6
Patient Information Area
Alarm Symbols
Technical Alarm Area
1.
2.
3.
4. Physiological Alarm Area
5. Waveform Area
6. Parameter Area A
7. Parameter Area B
8. Prompt Message Area
9. QuickKeys area
Select screen items by pressing them di-
rectly on the patient monitor’s screen.
You can lock or unlock the touchscreen
by pressing and holding the [Main Menu]
QuickKey for 3 seconds. The symbol is
displayed if the touchscreen is locked. In
this case, all touchscreen operations are
disabled.
Also, you can use the QuickKeys at the
bottom of the main screen to access fast
to functions.
Using the Touchscreen
8
7
