Mindray Passport 8 Service Manual

Passport 8/12 Service Manual 8-1
8 Parts
8.1 Introduction
This chapter contains the exploded views and parts lists of the main unit. It helps the engineer to identify the parts
while disassembling the monitor and replacing the parts. This manual is based on the maximum configuration. Your
equipment may not have same parts and the quantity of the screws or stacking sleeves etc. may be different with
those included in the parts lists.

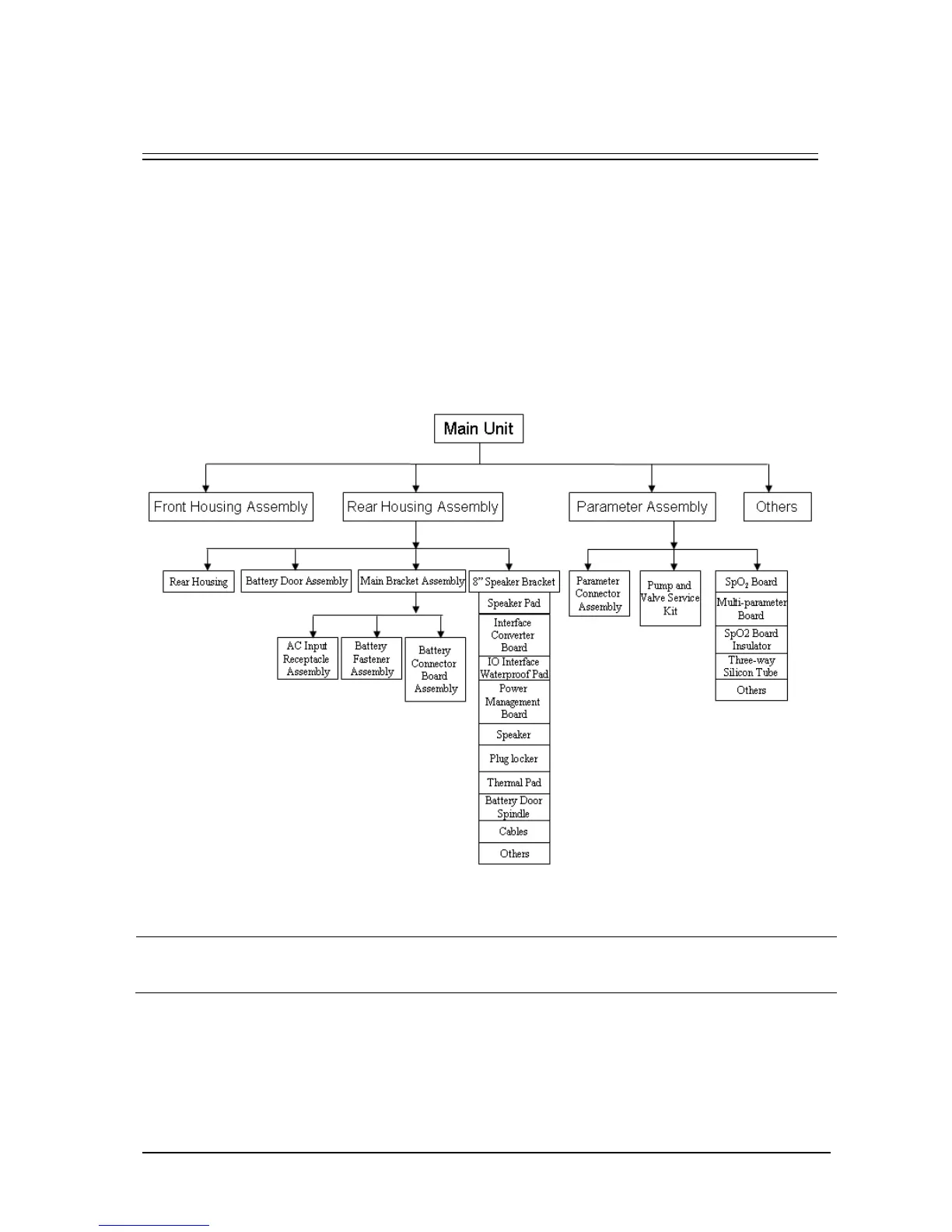

Hardware architecture of the main unit is shown below:
NOTE
 The part number listed in the Parts List is only for checking the FRU part number which is also included in
the Parts List. Please provide the FRU parts number when purchasing spare parts.
