8.2.5 Battery Compartment Assembly

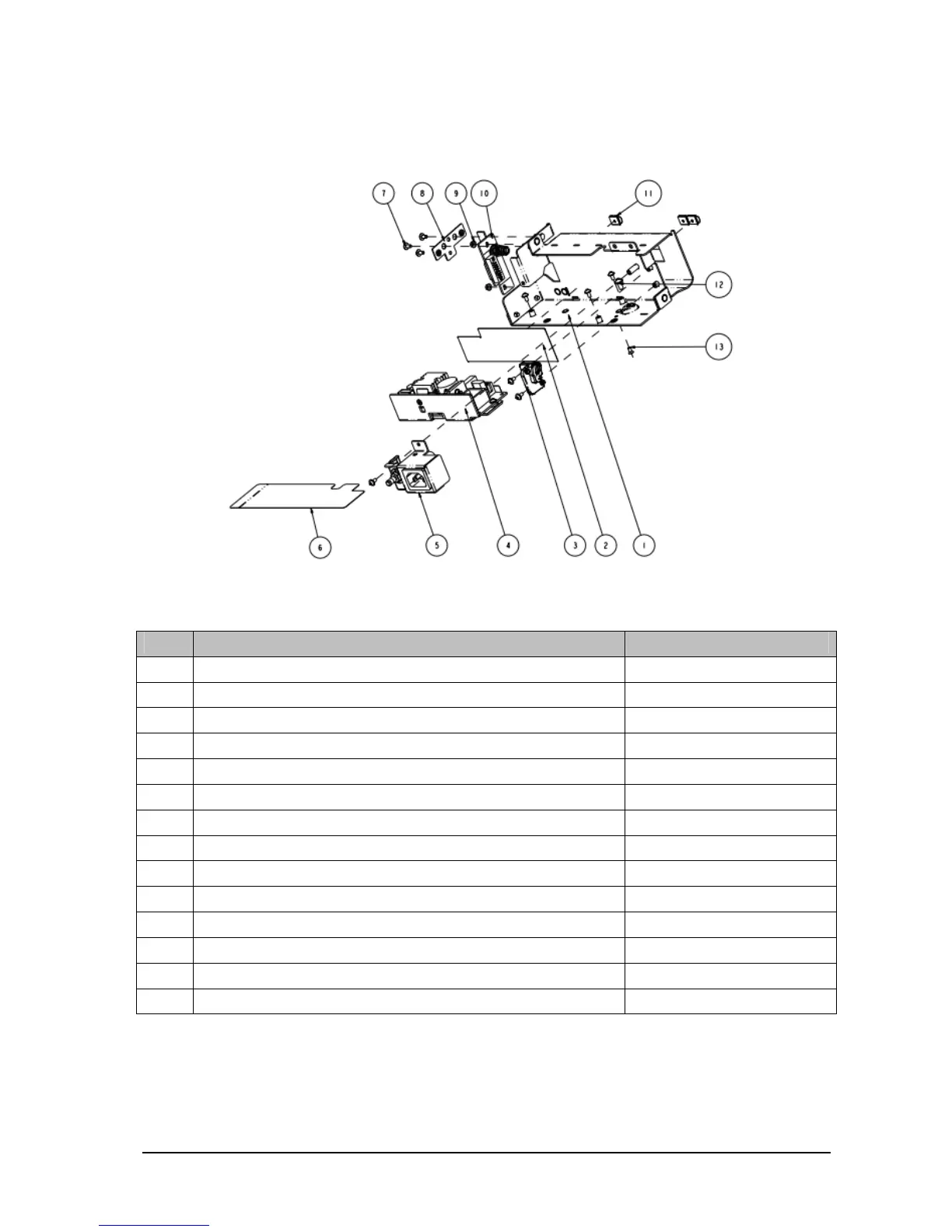

8.2.5.1 Exploded View
8.2.5.2 Parts List
SN Description FRU part number
1 Main bracket (Passport 8) /
2 Power bracket insulator /
3 Battery fastener 115-010921-00
4 AC/DC power board 051-001064-00
5 AC input receptacle assembly 115-010920-00
6 Power insulator (Passport 8) /
7 Screw, Pan head with washer, Phillips M3×6 /
8 Recorder adjustment bracket /
9 M3 nut with spring washer /
10 Battery connector board () 115-010799-00
11 Spring, EMI /
12 Screw, Pan head with washer, Phillips M4×8 /
13 Screw, pan head, Phillips, M3×6 /
/ Cable between the power management board and AC/DC power board 009-001991-00
