Annotations, Arrows, and Body Markers
Annotations
Enter Annotation Text Manually
The annotation function may be invoked by pressing the Spacebar, the Text key on the
keyboard, or the Annotation button on the console. The trackball is used to define where
onscreen the text will be written. The QWERTY keyboard can be used to type text as desired.
Annotation Softkeys (OLEDs)
While the annotation function is active the Softkeys (OLEDs) contain User Defined lists.
•
Three Softkey OLEDs support pre-defined lists (the contents of which can be modified
using the Setup / Annotation /Define Lists Page). Pre-defined lists contain the following
text on default:
•
Left, Right
•
Long, Trans, Sag, Cor
•
Dist, Prox, Mid
•
Three additional OLED keys support lists that can be customized in Setup /
Annotation.
•
Each category/preset combination can, therefore, have 6 lists attached to it. The
lists can be defined under the Setup / Annotation /Define Lists option.
•
Softkey OLEDs support changing the ‘Libraries’ of annotations that are displayed as well
as easy access to delete text, delete last, delete word, Home Set and Home.
•

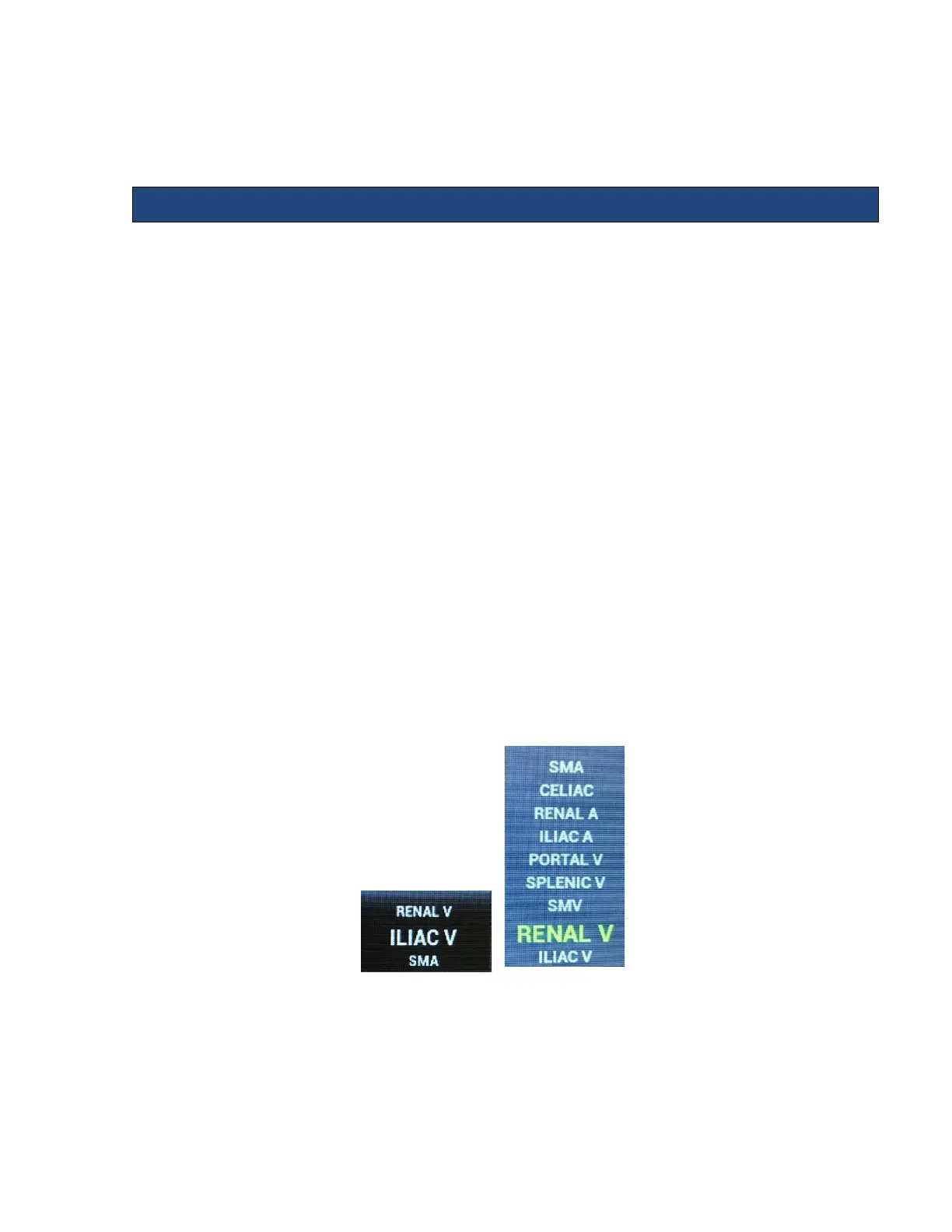

Pressing, toggling or turning OLED controls will briefly display the entire content of the
list onscreen so users can quickly and easily find the text needed, even if out of order.
