6 | minnkotamotors.com
©2019 Johnson Outdoors Marine Electronics, Inc.
INsTallaTION
INSTALLING THE COPILOT
Your new CoPilot accessory comes with everything you’ll need to directly install it on your trolling motor. These instructions are intended
to show how to install your CoPilot into the PowerDrive. Please review the parts list, mounting considerations and tools needed for
installation prior to getting started. For additional product support, please visit minnkotamotors.com.

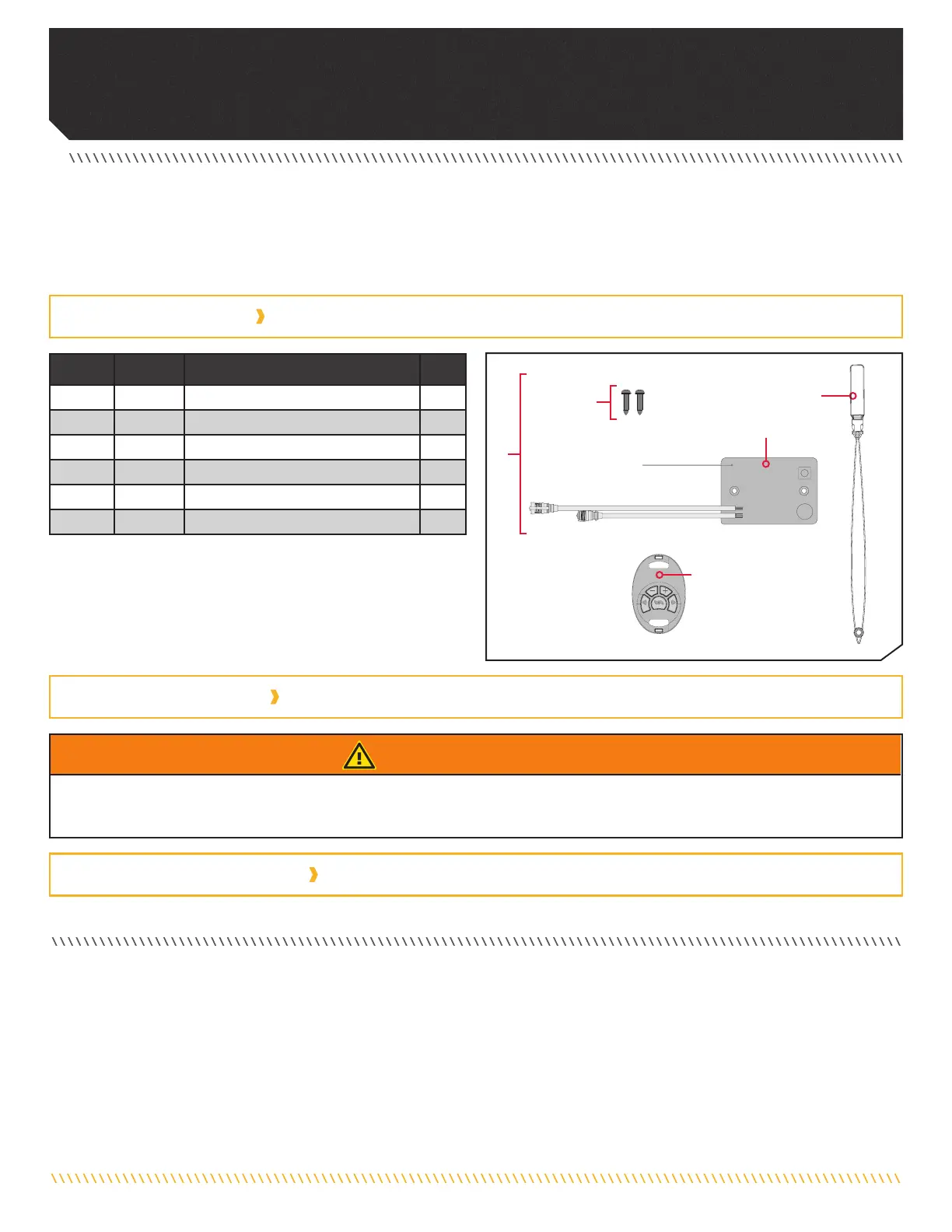

INSTALLATION PARTS LIST
• #2 Phillips Screw Driver • #3 Phillips Screw Driver
MOUNTING CONSIDERATIONS
TOOLS AND RESOURCES REQUIRED
WARNING
We recommend installing your CoPilot while the boat is on your trailer in a stable position. The motor should be secured and
disconnected from a power source before beginning installation.
1
2
B
3
✖ This part is included in an assembly and cannot be ordered individually.
p Not shown on Parts Diagram.
Item /
Assembly
Part # Description Qty.
A 2994112 CTRL BOARD V2 COPILOT RECEIVER 1
B 2994020 TRANSMTR, ASY, PD/AP COPLT (SUB) 1
1 2373418 SCREW-#8 X 5/8 PPHSMS S/S 2
2 2374092 CTRL BOARD V2 COPILOT RECEIVER 1
3
2390801 LANYARD, REMOTE 1
p
2377166 MANUAL - CO-PILOT POWERDRIVE 1
A
