Mitsubishi Electric HD-6000 User Manual

MODEL: HD-6000
Page 16
Purpose:
Measuring
Instrument
Test Point
Measuring
Range
Input Signal
Ext. Trigger
Input Terminal
Symptom:
Purpose:
Measuring
Instrument
Test Point
Measuring
Range
Input Signal
Ext. Trigger
Input Terminal
Symptom:
[Video Circuit]
1. Main-Y Gain
To set the main picture Y level
Incorrect analog source main picture brightness level.
Oscilloscope
TPY
------
-------
Color bars
External Input
1. Supply a Color Bar pattern with 100% white signal to an External Input. Select
the Color Bars as the source (Device button).
2. Connect a scope to TPY (Main Luminance).
3. Enter the Alignment Mode (MENU-2-4-5-7)
4. Select the MMTX function (AUDIO button).
5. Select adjust item #14 YDRM (VIDEO button).
6. Set the data so the waveform at TPY is 0.7 Vp-p ±0.03 Vp-p (ADJUST buttons).
7. Press “ENTER” to save data.
8. Press “MENU” twice to exit the service mode.

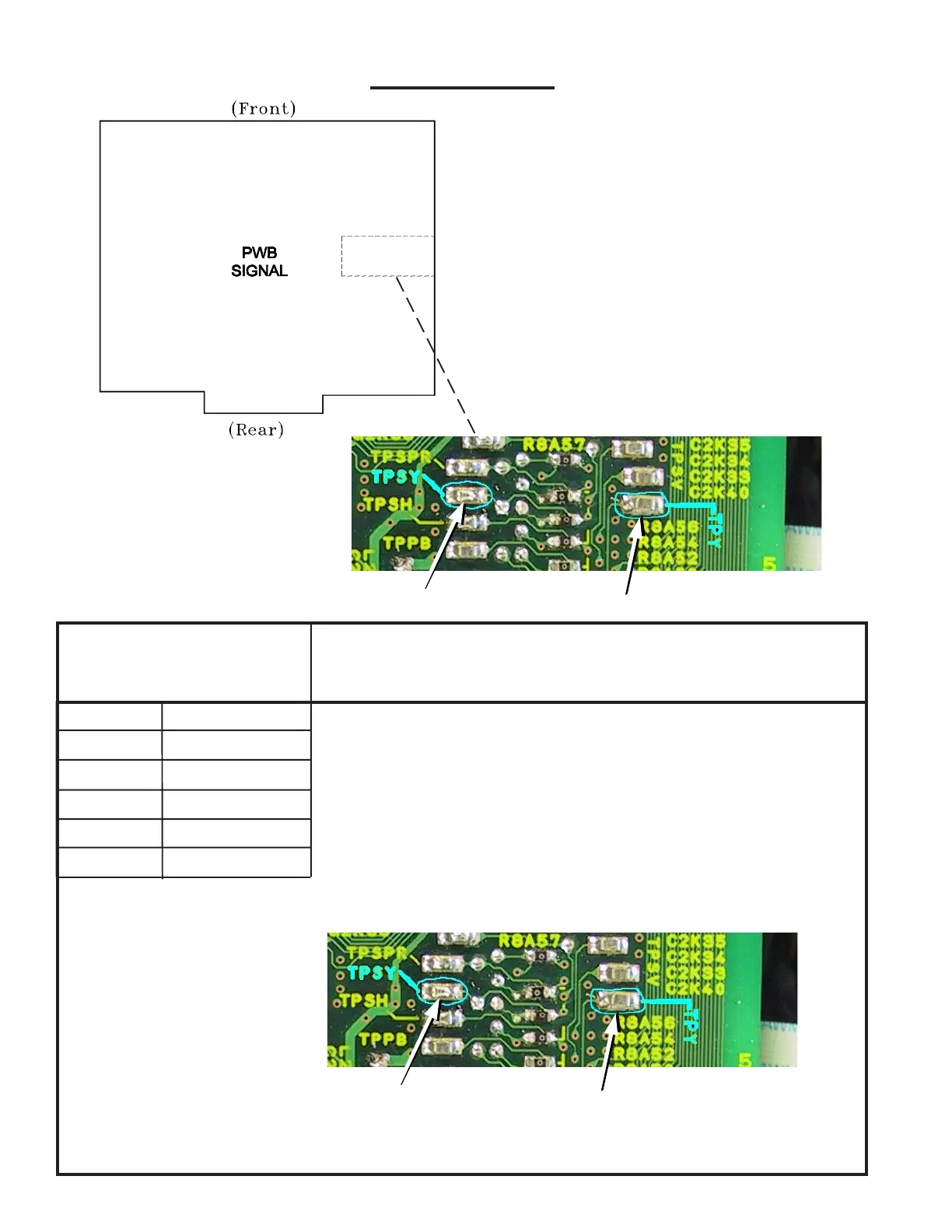

TEST POINTS
TPSY
TPY
PWB-SIGNAL (Partial)
TPSY
TPY
PWB-SIGNAL (Partial)
