9

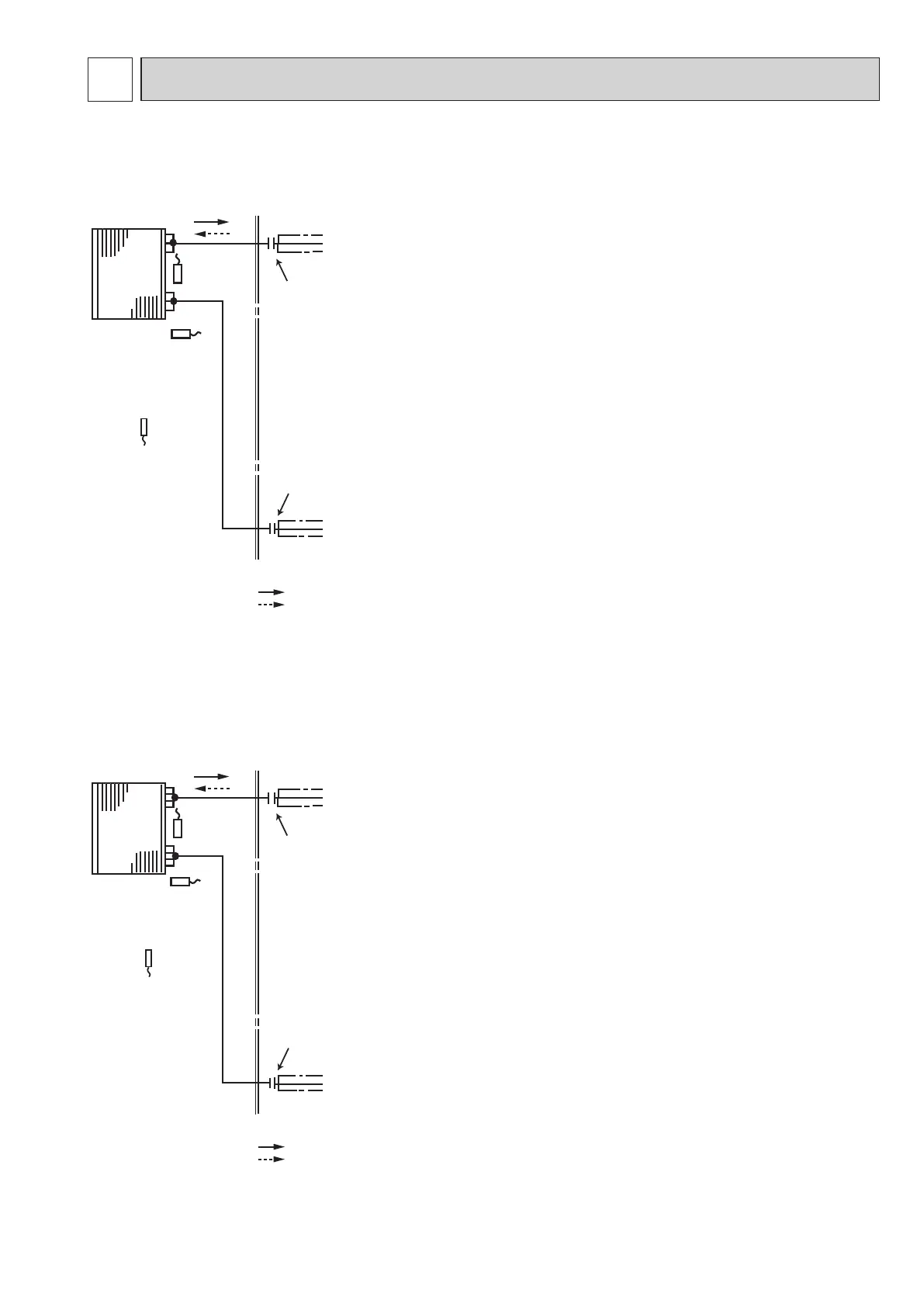

REFRIGERANT SYSTEM DIAGRAM
7
Unit: mm
MSZ-BT20VG MSZ-BT25VG
MSZ-BT20VGK MSZ-BT25VGK
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Flared connection
Refrigerant pipe ø9.52
(with heat insulator)
Refrigerant pipe ø6.35
(with heat insulator)
Indoor coil
thermistor
RT12
Indoor coil
thermistor
RT13
Refrigerant flow in cooling
Refrigerant flow in heating
MSZ-BT35VG MSZ-BT50VG
MSZ-BT35VGK MSZ-BT50VGK
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Flared connection
Refrigerant pipe ø6.35
(with heat insulator)
Indoor coil
thermistor
RT12
Refrigerant pipe ø 9.52 (MSZ-BT35VG/VGK)
ø12.7 (MSZ-BT50VG/VGK)
(with heat insulator)
Indoor coil
thermistor
RT13
Refrigerant flow in cooling
Refrigerant flow in heating
OBH849C
