89
-
(d) Installation procedure
1) Mount the duct for the air inlet grille to the indoor unit
using the 10 tapping screws provided. The tapping screws
on the drain pan receiver side are also used for mounting
the duct for the air inlet grille. They must first be removed
and reinstalled after the duct for the air inlet grille is in
place. A guideline for the height is to secure the assembly
so that the lower surface of the duct for the intake grille is
approximately 10 mm above the bottom surface of the
ceiling.
2) Remove the center screw for the air inlet grille and open
the grille as shown in the illustration. Next, insert the air
inlet grille into the duct for the air inlet grille and secure it
with the pan-head screws (the long screws).
3) Use the pan-head screws to make the small adjustments
in height. The height dimension on the installation dia-
gram allows for adjustment within range of 80 to 100 mm.
If the pan-head screws are completely tightened, the height
will be 80 mm.

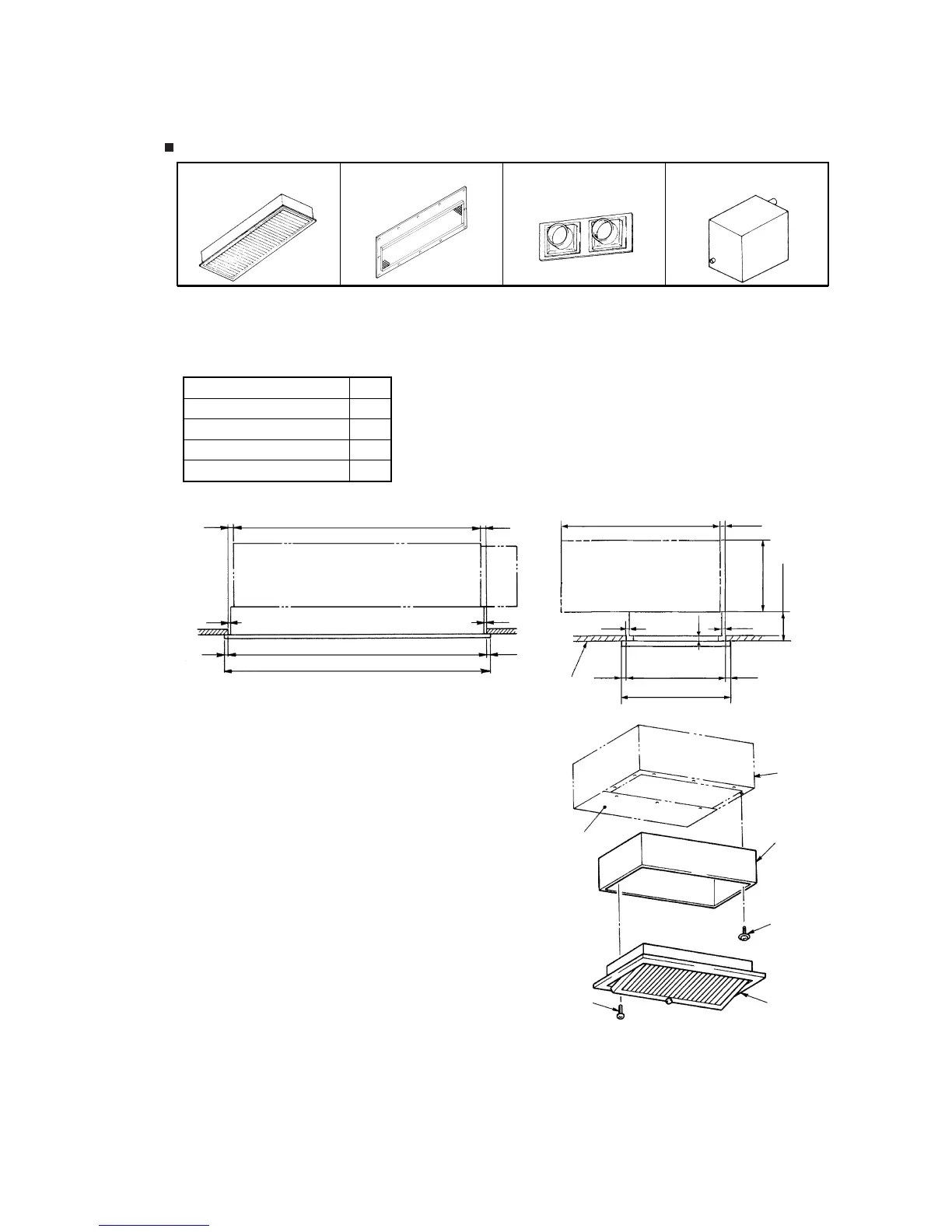

5.8 Installation of optional parts (Ducted type)
Table of optional parts
Bottom air inlet grille set
RTS12
1 Rear inlet filter set
RBF12
2 Duct joint for air outlet plate
RFJ22
3 Drain up kit
RDU12E
4
(1) Bottom air inlet grille set
(a) Part No.: RTS12
(b) Parts list
(c) Installation
Name Qty.
1
1
10
4
Air inlet grille
Duct for air inlet grille
Tapping screw
Pan-head screws
740
Indoor unit
762 (Ceiling opening dimensions)
782 (Panel dimensions)
11
2
10
11
2
10
258 (Ceiling opening dimensions)
278 (Ceiling opening dimensions)
11.5
455
Indoor unit
Ceiling surface
2
10
2
10
230
(10)
Air outlet side
80 ~ 100
To Next Page
