–8–
Transmission procedure
When each button on the remote control is pressed – with the remote control pointing towards the air-conditioner unit, a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.
OPERATION MODE select button
Each time the button is pressed, the
mode changes.
Page 9,11

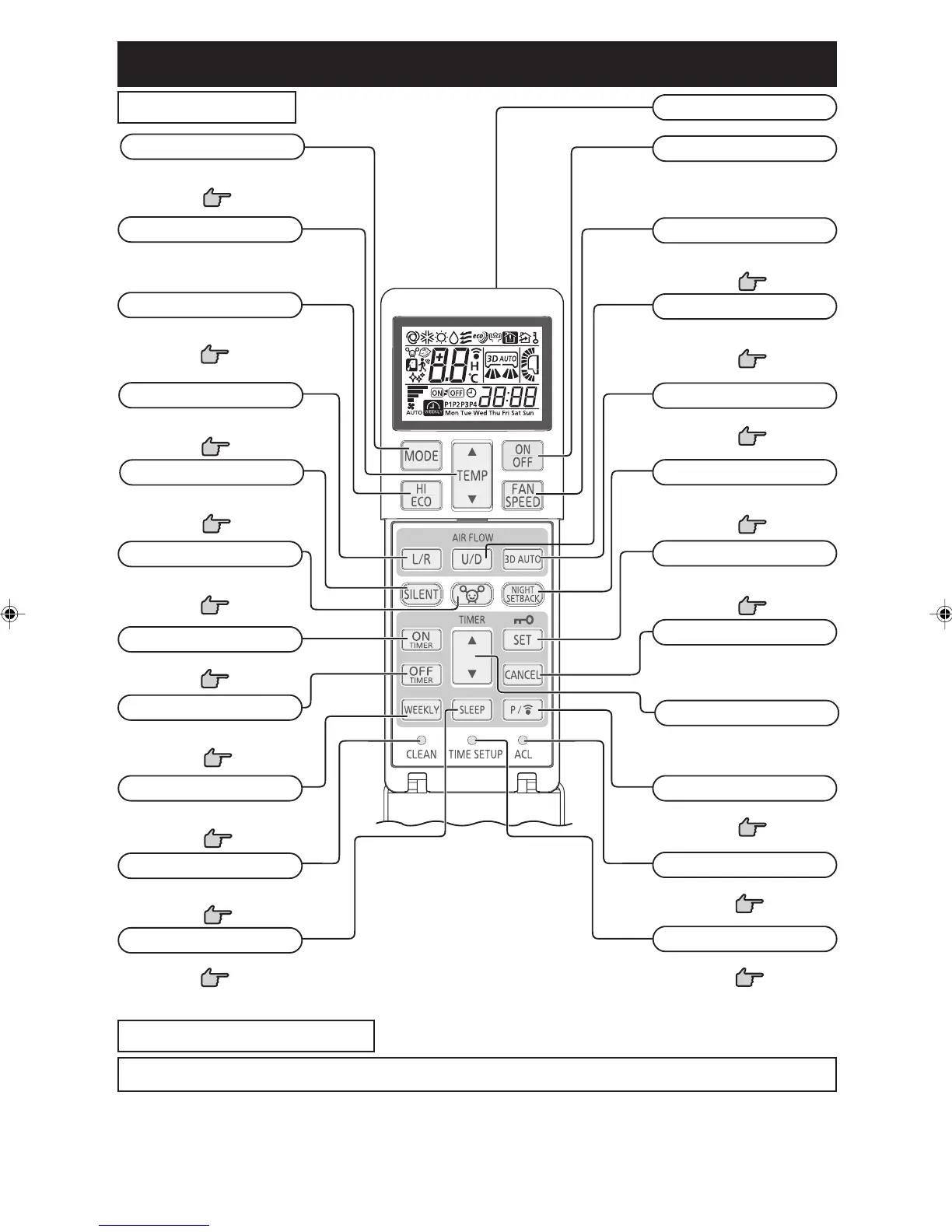

• The above illustration shows all controls, but in
practice only the relevant parts are shown.
ALLERGEN CLEAR button
This button selects ALLERGEN CLEAR
operation.
Page 15
ON/OFF (luminous) button
Press to start operation, press again to
stop.
TEMPERATURE button
This button sets the room temperature.
AIR FLOW (UP/DOWN) button
This button changes the air flow (up/
down) direction.
Page 12
TIME SET UP switch
This switch is for setting the time.
Page 9
SLEEP button
This button selects SLEEP operation.
Page 13
CLEAN switch
This switch selects the CLEAN
operation.
Page 22
ON TIMER button
This button selects ON TIMER operation.
Page 14
TIMER button
This buttions is used for setting the cur-
rent time and timer function.
ACL switch
Switch for resetting microcomputer.
Page 6
PROGRAM button
This button sets WEEKLY TIMER.
Page 16
Operation and display section for remote control
Operation section
HI/ECO button
This button changes the HIGH POWER/
ECONOMY operation.
Page 20
AIR FLOW (LEFT/RIGHT) button
This button changes the air flow (left/
right) direction.
Page 12
SILENT button
This buttion changes the SILENT
operation.
Page 21
OFF TIMER button
This button selects OFF TIMER
operation.
Page 13
WEEKLY button
This button switches the WEEKLY
TIMER to ON/OFF.
Page 16
FAN SPEED button
Each time the button is pressed, the fan
speed changes.
Page 10
3D AUTO button
This button sets 3D AUTO operation.
Page 12
NIGHT SETBACK button
This button sets NIGHT SETBACK
operation.
Page 21
SET/Child Lock button
Use this button to set the timer and
Child Lock.
Page 7
CANCEL button
This button cancels the ON timer, OFF
timer, and SLEEP operation.
Transmission section
RLA012A021B_EN_001-030 7/18/13, 14:498
