–10–
AUTO HIMEDLOULO

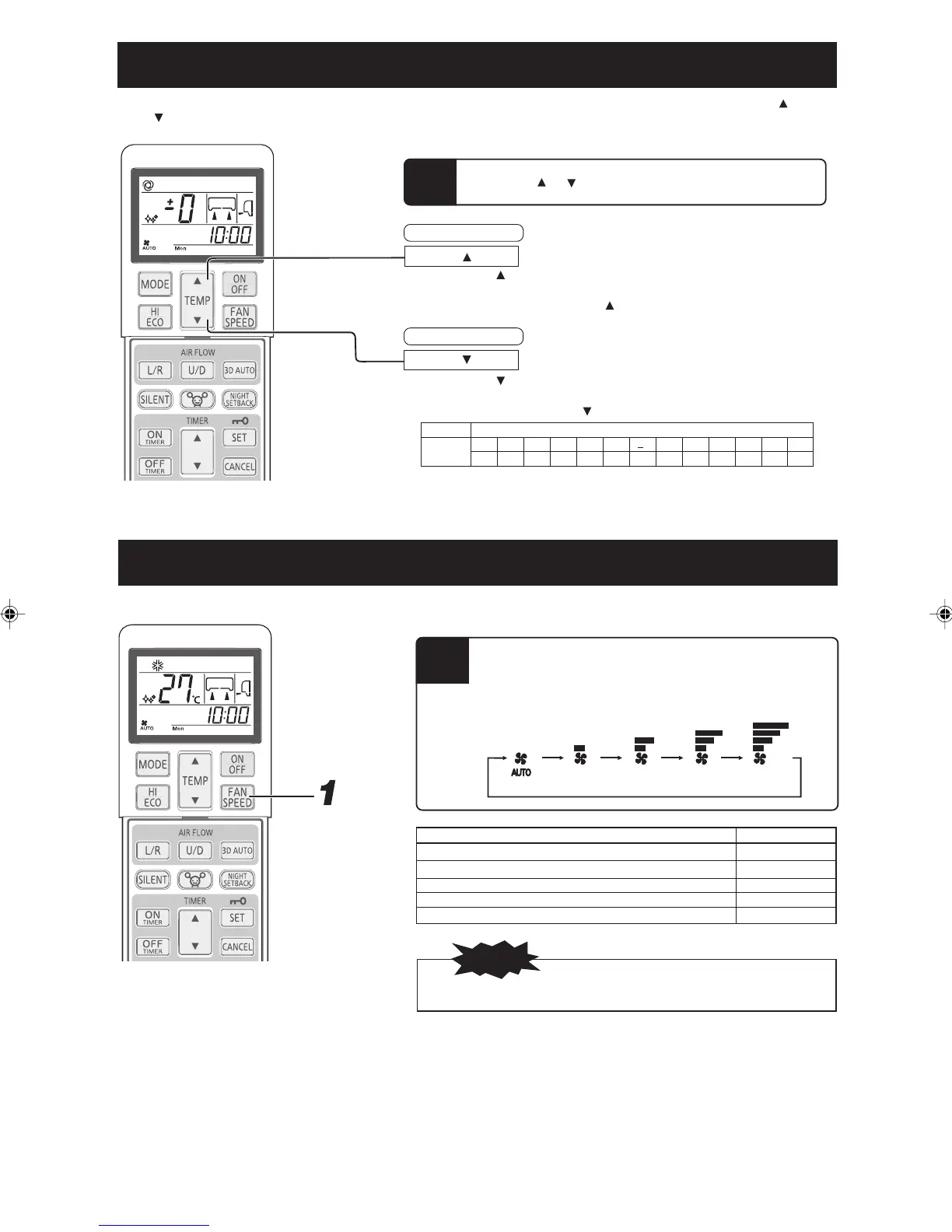

Temperature adjustment during AUTO
■ Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or
the
button.During automatic operation, 24°C is preset both for heating and cooling.
1
When a change in temperature is required.
Press the“ or (TEMP)” button.
■ Each time the button is pressed, the switch over occurs in the following order
–6 → –5 → ............ –1 → ±0 → +1 ............ +6.
When +6 is indicated, even if the button is pressed, the indicator does not
change.
■ Each time the button is pressed, the switch over occurs in the following order
+6 → +5 → ............ +1 → ±0 → –1 ............ –6.
When –6 is indicated, even if the button is pressed, the indicator does not change.
When it is a little cold
Press the
button.
When it is a little hot
Press the
button.
FAN SPEED
■ You can choose the capacity of your air-conditioner when heating mode, cooling mode or fan mode.
Remote Control display
-6 -5 -4 -3 -2 -1
+
0+1 +2+3 +4+5+6
18 19 20 21 22 23 24 25 26 27 28 29 30
Setting
temp.(°
C )
Point the remote control toward the air-conditioner, and
Press the FAN SPEED button.
Each time the button is pressed, the fan speed changes.
1
• When FANSPEED is changed from HI to LO or ULO, the sound of re-
frigerant flowing may be heard.
NOTE
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Silent operation ULO
Energy-saving operation LO
Standard operation MED
Powerful operation with high capacity HI
RLA012A021B_EN_001-030 7/18/13, 14:4910
