F9Q ENGINE -
Oil Separator and Oil Return Pipe
11A-5-1

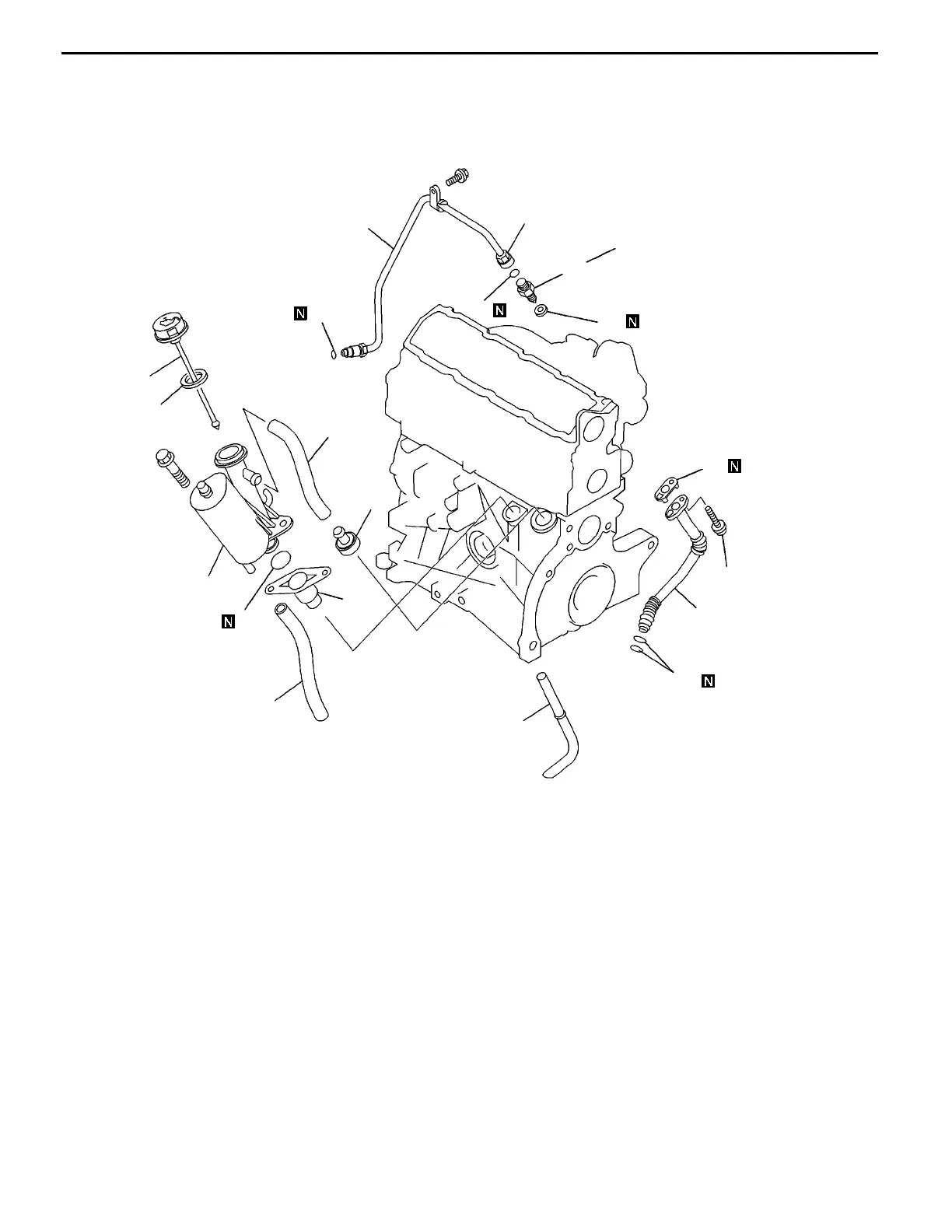

5. OIL SEPARATOR AND OIL RETURN PIPE
REMOVAL AND INSTALLATION
26
±
2Nm
1
3
4
2
9
5
6
7
11
12
13
10
14
15
13
24
±
10 Nm
12
±
1Nm
REN0173
8
16
Removal steps
1. Oil dipstick
2. Oil dipstick seal
3. Oil separator hose
4. Oil separator return hose
5. Oil separator
6. O-ring
7. Oil separator holding ring
8. Engine breather pipe
9. Oil return pipe
10. Oil return pipe gasket
11. O-ring
12. Turbocharger oil feed pipe
13. O-ring
14. Turbo nipple
15. Gasket
16. Oil separator return pipe
PWEE0001
