F9Q ENGINE – Injection Pump and Fuel Injector
11A-6-1

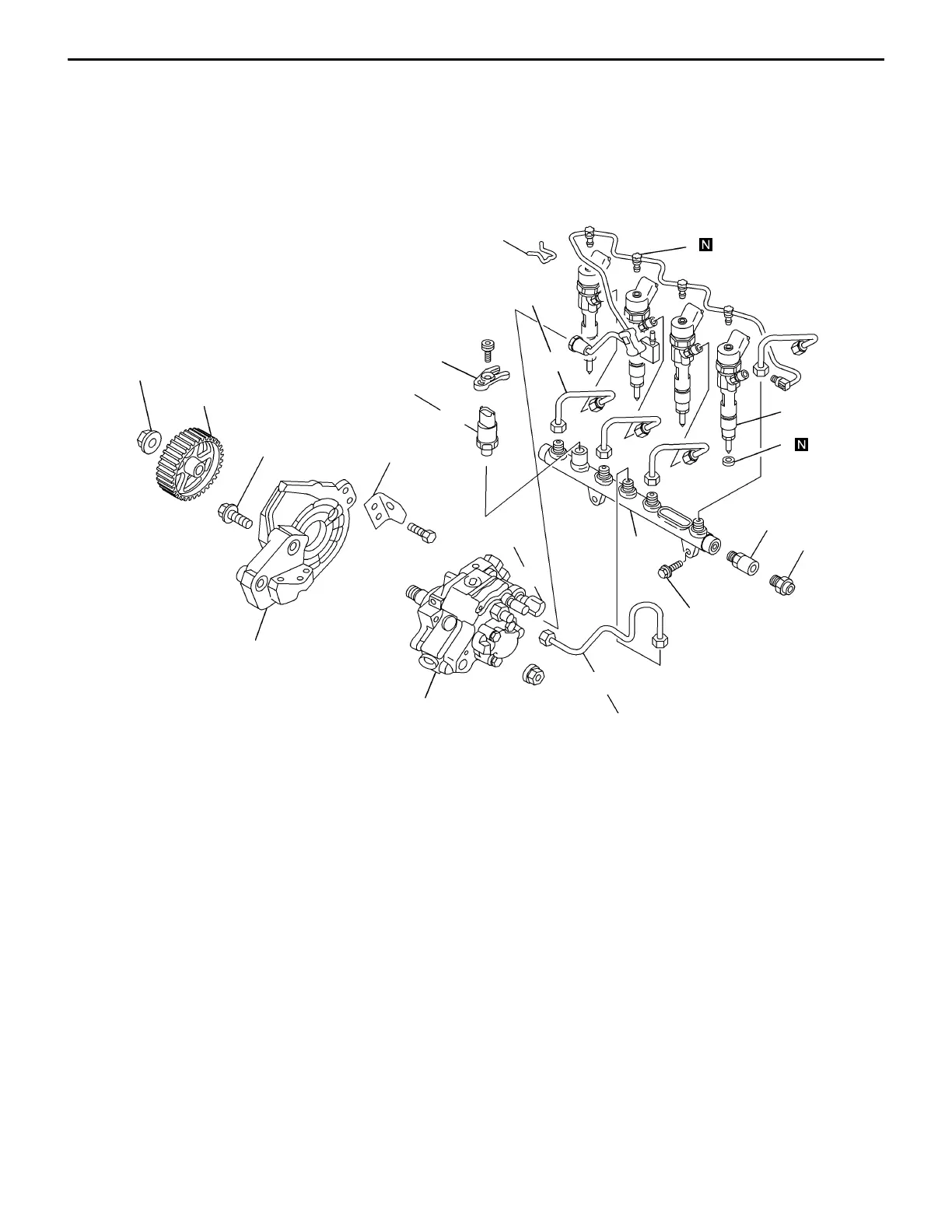

6. INJECTION PUMP AND FUEL INJECTOR
REMOVAL AND INSTALLATION
6
REN0174
2
3
4
1
8
5
7
10
11
12
9
13
14
15
16
15 ± 1 Nm
) 60_ ± 10_
62 ± 6 Nm
35 ± 5 Nm
25 ± 2 Nm
25 ± 2 Nm
25 ± 0.2 Nm
25 ± 2 Nm
Removal steps
1. Clip
2. Fuel return ramp
"BA 3. High pressure pipe
4. Fuel injector flange
5. Fuel injector
6. Adjusting washer
7. Pressure sensor
"BA 8. High pressure pipe
9. Pressure limiter
10. Pressure limiter nipple
"BA 11. Fuel injection rail
AA""AA 12. Injection pump sprocket
13. Engine hanger
14. Pressure regulator
15. Injection pump
16. Injection pump bracket
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
PWEE0001-A
E
Mar. 2001Mitsubishi Motors Corporation Revised
