F9Q ENGINE -
Water Pump and Water Pipe
11A-9-1
9. WATER PUMP AND WATER PIPE
REMOVAL AND INSTALLATION
REN0181
2
4
1
8
5
7
10
12
14
10
±
1Nm
15
39
±
3Nm
11
13
6
9
3

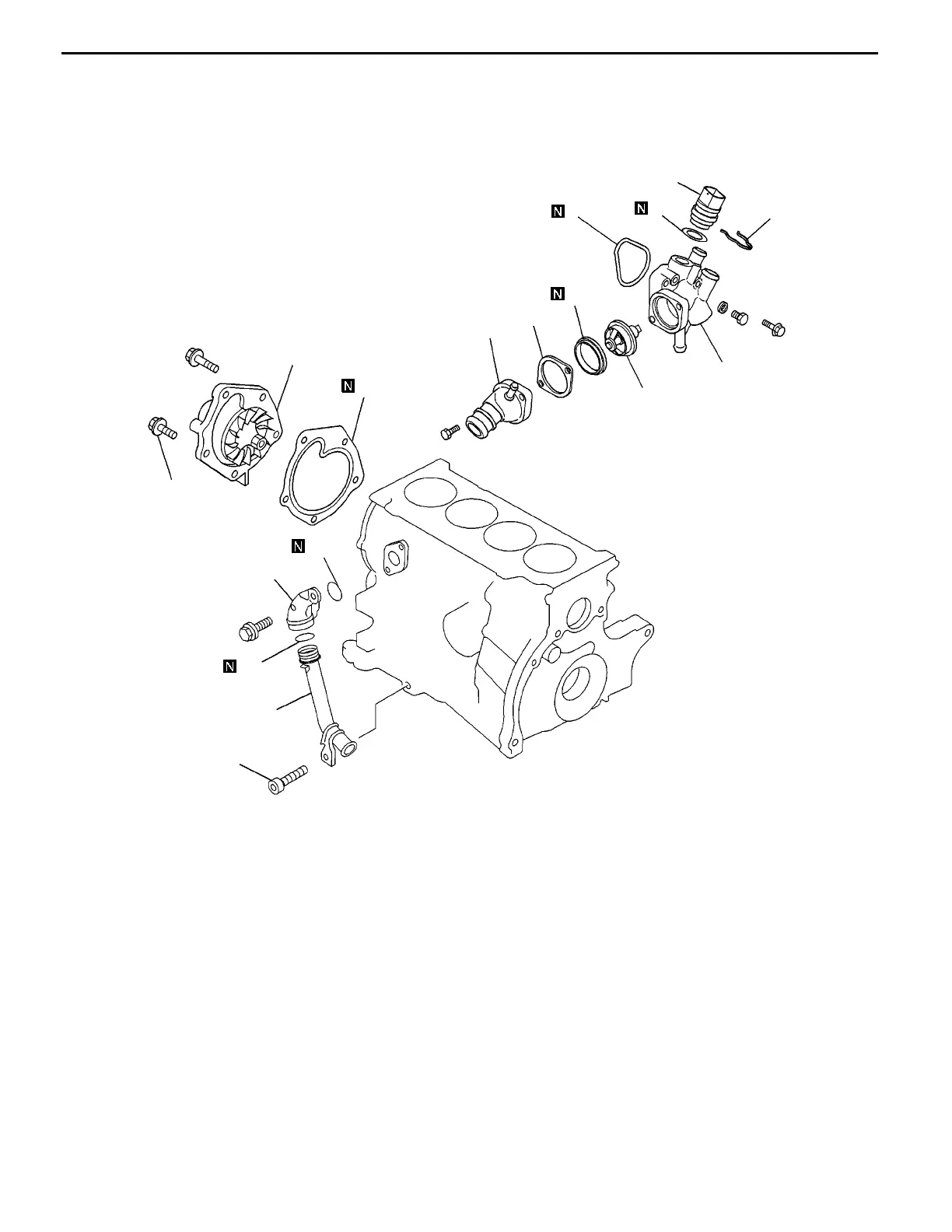

Removal steps
1. Clip
2. Engine coolant temperature sensor
3. Gasket
4. Thermostat case cover
5. Reinforcement
6. Thermostat case cover gasket
7. Thermostat
8. Thermostat case
9. Thermostat case gasket
10. Cooling water line pipe
11. O-ring
12. Cooling water line pipe
13. O-ring
14. Water pump
15. Water pump gasket
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
