F9Q ENGINE -
Cylinder Block
11A-14-1
14. CYLINDER BLOCK

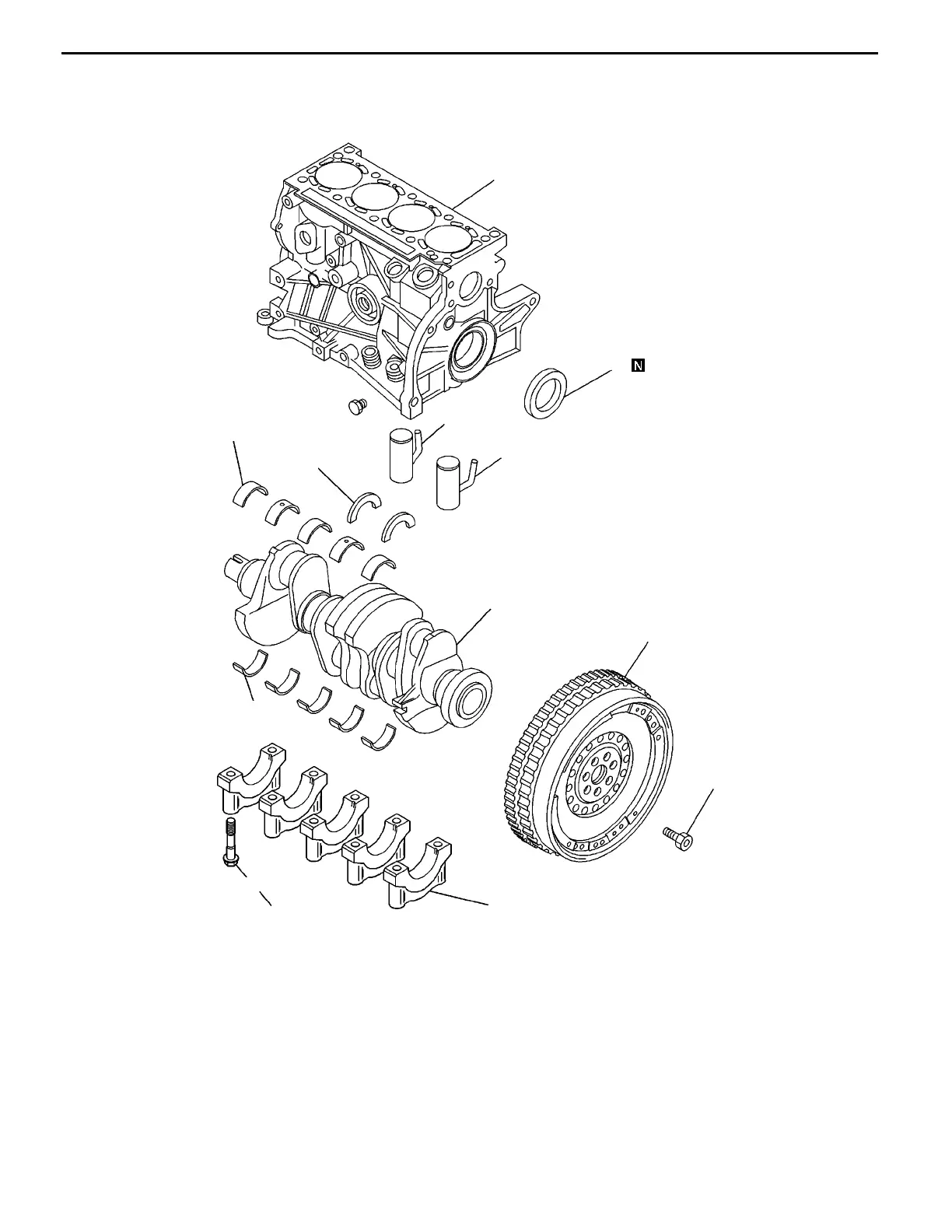

REMOVAL AND INSTALLATION
REN0202
2
3
4
1
8
5
7
9
10
11
65
±
6Nm
55
±
5Nm
6
Removal steps
A
A
""
D
A
1. Flywheel
"
C
A
2. Oil seal
3. Bolt
"
B
A
4. Bearing cap
"
A
A
5. Crankshaft bearing, lower
6. Crankshaft
"
A
A
7. Crankshaft bearing, upper
"
A
A
8. Thrust bearing
9. Oil jet
10. Oil jet
11. Cylinder block
PWEE0001
E
Jun. 2000Mitsubishi Motors Corporation
