Mitsubishi FX3G Series Programming Manual

763
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
35 SFC Program and Step Ladder
35.1 SFC Program
31
FNC276-FNC279 Data Transfer 3
32
FNC280-FNC289 High-Speed Processing 2
33
FNC290-FNC299 Extension File Register
34
FNC300-FNC305 FX
3U
-CF-ADP
35
SFC•STL Programming
36
Interrupt Function
37
Special Device
38
Error Code
A
Version Up Information
B
Execution Times

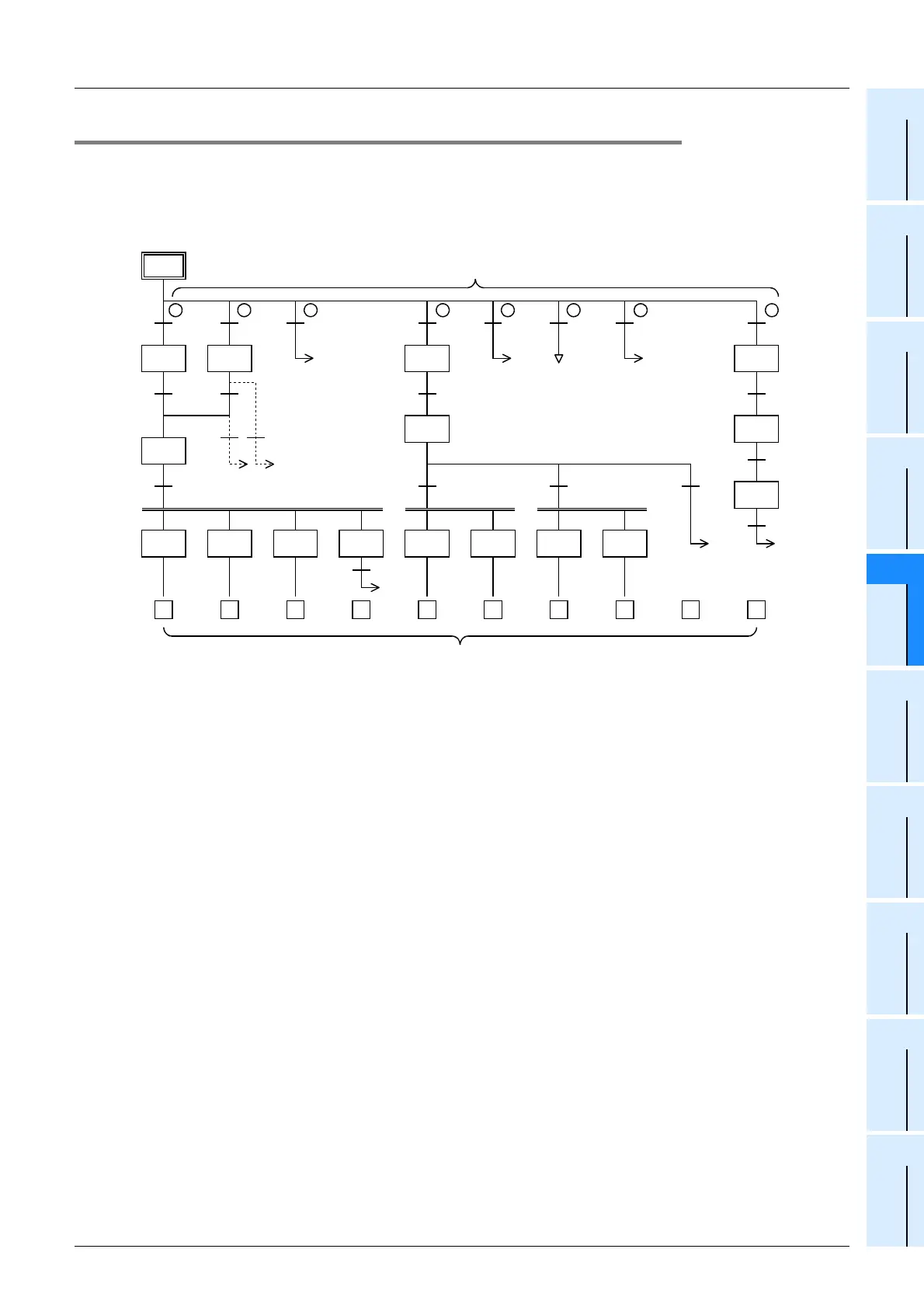

35.1.10 Rule for creating branch circuit
Limitation in the number of branch circuits
In one parallel branch or selective branch, up to eight circuits can be provided.
When there are many parallel branches and selective branches, however, the total number of circuits per initial state is
limited to 16 or less.
It is not permitted to execute transfer or reset from a recombination line or state relay before recombination to a branch
state relay.
Make sure to provide a dummy state, then execute transfer or reset from a branch line to a separate state relay.
43
1
1 2 5 6 7 8 9 16
(Note)
8 circuits or less in 1 (parallel or selective) branch
16 circuits or less in total
23 4567 8
......
