Replacing the lamp (continued)

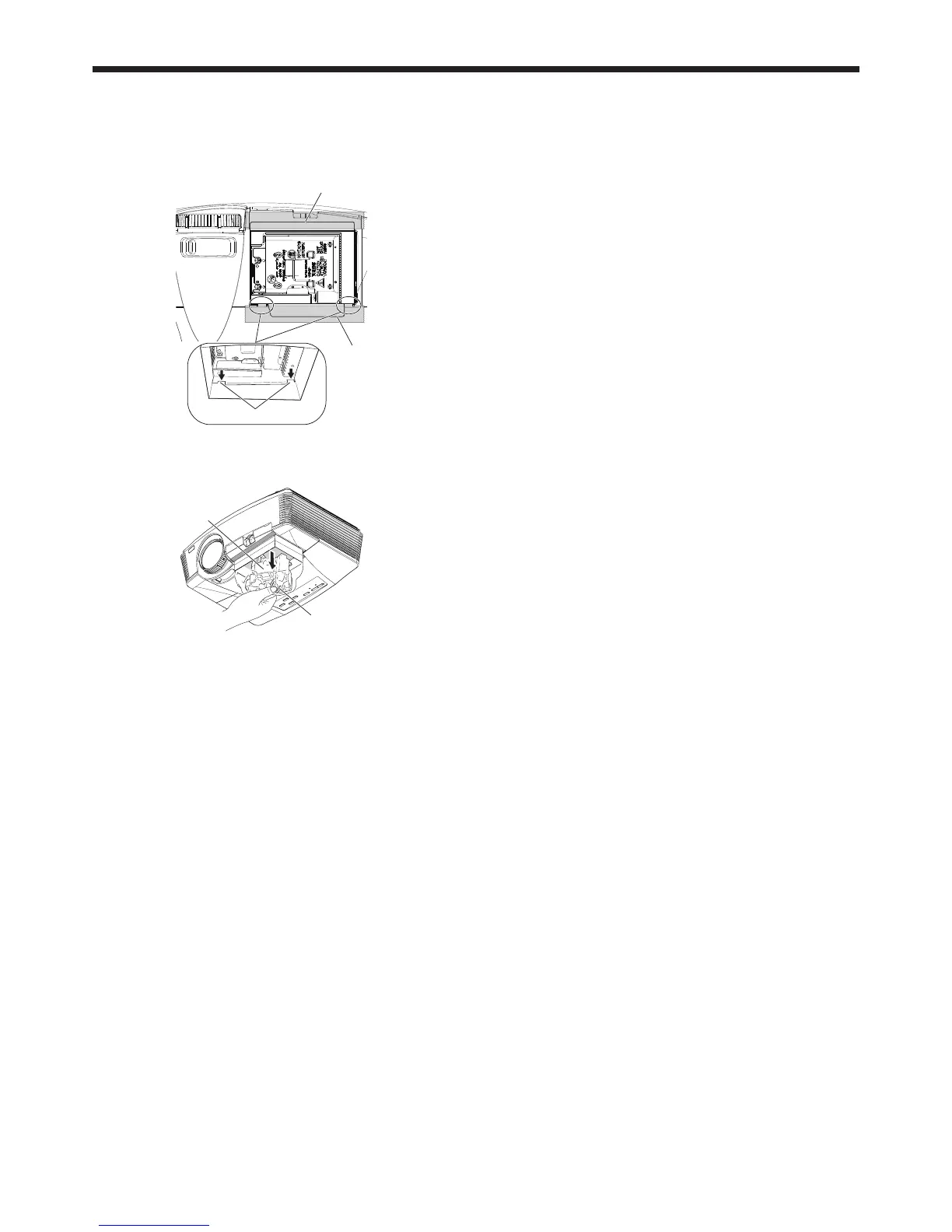

Insert the two cutout portions (h) in the slit of
the projector, paste the two taping portions (g)
with the tape included in the Lamp Replacement
Attachment, and then fix the Lamp Replacement
Attachment to the projector.
(g)
(h)
(g)
Pull out the lamp unit (f) in the bag by the handle
(e).
(f)
(e)
Remove the tape fixing the Lame Replacement
Attachment, and remove the Lamp Replacement
Attachment with the lamp unit remaining in the bag.
Caution:
Pull the lamp unit out of the projector slowly.
If it is pulled out quickly, the lamp may break,
scattering glass fragments.
Do not spill liquid on the removed lamp unit or do
not place it near any flammable object or where
children can reach to prevent injuries or fire.
Insert the new lamp unit, and secure it with two
screws firmly.
Secure the lamp cover with screw (b) back again,
and mount the cover (a).
Caution:
Make sure that the lamp cover is secured firmly.
Otherwise, the POWER indicator flashes red and
green, disallowing the projector to be powered
on.
4.
5.
6.
•
•
7.
8.
•
Reset of the lamp operation time
Plug in the power cord, and reset the lamp operation
time by keep pressing the t, u, and POWER buttons
on the control panel at the same time.
Important:
Unless these 3 buttons are
held down at the same
time, the lamp operation time isn’t reset.
Make sure that the STATUS indicator blinks twice
and the lamp operation time is reset successfully.
The projector doesn’t turn on if the lamp cover isn’t
attached securely.
Be sure to reset the lamp operation time whenever
you replace the lamp.
Do not reset the lamp operation time unless you
replace the lamp.
The lamp is fragile. If it is broken, be careful not to
cut yourself with glass fragments.
Caution:
This projector uses a lamp that
contains mercury. Disposal of the lamp
or the projector with the lamp may
be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org. (For the U.S.
only.)
•
•
•
•
•
•
•

Mitsubishi HC3800 Specifications

General

Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	4000:1
Screen size compatibility	50 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-15 - 15 °
Focus	Manual
Focal length range	20.6 - 30.1 mm
Lamp power	230 W
Light source type	Lamp
Lamp power (economic mode)	190 W
Service life of light source	5000 h
Noise level	31 dB
Plug and Play	Yes
Dot clock scanning frequency	170 MHz
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Built-in speaker(s)	No
Audio (L/R) in	2
Serial interface type	RS-232
USB 2.0 ports quantity	0
S-Video inputs quantity	1
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	340 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black

Weight and Dimensions

Depth	270 mm
Width	345 mm
Height	129 mm
Weight	3500 g
