Mitsubishi HC3800 User Manual

EN-45

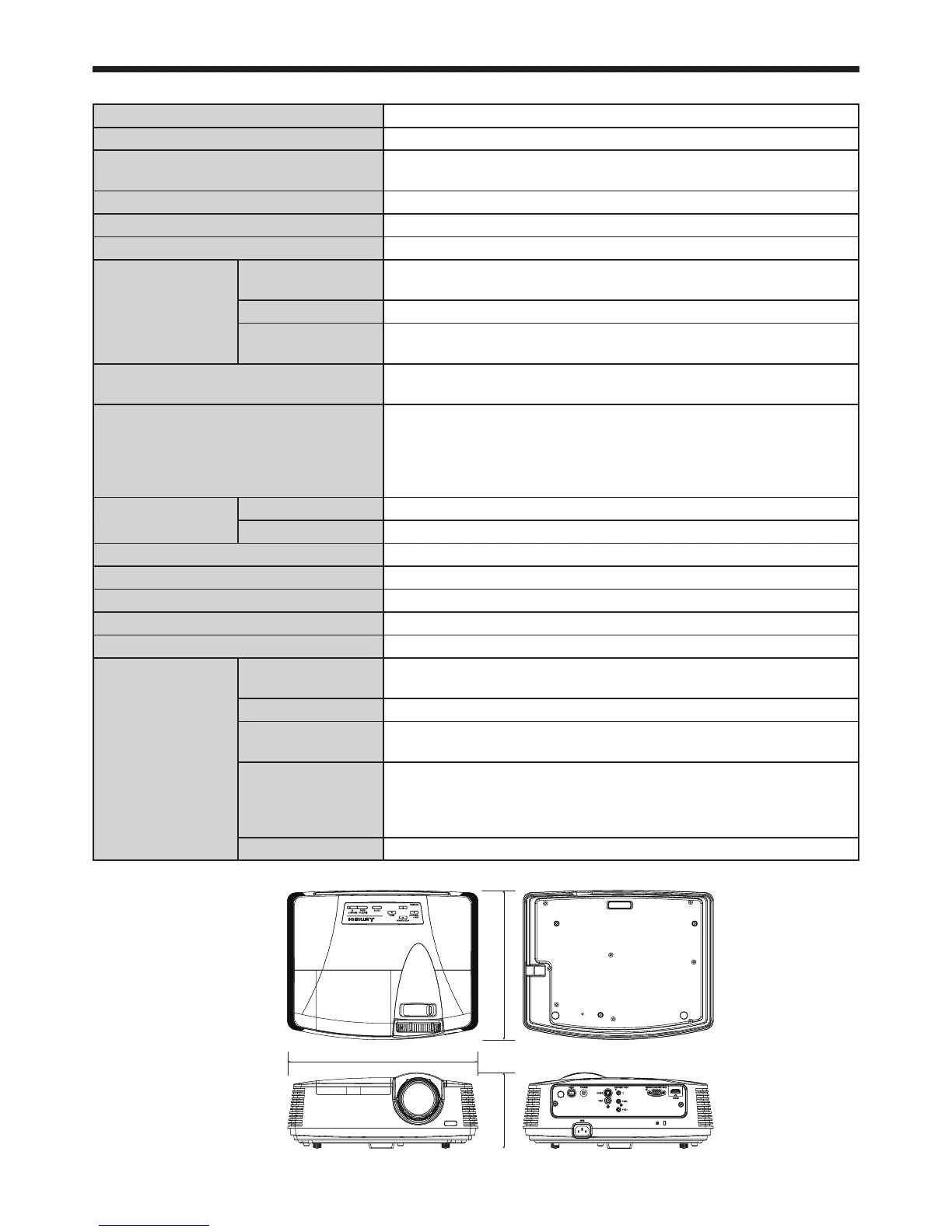

Specifications
The specifications and outside appearance of the projector are subject to change without prior notice.
Type DLP
TM
projector
Model HC3800
Display technology 0.65-inch single chip DMD (aspect ratio 16:9)
Pixel: 1920 x 1080 = 2073600 pixels
Projection lens F 3.0 - 3.5 f= 20.6 - 30.1 mm
Light-source lamp 230 W
Image size (projection distance) 50” min. to 300” max. (projection distance 1.5 to 9.3 m (Wide))
Maximum
resolution
Computer signal Maximum resolution: 1600 x 1200 dots
Panel resolution: 1920 x 1080 dots
Video signal NTSC/PAL/SECAM/4.43NTSC/PAL-M/PAL-N/PAL-60
Component signal 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Panel resolution: 1920 x 1080 dots
Computer input [Signal type] [Terminal type] [Line]
Analog RGB Mini D-SUB 15-pin 1
Video input [Signal type] [Terminal type] [Line]
HDMI HDMI 1
Video input RCA 1
S-video input S 1
Component video input RCA x3 (YC
B
C
R
/YP
B
P
R
) 1
Control terminal/
others
SERIAL RS-232C (Mini DIN 8-pin)
TRIGGER DC 12 V, max. 200 mA (stereo mini jack)
Operating temperatures +41°F (+5°C) to +95°F (+35°C)
Rated voltage AC100 - 240 V, 50/60 Hz
Power consumption 3.3 A
Dimensions 345 mm (W) x 129 mm (H) x 270 mm (D) * Not including protrusion.
Weight 3.5 kg
Others S-video input Luminance signal: Vp-p=1.0 V 75 (negative sync)
Chrominance signals: Vp-p=0.286 V 75 (burst signal)
Video input Vp-p=1.0 V 75 (negative sync)
Component video
input
YC
B
C
R
: Vp-p=1.0 V 75 (Y) (negative sync)
Vp-p=0.7 V 75 (C
B
, C
R
)
Analog input RGB: Vp-p=0.7 V 75 (negative sync)
YC
B
C
R
: Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V (C
B
, C
R
)
HD/CS: TTL-level (negative or positive polarity)
VD: TTL-level (negative or positive polarity)
Digital input (HDMI) HDMI interface (TMDS single link)
Dimension drawings
(unit: mm)
345
270129
345
270129

Mitsubishi HC3800 Specifications

General

Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	4000:1
Screen size compatibility	50 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-15 - 15 °
Focus	Manual
Focal length range	20.6 - 30.1 mm
Lamp power	230 W
Light source type	Lamp
Lamp power (economic mode)	190 W
Service life of light source	5000 h
Noise level	31 dB
Plug and Play	Yes
Dot clock scanning frequency	170 MHz
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Built-in speaker(s)	No
Audio (L/R) in	2
Serial interface type	RS-232
USB 2.0 ports quantity	0
S-Video inputs quantity	1
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	340 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black

Weight and Dimensions

Depth	270 mm
Width	345 mm
Height	129 mm
Weight	3500 g
