AC210668
Cooling fan
motor
connector:
Component side
Cooling fan motor
AB
THERMOSTAT
ENGINE COOLING
14-18
2. Remove the cooling fan motor connector.
WARNING
Stay clear of the fan when the fan starts run-
ning.
3. Check to see that the fan motor of the radiator
turns when applying battery power between the
connector terminals of the cooling fan motor. Also
check to see that there is no abnormal sound
coming from the cooling fan motor at this time.
4. If the cooling fan motor is defective, replace it.
5. Install the centre under cover (Refer to GROUP
51, Front Bumper
P.51-2).

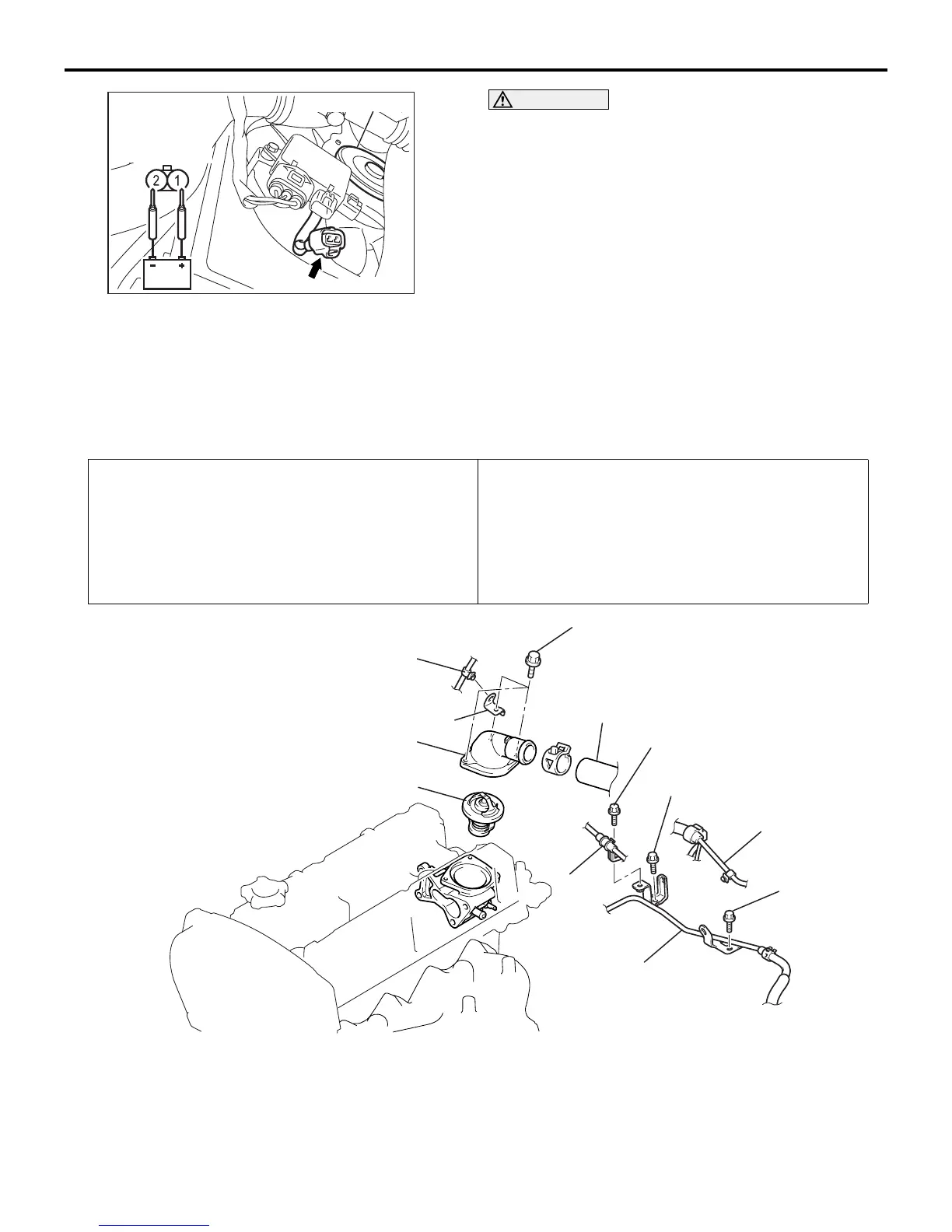

THERMOSTAT
REMOVAL AND INSTALLATION
M1141002400884
Pre-removal Operation
• Under Cover Removal (Refer to GROUP 51, Front
Bumper
P.51-2).
• Engine Coolant Draining (Refer to P.14-15).
• Intake Air Duct Removal (Refer to GROUP 15, Air
Cleaner
P.15-5).
• Air Hose E, Air Pipe C and Air Hose D Removal (Refer to
GROUP 15, Intercooler
P.15-6).
Post-installation Operation
• Air Hose E, Air Pipe C and Air Hose D Installation (Refer
to GROUP 15, Intercooler
P.15-6).
• Intake Air Duct Installation (Refer to GROUP 15, Air
Cleaner
P.15-5).
• Engine Coolant Refilling (Refer to P.14-15).
• Under Cover Installation (Refer to GROUP 51, Front
Bumper
P.51-2).
AC504958
1
8
7
4
3
2
AB
11 ± 1 N·m
5.0 ± 1.0 N·m
10 ± 1 N·m
5
6
11 ± 1 N·m
Removal steps
1. Accelerator cable connection <LH
drive vehicles>
2. Control wiring harness connection
3. Vacuum hose and pipe assembly
<<
A
>> >>
B
<<
4. Radiator upper hose connection
5. Wiring harness clamp
Removal steps (Continued)
To Next Page
