Mitsubishi Lancer Evolution IX 2006 User Manual

WATER HOSE AND WATER PIPE
ENGINE COOLING
14-22
WATER HOSE AND WATER PIPE
REMOVAL AND INSTALLATION
M1141003301076
Pre-removal Operation
• Under Cover Removal (Refer to GROUP 51, Front
Bumper
P.51-2).
• Engine Coolant Draining (Refer to P.14-15).
• Battery and Battery Tray Removal
• Air Cleaner Assembly Removal (Refer to GROUP 15, Air
Cleaner
P.15-5).
• Turbocharger Bypass Valve Assembly, Air By-pass Hose,
Air Hose E, Air Pipe C and Air Hose D Removal (Refer to
GROUP 15, Intercooler
P.15-6).
• Thermostat Removal (Refer to P.14-18).
Post-installation Operation
• Thermostat Installation (Refer to P.14-18).
• Turbocharger Bypass Valve Assembly, Air By-pass Hose,
Air Hose E, Air Pipe C and Air Hose D Installation (Refer
to GROUP 15, Intercooler
P.15-6).
• Air Cleaner Assembly Installation (Refer to GROUP 15,
Air Cleaner
P.15-5).
• Battery and Battery Tray Installation
• Engine Coolant Refilling (Refer to P.14-15).
• Under Cover Installation (Refer to GROUP 51, Front
Bumper
P.51-2).

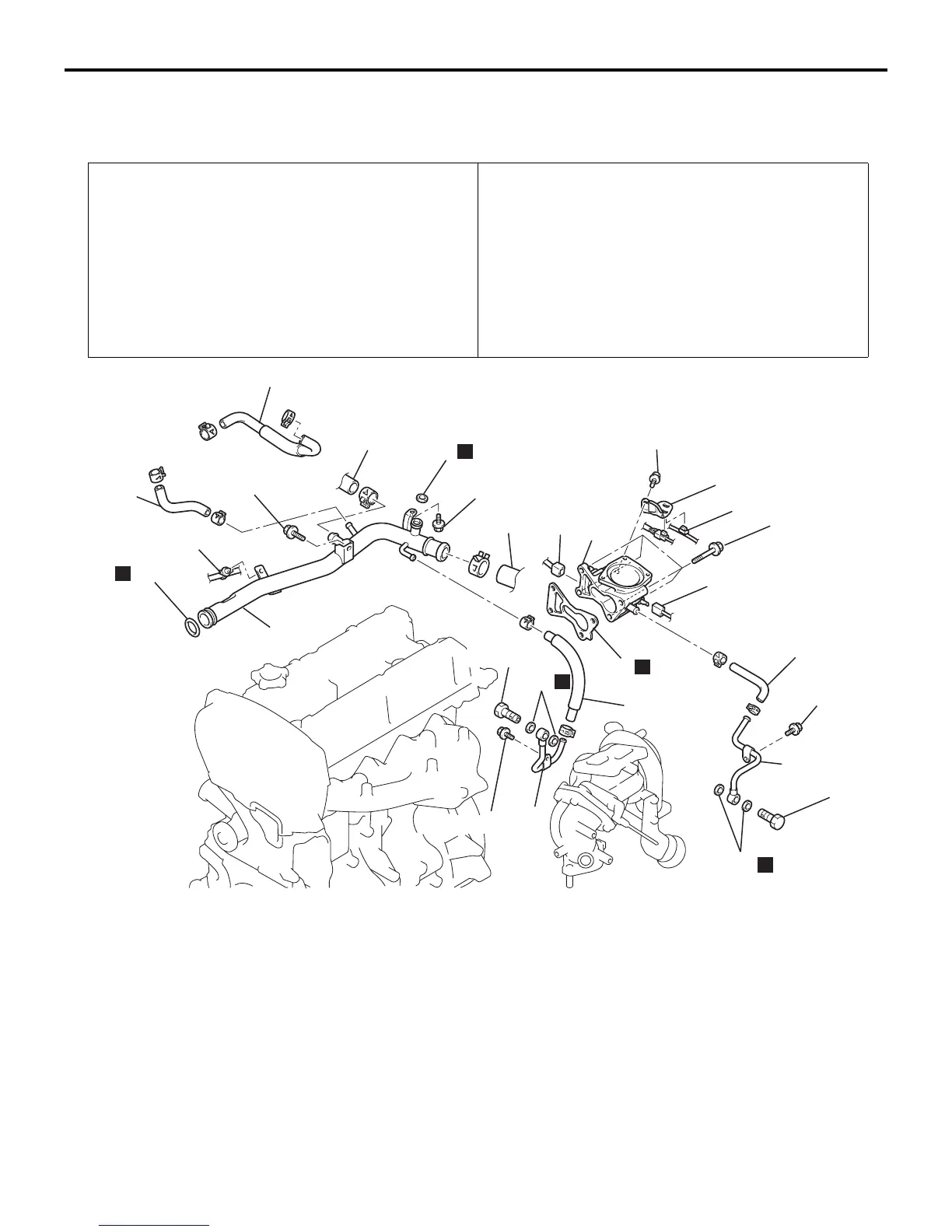

AC504959
11 ± 1 N·m
23 ± 4 N·m
10 ± 1 N·m
42 ± 7 N·m
13 ± 2 N·m
AB
15
14
13
12
11
9
7
5
3
4
6
8
1
20
19
18
16
17
N
N
N
10 ± 1 N·m
42 ± 7 N·m
5.0 ± 1.0 N·m
10
2
N
N
Removal steps
1. Wiring harness clamp
2. Harness bracket
3. Engine coolant temperature gauge
unit connector
4. Engine coolant temperature
sensor connector
5. Water feed hose
6. Thermostat case assembly
7. Thermostat case gasket
<< A >> >> C <<
8. Radiator lower hose connection
9. Detonation sensor connection
>> A <<
10. O-ring
11. Water feed hose
12. Water return hose
13. Heater hose connection
14. Water return hose
>> B <<
15. Water inlet pipe
>> A <<
16. O-ring
17. Turbocharger water feed pipe
18. Gaskets
•
Turbocharger and exhaust fitting
assembly (Refer to GROUP 15,
Exhaust Manifold and
Turbocharger
P.15-10).
19. Turbocharger water return pipe
20. Gaskets
Removal steps (Continued)
