RADIATOR
ENGINE COOLING
14-24
RADIATOR
REMOVAL AND INSTALLATION
M1141001501193
Pre-removal Operation
• Under Cover Removal (Refer to GROUP 51, Front
Bumper
P.51-2).
• Engine Coolant Draining (Refer to P.14-15).
• Battery and Battery Tray Removal
• Air Cleaner Assembly Removal (Refer to GROUP 15, Air
Cleaner
P.15-5).
• Air Hose E, Air Pipe C and Air Hose D Removal (Refer to
GROUP 15, Intercooler
P.15-6).
Post-installation Operation
• Air Hose E, Air Pipe C and Air Hose D Installation (Refer
to GROUP 15, Intercooler
P.15-6).
• Air Cleaner Assembly Installation (Refer to GROUP 15,
Air Cleaner
P.15-5).
• Battery and Battery Tray Installation
• Engine Coolant Refilling (Refer to P.14-15).
• Under Cover Installation (Refer to GROUP 51, Front
Bumper
P.51-2).

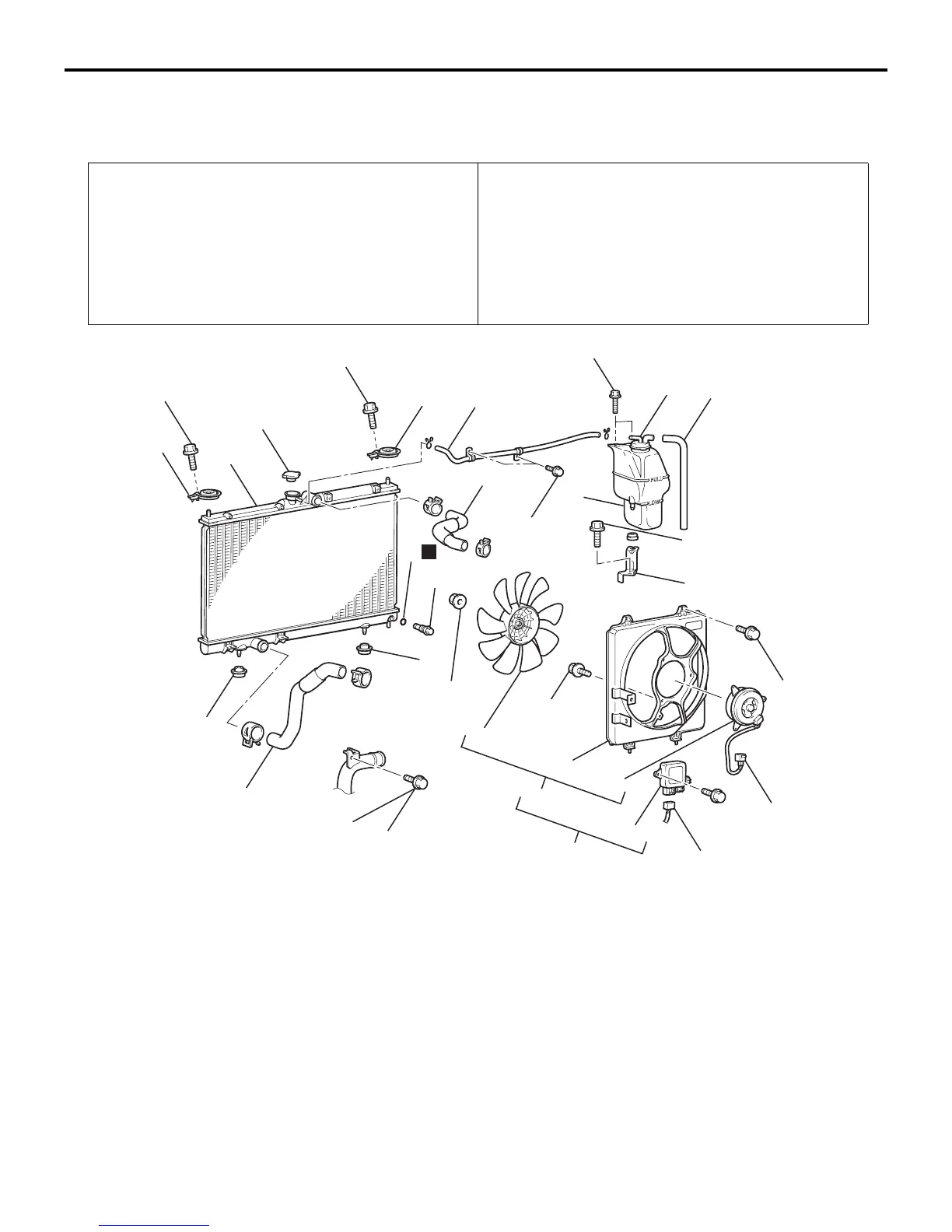

AC210706
3.5 ± 0.4 N·m
5.0 ± 1.0 N·m
5.0 ± 1.0 N·m
5.0 ± 1.0 N·m
12 ± 2 N·m
12 ± 2 N·m
AC
5.4 ± 0.5 N·m
4.5 ± 0.4 N·m
1
19
18
17
16
15
14
13
12
10
9
8
7
6
5
11
4
3
2
22
20
21
N
11
12 ± 2 N·m
14
Radiator removal steps
1. Radiator drain plug
2. O-ring
3. Radiator cap
4. Reserve tank hose
5. Reserve tank
6. Reserve tank cap
7. Reserve tank hose
8. Reserve tank bracket
<< A >> >> A <<
9. Radiator upper hose
<< A >> >> A <<
10. Radiator lower hose
11. Upper insulator
<< B >>
12. Air pipe B mounting bolt
13. Radiator assembly
14. Lower insulator
15. Fan controller connector
16. Fan controller, cooling fan motor,
fan and shroud assembly
Fan controller and cooling fan
motor removal steps
<< B >>
12. Air pipe B mounting bolt
15. Fan controller connector
17. Cooling fan motor connector
18. Fan controller
19. Cooling fan motor, fan and shroud
assembly
20. Cooling fan
21. Cooling fan motor
22. Cooling fan shroud
Radiator removal steps
