3-45 Outside dimensions/Installation dimensions
3 Controller
3.3.2 Installation dimensions

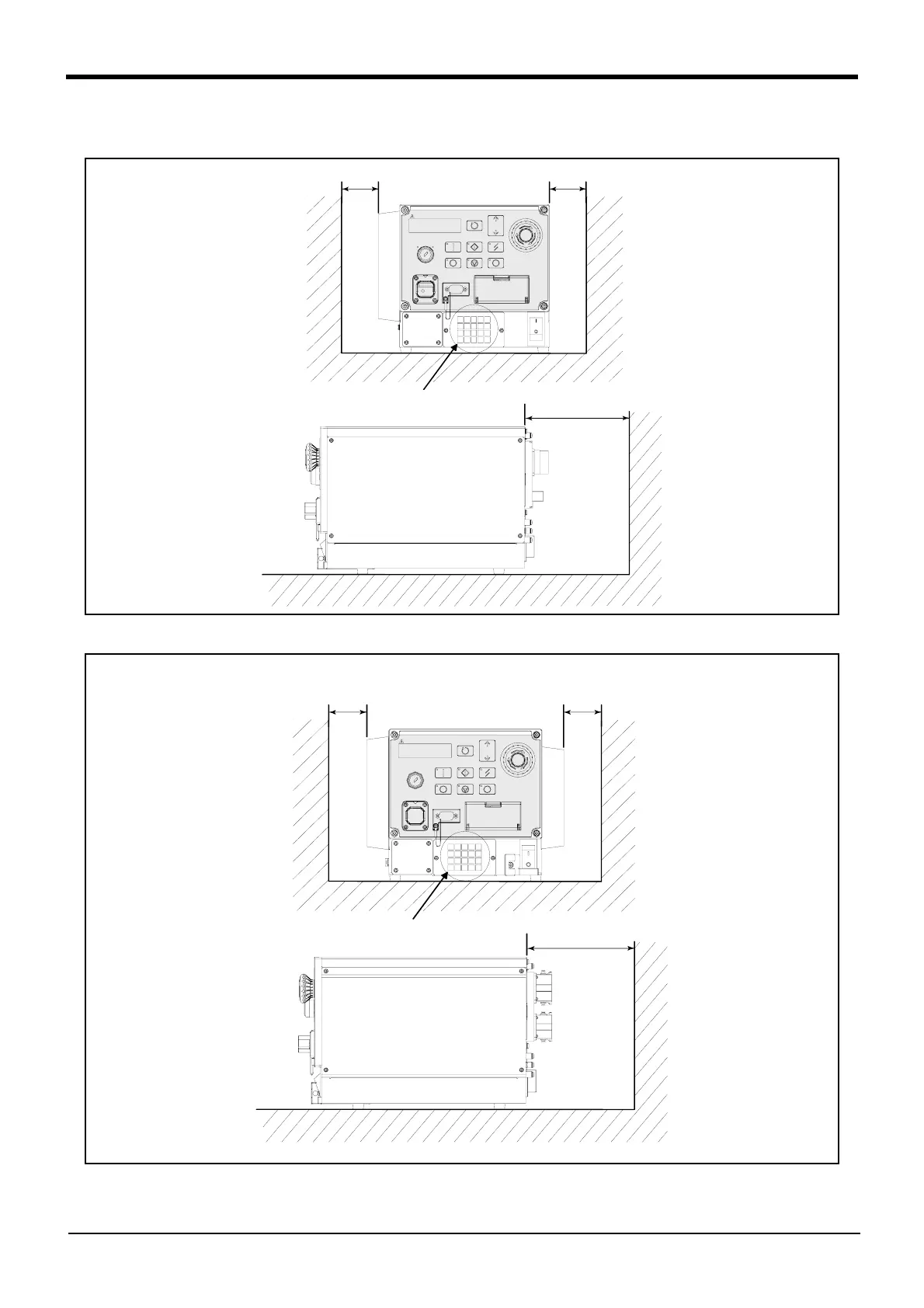

Fig.3-9 ： Installation of controller (CR1DA-771)
Fig.3-10 ： Installation of controller (CR1DA-771-S15/S16)
170mm以上
20mm50mm
吸気口
<CR1DA-771>
Standard specification
170mm or more
Intake vent
170mm以上
20mm50mm
吸気口
<CR1DA-771-S15/S16>
CE marking specification
170mm or more
Intake vent
