47

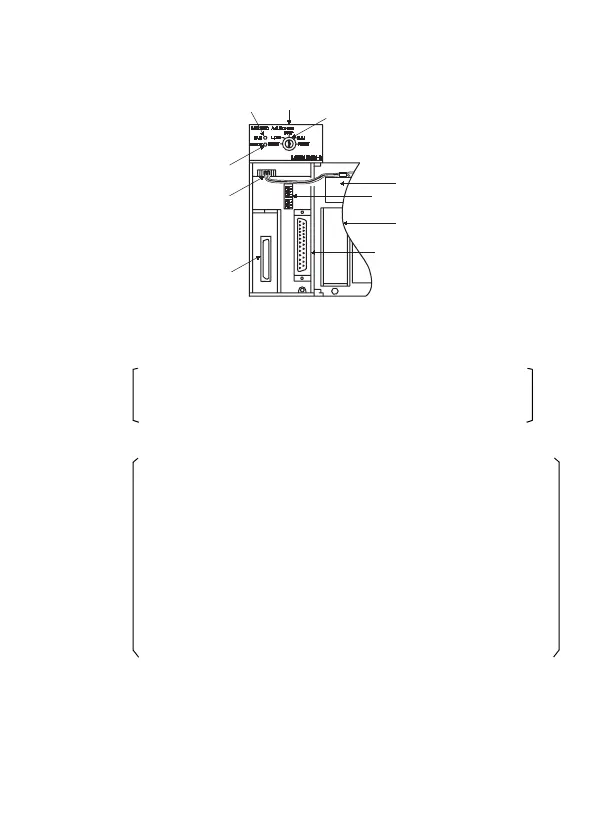

4.5 Part Names
This section gives part names of the CPU.
(1) RUN/STOP key switch
RUN/STOP:Used to start/stop sequence program execution.
L.CLR:Used to clear the data set in the latch range set in the
parameters.
(2) [RUN] LED
ON:
The RUN/STOP switch is set to "RUN" and sequence program is in
operation.
OFF:
100/200VAC is not supplied to the CPU.
The RUN/STOP switch is set to "STOP".
During STOP/PAUSE execution.
Flicker:
Self-diagnostic detected a sequence program error to stop the
operation.
During latch clear operation.
(5)
(4)
(7)
(10)
(9)
(3)
(2)
(6)
(1)
2ASCPU(S1/S30)/A2USHCPU-S1
(11)
To Next Page
