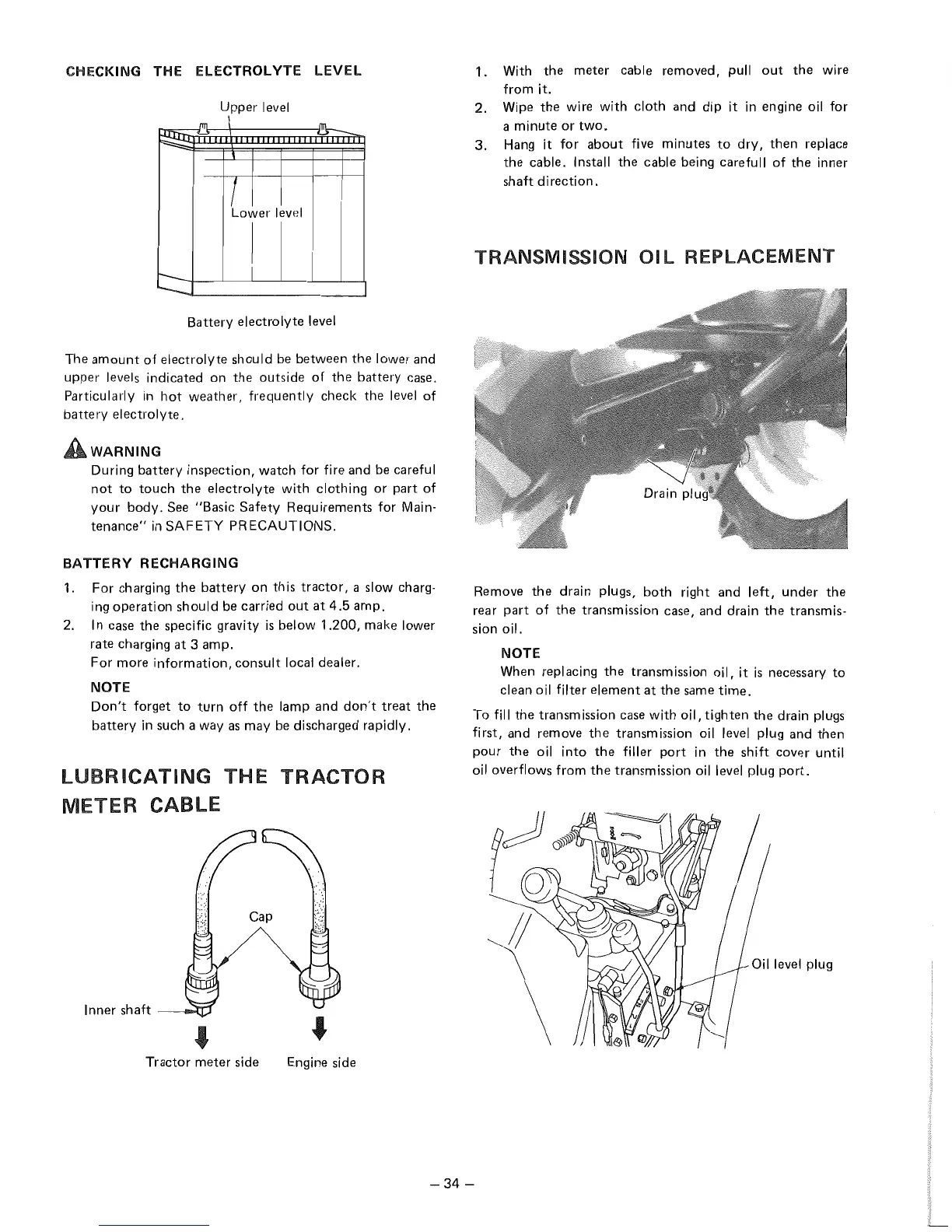

CHECKING THE ELECTROLYTE LEVEL
Upper level
no \ on
~
I
!
Lower level
r-
!
---
Battery electrolyte level
The amount of electrolyte should be between the lower and
upper levels indicated on the outside of the battery case.
Particularly in hot weather, frequently check the level of
battery electrolyte.
AWARNING
During battery inspection, watch for fire and be careful
not to touch the electrolyte with clothing or part of
your body. See "Basic Safety Requirements for Main-
tenance" in SAFETY PRECAUTIONS.
BATTERY RECHARGING
1. For charging the battery on this tractor, a slow charg-
ing
operation should be carried out at 4.5 amp.
2. I n case the specific gravity is below 1.200, make lower
rate charging at 3 amp.
For more information, consult local dealer.
NOTE
Don't forget to turn off the lamp and don't treat the
battery in such a way as may be discharged rapidly.
LUBRICATING THE TRACTOR
METER CABLE
Inner shaft ---{J...J
Tractor meter side
Engine side
1. With the meter cable removed, pull out the wire
from it.
2. Wipe the wire with cloth and dip it in engine oil for
a minute or two.
3. Hang it for about five minutes to dry, then replace
the cable. Install the cable being carefull of the inner
shaft di recti on.
TRANSMISSION 01 L REPLACEMENT
Remove the drain plugs, both right and left, under the
rear part of the transmission case, and drain the transmis-
sion oil.
NOTE
When replacing the transmission oil, it is necessary to
clean oil filter element at the same time.
To fill the transm ission case with oil, tighten the drain plugs
first, and remove the transmission oil level plug and then
pour the oil into the filler port in the shift cover until
oil overflows from the transmission oil level plug port.
-34 -
-
