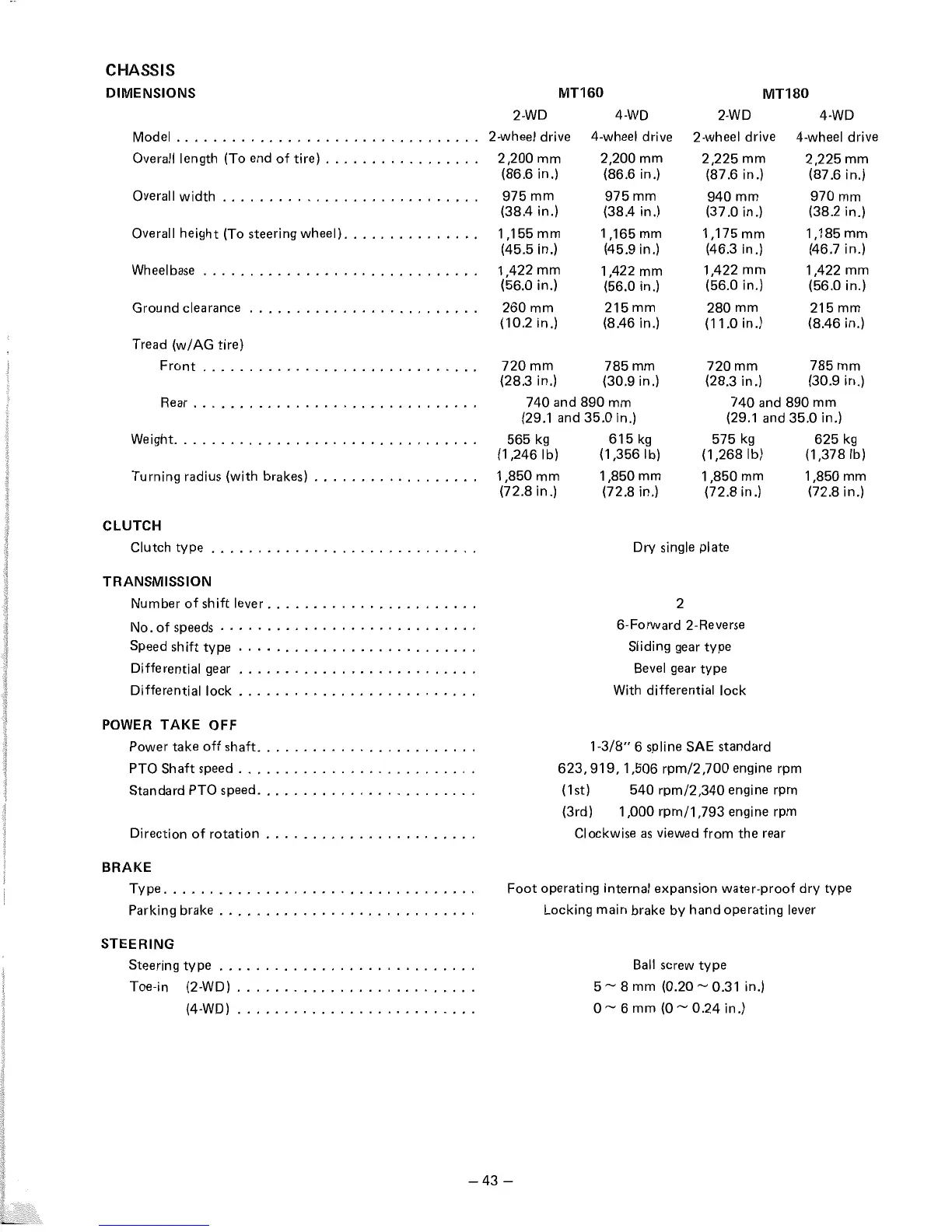

CHASSIS
DIMENSIONS
MT160
MT180
2-WD
4-WD
2-WD
4-WD
Model
................................ .
2-wheel drive
4-wheel drive
2-wheel drive
4-wheel drive
Overall length (To end
of tire) ................ .
2,200 mm
2,200 mm
2,225 mm
2,225 mm
(86.6 in.)
(86.6 in.)
(87.6 in.)
(87.6 in.)
Overall
width ........................... .
975mm
975 mm
940mm
970mm
(38.4 in.)
(38.4 in.)
(37.0 in.)
(38.2 in.)
Overall height (To steering wheel)
.............. .
1,155 mm
1,165mm
1,175mm
1,185mm
(45.5 in.)
(45.9 in.)
(46.3 in.)
(46.7 in.)
Wheelbase ............................. .
1,422 mm
1,422 mm
1,422 mm
1,422 mm
(56.0 in.)
(56.0 in.)
(56.0 in.)
(56.0 in.)
Ground clearance
........................ .
260mm
215 mm
280mm
215 mm
(10.2 in.)
(8.46 in.)
(11.0 in.)
(8.46 in.)
Tread
(w/AG tire)
Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 720 mm
785mm
(30.9 in.)
720mm
(28.3 in.)
785mm
(30.9 in.)
(28.3 in.)
Rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 740 and 890 mm
(29.1 and 35.0 in.)
740 and 890 mm
(29.1 and 35.0 in.)
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 565
kg 615 kg
(1,246Ib) (1,356 Ib)
575
kg 625 kg
(1,268Ib) (1,378Ib)
Turning radius (with brakes) . . . . . . . . . . . . . . . . .. 1,850 mm
(72.8 in.)
CLUTCH
Clutch type ............................ .
TRANSMISSION
Number
of shift lever ...................... .
No.
of speeds . . . . . . . . . . . . . .............. .
Speed shift type ......................... .
Differential
gear ......................... .
Differential lock
......................... .
POWER
TAKE OFF
Power take
off shaft ....................... .
PTa Shaft speed ......................... .
Standard
PTa speed ....................... .
Direction
of rotation ...................... .
BRAKE
1,850 mm
(72.8 in.)
1,850 mm
(72.8 in.)
Dry single plate
2
6-Forward 2-Reverse
SI iding gear type
Bevel gear type
With differential
lock
1-3/8" 6 spline SAE standard
623,919,1,506 rpm/2,700 engine rpm
(1st) 540 rpm/2,340 engine rpm
(3rd) 1,000 rpm/1 ,793 engine rpm
Clockwise
as viewed from the rear
1,850 mm
(72.8 in.)
Type
................................. .
Parking brake
........................... .
Foot operating internal expansion water-proof dry type
Locking main brake by hand operating lever
STEERING
Steering type
........................... .
Toe-in (2-WD)
......................... .
(4-WD)
......................... .
-43-
Ball screw type
5
~ 8 mm (0.20 ~ 0.31 in.)
o ~ 6 mm (0 ~ 0.24 in.)
