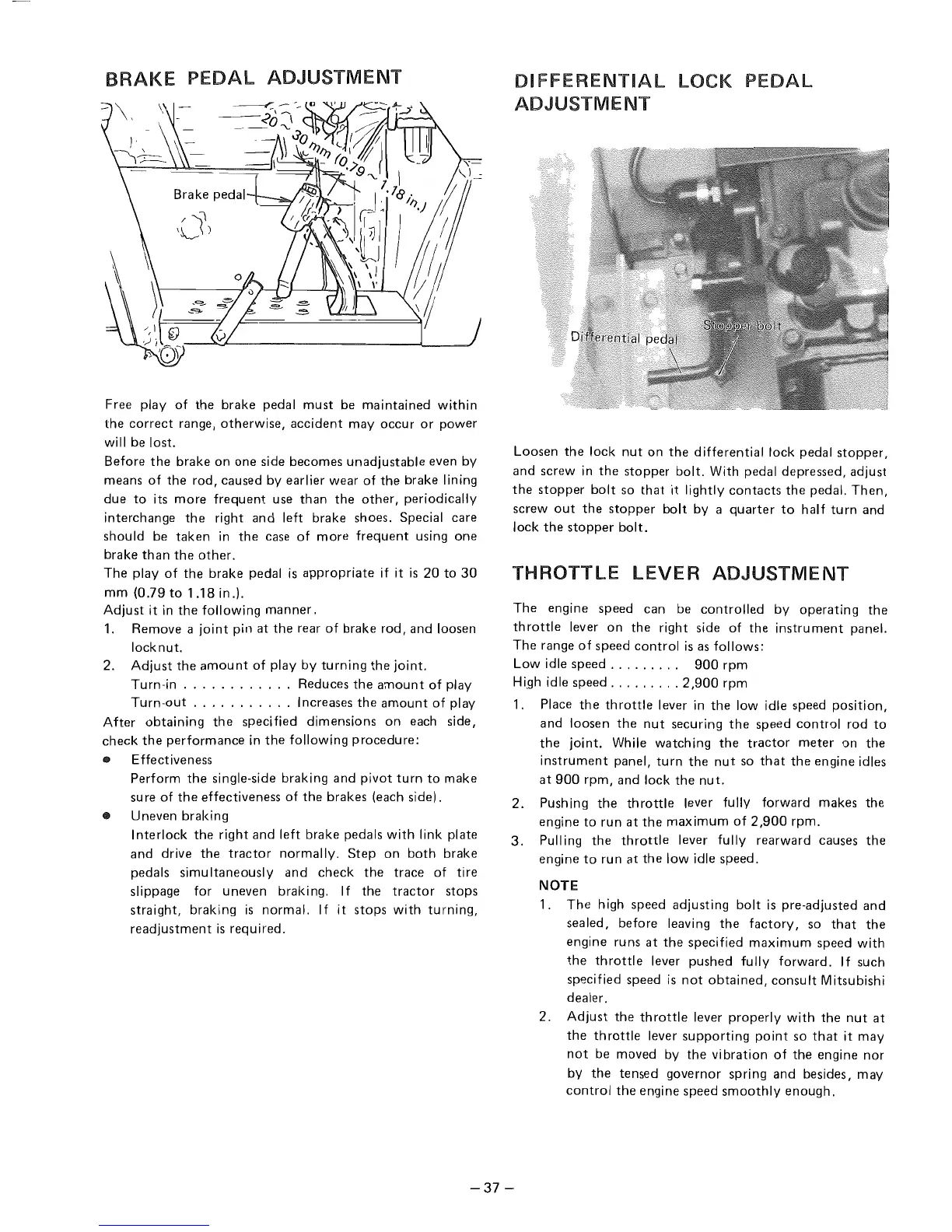

h

BRAKE

PEDAL

ADJUSTMENT

Free

play

of

the

brake

pedal

must

be

maintained

within

the

correct

range,

otherwise,

accident

may

occur

or

power

will

be

lost.

Before

the

brake

on

one

side

becomes

unadjustable

even

by

means

of

the

rod,

caused

by

earlier

wear

of

the

brake

lining

due

to

its

more

frequent

use

than

the

other,

periodically

interchange

the

right

and

left

brake

shoes.

Special

care

should

be

taken

in

the

case

of

more

frequent

using

one

brake

than

the

other.

The

play

of

the

brake

pedal

is

appropriate

if it

is

20

to

30

mm

(0.79

to

1.18

in.).

Adjust

it

in

the

following

manner.

1.

Remove

a

joint

pin

at

the

rear

of

brake

rod,

and

loosen

locknut.

2.

Adjust

the

amount

of

play

by

turning

the

joint.

Turn-in

............

Reduces

the

amount

of

play

Turn-out

...........

Increases

the

amount

of

play

After

obtaining

the

specified

dimensions

on

each

side,

check

the

performance

in

the

following

procedure:

•

Effectiveness

Perform

the

single-side

braking

and

pivot

turn

to

make

sure

of

the

effectiveness

of

the

brakes

(each side).

•

Uneven

braking

Interlock

the

right

and

left

brake

pedals

with

link

plate

and

drive

the

tractor

normally.

Step

on

both

brake

pedals

simu

Itaneously

and

check

the

trace

of

tire

slippage

for

uneven

braking.

If

the

tractor

stops

straight,

braking

is

normal.

If

it

stops

with

turning,

readjustment

is

required.

DIFFERENTIAL

LOCK

PEDAL

ADJUSTMENT

Loosen

the

lock

nut

on

the

differential

lock

pedal

stopper,

and

screw

in

the

stopper

bolt.

With pedal

depressed,

adjust

the

stopper

bolt

so

that

it lightly

contacts

the

pedal.

Then,

screw

out

the

stopper

bolt

by

a

quarter

to

half

turn

and

lock

the

stopper

bolt.

THROTTLE

LEVER

ADJUSTMENT

The

engine

speed

can

be

controlled

by

operating

the

throttle

lever

on

the

right

side

of

the

instrument

panel.

The

range

of

speed

control

is

as

follows:

Low

idle

speed.

. . . . . .

..

900

rpm

High idle

speed

.........

2,900

rpm

1. Place

the

throttle

lever in

the

low idle

speed

position,

and

loosen

the

nut

securing

the

speed

control

rod

to

the

joint.

While

watching

the

tractor

meter

on

the

instrument

panel,

turn

the

nut

so

that

the

engine

idles

at

900

rpm,

and

lock

the

nut.

2.

Pushing

the

throttle

lever fully

forward

makes

the

engine

to

run

at

the

maximum

of

2,900

rpm.

3.

Pulling

the

throttle

lever fully

rearward

causes

the

engine

to

run

at

the

low

idle

speed.

NOTE

1.

The

high

speed

adjusting

bolt

is

pre-adjusted

and

sealed,

before

leaving

the

factory,

so

that

the

engine

ru

ns

at

the

specified

maximum

speed

with

the

throttle

lever

pushed

fully

forward.

If

such

specified

speed

is

not

obtained,

consult

Mitsubishi

dealer.

2.

Adjust

the

throttle

lever

properly

with

the

nut

at

the

throttle

lever

supporting

point

so

that

it

may

not

be

moved

by

the

vibration

of

the

engine

nor

by

the

tensed

governor

spring

and

besides,

may

control

the

engine

speed

.smoothly

enough.

-37

-
