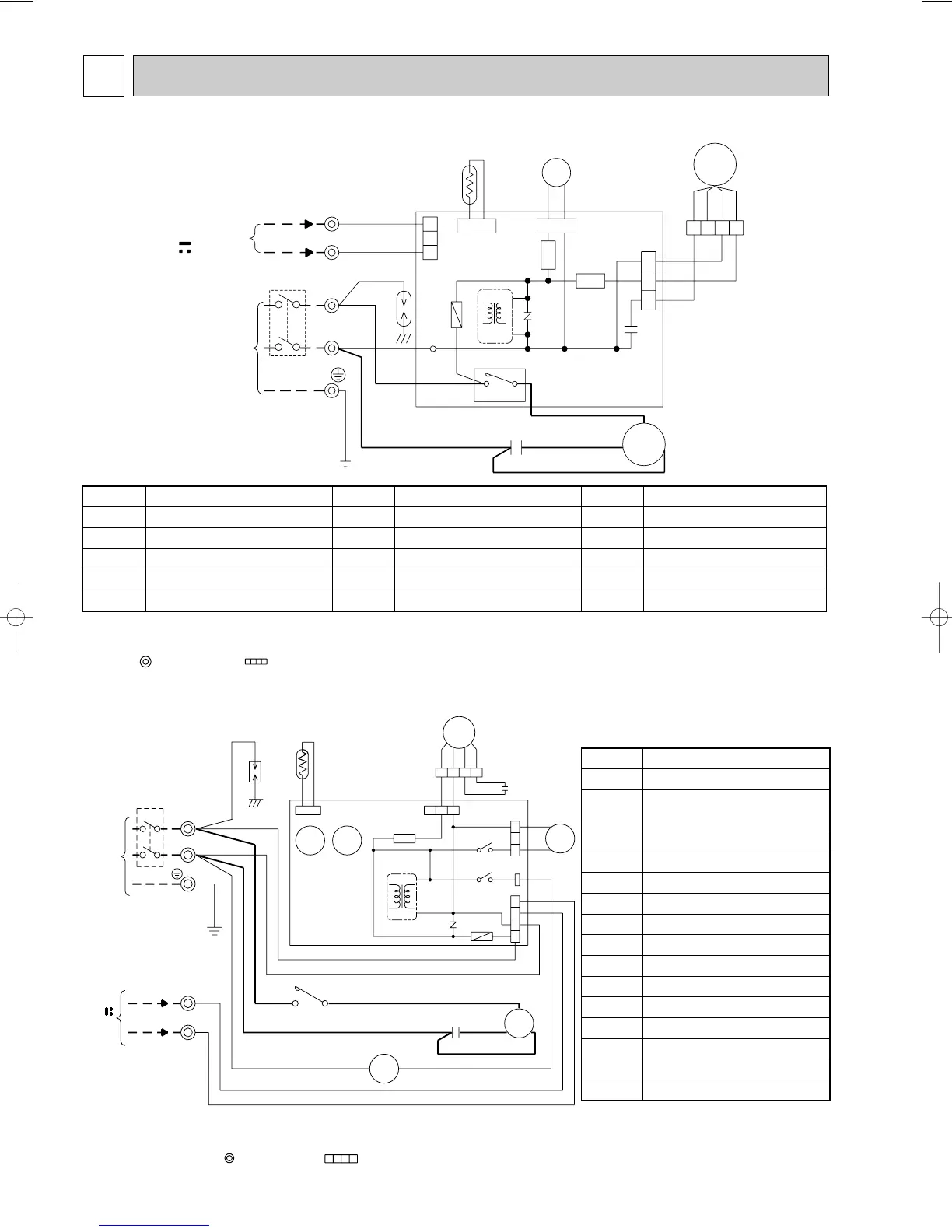

WIRING DIAGRAM
6
MUH-GA60VB
DEICER
P.C. BOARD
BLU
X52
X52
NO
COM
TAB52
BLU
52C
A2
A1
T61
BLK WHT
RED
BRN
TB2
7
1
CN730
BLK WHT
CIRCUIT BREAKER
CN721
3
52C
4
RED
C2
ORN
DSAR
12V
WHT
C1
BLK
S
C
R
MC
RED
NR61
3
5
BLU
TB1
GRN/YLW
POWER SUPPLY
~ / N 230V 50Hz
CN661
RT61
X62
X62
1
2
3
21S4
BLU
BRN
BLU
BRN
SR61
F61
CN711
MF
1
2
3
21
ORN RED
34
NO
COM
TO INDOOR UNIT CONNECTING
N
3
N
L
PE
NOTES:
1.Use copper conductors only (For field wiring).
2.Since the indoor and outdoor unit connecting wires have polarity, connect them according to the numbers (3,N).
3.Symbols below indicate.
: Terminal block, : Connector
SYMBOL
C1
C2
DSAR
F61
MC
MF
NR61
RT61
SR61
TB1
TB2
T61
X52
X62
21S4
52C
NAME
COMPRESSOR CAPACITOR
OUTDOOR FAN CAPACITOR
SURGE ABSORBER
FUSE (3.15A)
COMPRESSOR (INNER PROTECTOR)
OUTDOOR FAN MOTOR (INNER PROTECTOR)
VARISTOR
DEFROST THERMISTOR
SOLID STATE RELAY
TERMINAL BLOCK
TERMINAL BLOCK
TRANSFORMER
CONTACTOR
R. V. COIL RELAY
R. V. COIL
COMPRESSOR CONTACTOR
MUH-GA50VB
MC
CN661
3
1
2
CN721
21S4
MF
SR62
SR61
TAB20
GRN/YLW
BLU
CIRCUIT BREAKER
POWER SUPPLY
BLU
BRN
DSAR
BLK
BRN
RED
DEICER P.C. BOARD
4
C1
BLK
RED
3
WHT
S
C
R
CN730
RT61
BLK
2
3
1
RED
WHT
12V
TO
CONNECTING
INDOOR UNIT
TB2
3
N
TB1
L
N
PE
~/N
NR61
F61
T61
C65
CN711
52C
230V
50Hz
1234
WHT
BLK RED ORN
1.About the indoor side electric wiring refer to the indoor unit electric wiring diagram for servicing.
2.Use copper conductors only. (For field wiring)
3.Symbols below indicate.
: Connector
: Terminal block
NOTES:
SYMBOL
C1
C65
DSAR
F61
MC
NAME
COMPRESSOR CAPACITOR
OUTDOOR FAN CAPACITOR
SURGE ABSORBER
FUSE (2A)
COMPRESOR (INNER PROTECTOR)
SYMBOL
MF
NR61
RT61
SR61,SR62
T61
NAME
OUTDOOR FAN MOTOR (INNER PROTECTOR)
VARISTOR
DEFROST THERMISTOR
SOLID STATE RELAY
TRANSFORMER
SYMBOL
TB1,TB2
21S4
52C
NAME
TERMINAL BLOCK
R.V. COIL
COMPRESSOR CONTACTOR
