Mitsubishi MUH-GA50VB User Manual

12

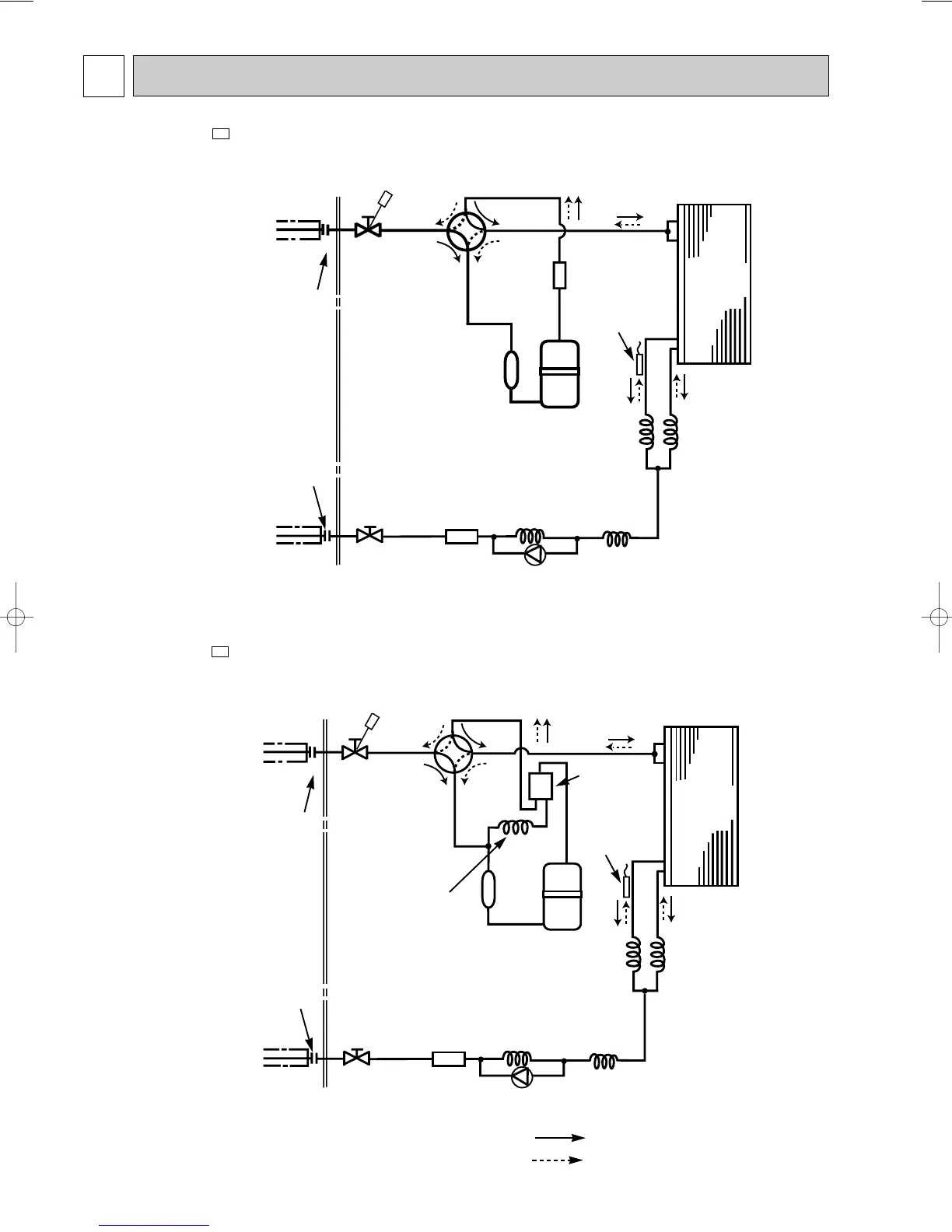

REFRIGERANT SYSTEM DIAGRAM
7
Muffler
MUH-GA50VB -
E1
Refrigerant pipe [12.7
(with heat insulator)
Flared connection
Flared connection
Refrigerant pipe [6.35
(with heat insulator)
Stop
valve
Check valve
Capillary tube
[3.0o[1.6o450
Capillary tube
[3.0o[1.6o750
(2 pcs)
Compressor
Stop valve
(with service port)
Outdoor
heat
exchanger
Defrost
thermistor
RT61
R.V. coil
Heating ON
Cooling OFF
4- way valve
Unit:mm
Capillary tube
[3.0o[1.6o300
Strainer
#100
MUH-GA50VB -
E2
Refrigerant pipe [12.7
(with heat insulator)
Flared connection
Flared connection
Refrigerant pipe [6.35
(with heat insulator)
Stop
valve
Check valve
Capillary tube
[3.0o[1.8o800
Capillary tube
[3.0o[1.6o750
(2 pcs)
Compressor
Stop valve
(with service port)
Outdoor
heat
exchanger
Defrost
thermistor
RT61
R.V. coil
Heating ON
Cooling OFF
4- way valve
Capillary tube
[3.0o[1.8o350
Strainer
#100
Capillary tube
[2.5o[0.6o1,000
Oil separator
#100
Refrigerant flow in cooling
Refrigerant flow in heating
OB368B-1.qxp 10.5.25 9:14 AM Page 12
