4.2 Connecting to Hydrobox
* Before installation, be sure to turn off the
main power supply.

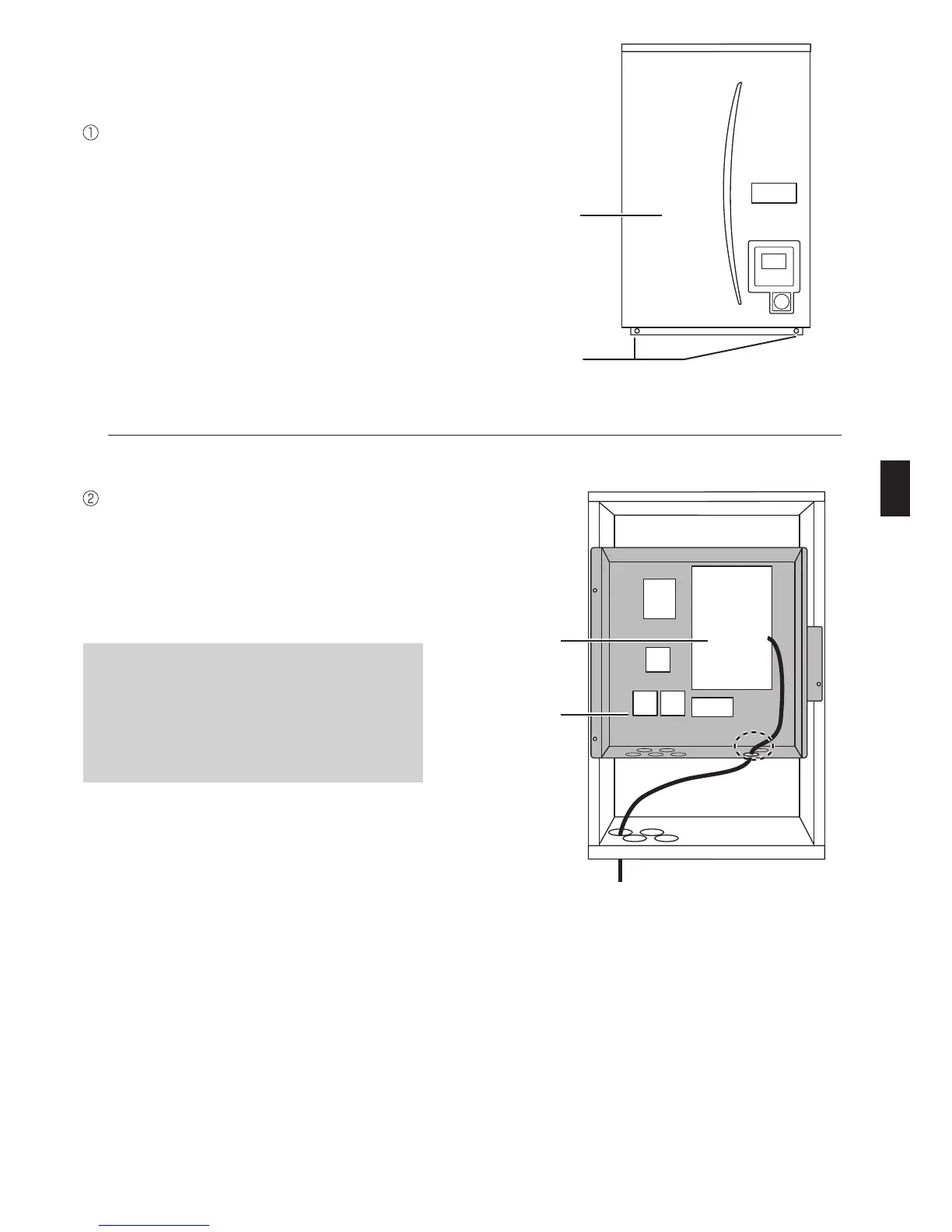

Remove the two screws that hold the front
panel, and remove the panel.
Screws
(2 positions)
Front panel
Route the receiver's cable into the hy-
drobox through the leftmost inlet at the
bottom of the unit. Then route into the
control and electrical box through the
shown inlet at the bottom of the con-
trol and electrical box.
● Do not bundle the receiver cable
with a power cable.
● Do not run the cable through
an inlet that a power cable goes
through.
