― 24 ―
[NOTE] If the thickness of the sewing material changes very often, it is recommended to take
the easy way for the adjustment of the presser foot position with the method that
change only the fixed position of the presser foot after fixed the presser foot bar at
higher position.
For this adjustment, loosen the setscrew (NO.16) then, move the presser foot
(NO.12) up and down.
7-6-2. Adjustment of the presser foot lift during the sewing
[NOTE] The presser foot lift during the sewing can be adjusted 0 and 2～10mm.

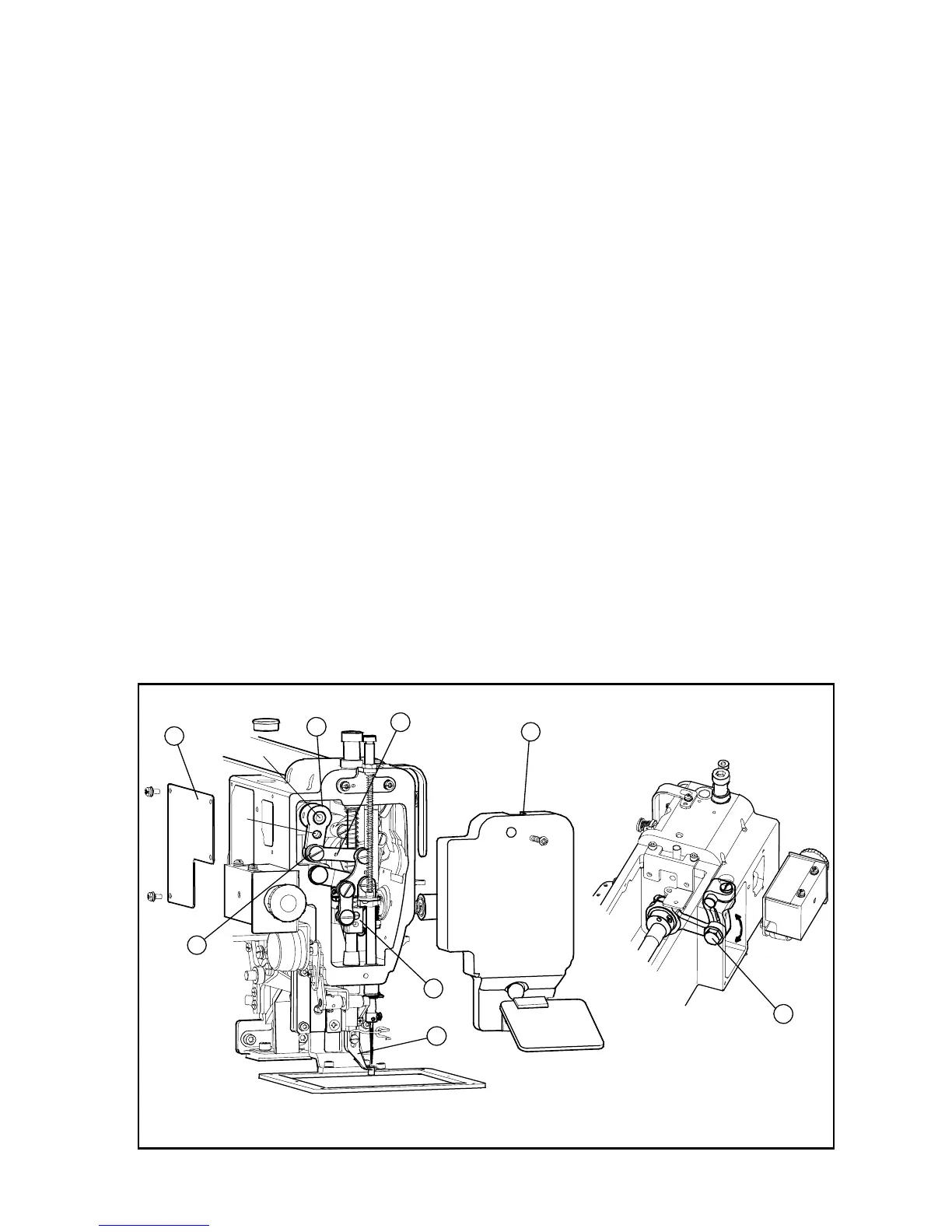

(1) The presser foot lift during the sewing becomes 4～10mm at the condition which the
connection of the link (No.2) and the lever (No.3) with the shoulder screw(No.1) is as
shown on the figure and it becomes 2 to 4 mm if the connection is made with A hole, and it
becomes 0 mm if the connection is made with B hole..
(2) The stepping lift is adjusted 4mm when the sewing machine is shipped from the factory.
(3) For the adjustment at the each range of the presser foot lift, remove the link cover (No.4)
then, loosen and move the adjust bolt(No.5).
(4) If the link (No.2) connection is changed to A or B hole, the presser foot position is also
changed. So reset the presser foot position with adjusting the position of the presser foot
bar or the presser foot itself with loosing their setscrews (No.6) or (No.7).
(5) Regarding the running noise and the vibration, the higher lift effects worse. So adjust the
presser foot lift during the sewing as small as possible.
(6) After the adjustment, put the link cover (No.4) and the face plate (No.8) back on the
original location.
2
3
B
A
4
1
6
7
8
5
