4.7.2 Concept of I/O assignment using GX Developer
In I/O assignment, the "Type (module type)", "Points (I/O points)" and "Start XY" (starting I/
O number) can be set for each slot of the base units.
For example, to change the number of occupied I/O points of the designated slot, only the
number of occupied I/O points can be designated.
The items other than designated are set to the status where the base unit is installed.
(1) I/O assignment
The I/O assignment is conducted at the "I/O assignment" tab screen in the "(PLC)
Parameter" dialog box.
(a) Slot
The slot No. and what number of the slot on what number of the stage are
displayed for each slot.
When the base unit is set in Auto mode, "*" indicates the base unit stage number
and the slot number counted from Slot 0 of the main base unit is displayed.

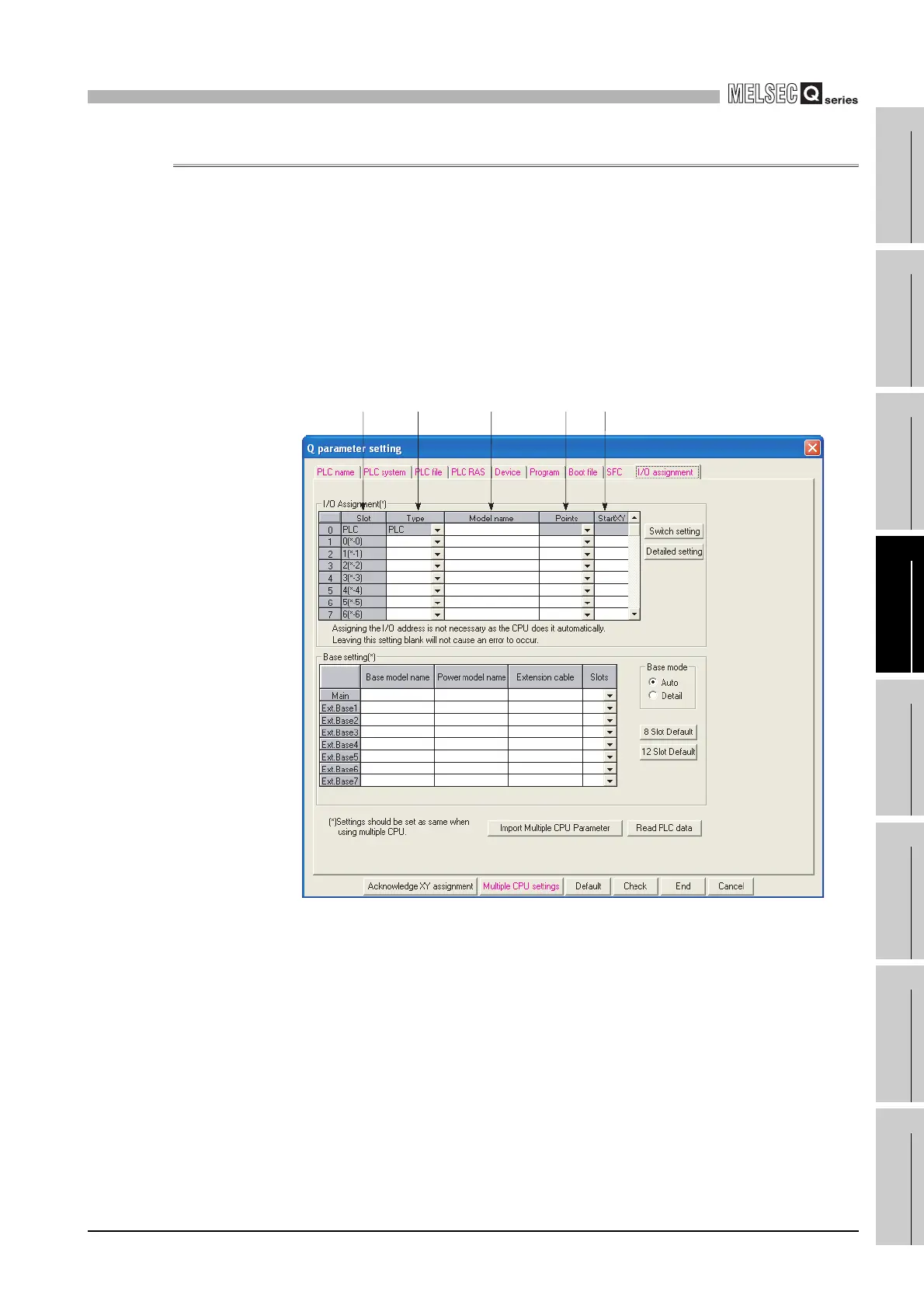

Figure 4.21 I/O assignment
(a) (b) (c) (d) (e)
To Next Page
