Mitsubishi RCN-EK2 User Manual

-
4
-
❚

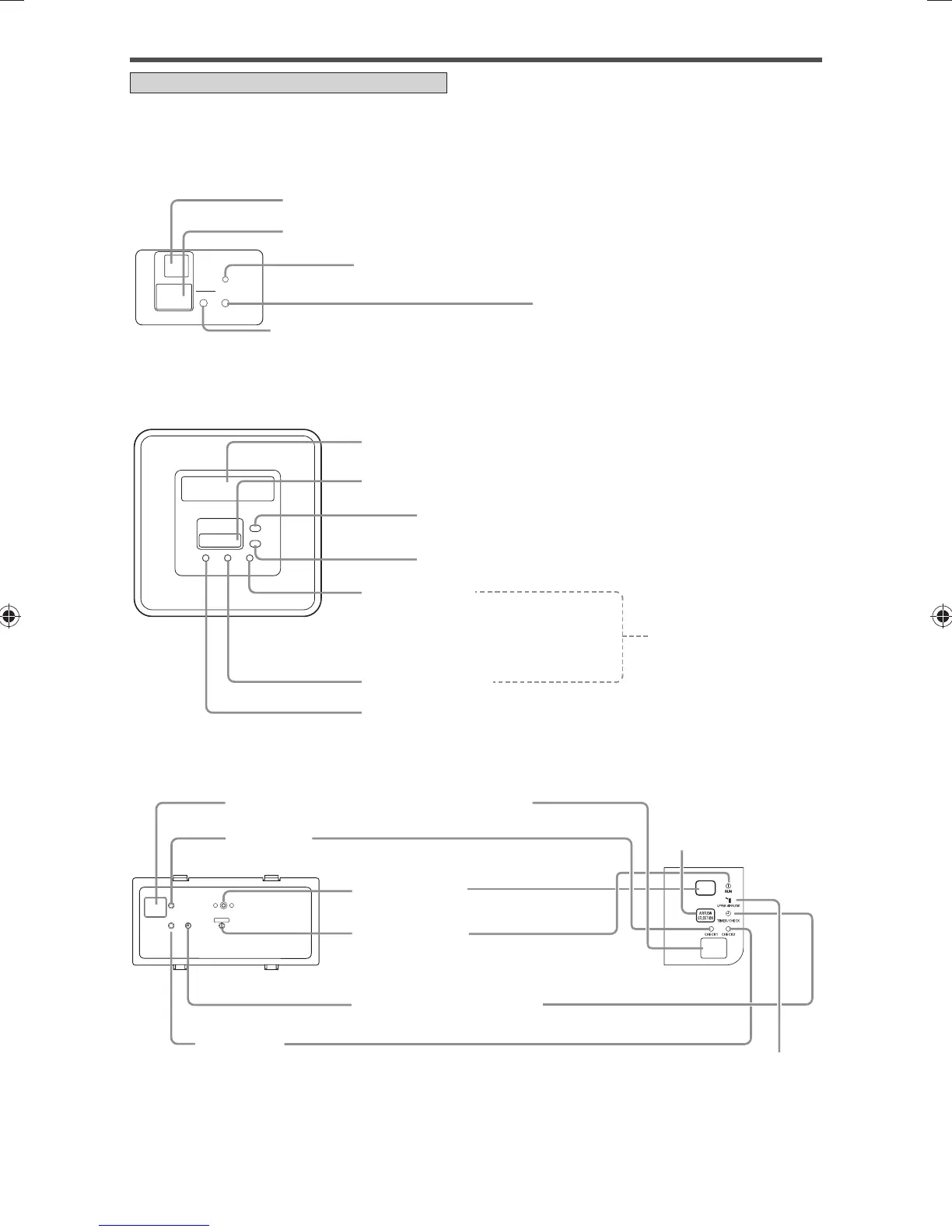

2. NAMES AND FUNCTIONS OF REMOTE CONTROL BUTTON
INDICATION BOARD AND BACKUP SWITCH
■
Ceiling suspended (FDE)
■
Ceiling cassette -4 way- (FDT)
■
Ceiling cassette -4 way Compact- (FDTC)
■
Ceiling cassette -1 way- (FDTS)
TIMER
CHECK RUN
RUN LED (GREEN)
•
Continuous lighting: During operation
•
Continuous blinking: ”PREPARATION OF HEATING”
(during heating mode)
•
Triple blinks: Indicates that a signal has been received
from the remote control.
BACK UP SWITCH
When the remote control is missing or defective, this switch can start and stop the air conditioner.
REMOTE CONTROL SIGNAL RECEIVING SECTION
Receives a signal from the remote control.
CHECK MODE INDICATOR
When an irregularity occurs, the indicator indicates the status of malfunction by symbol.
TIMER /CHECK LED (YELLOW)
•
Continuous lighting: The timer is active.
•
Continuous blinking: Air conditioner malfunction
or filter sign.
■
RCN-KIT4-E2
CHECK MODE
FILTER
CHECK
RUN/
CHECK
ON/
OFF
CHECK
TIMER
REMOTE CONTROL SIGNAL RECEIVING SECTION
Receives a signal from the remote control.
CHECK MODE INDICATOR
When an irregularity occurs, the indicator indicates the status of malfunction by symbol.
BACK UP SWITCH
When the remote control is missing or defective, this switch can start and stop the
air conditioner.
CHECK SWITCH
This switch is used for maintenance service.
RUN/CHECK LED
The lamp blinks are indicated in 3 patterns as follows.
• Lit up in green : During operation
• Blinked in green : ”PREPARATION OF HEATING”
(during heating mode)
• Blinked in red : An irregularity occurs in the air conditioner.
TIMER LED (GREEN)
This lamp is lit during the timer operation.
FILTER SIGN LED (RED)
When this lamp is blinked, clean the filter.
These lamps blink when the signal is
received from the remote control.
Each lamp blinks two times in the
order from TIMER to RUN/CHECK
(green) for receiving sign.
■
Ceiling cassette -2 way- (FDTW) ■ Floor standing -2way-
(FDFW)
CHECK1
CHECK2 TIMER/CHECK
RUN
TIMER /CHECK LED (YELLOW)
•
Continuous lighting: The timer is active.
•
Continuous blinking: Air conditioner malfunction or filter sign.
AIRFLOW SELECTION
SWITCH
Used to switch the airflow between
the standard and upper airflow.
CHECK2 LED
The number that corresponds to the “ones place” of the error code that blinks repeatedly
(10 seconds per cycle) when a check indication is displayed.
CHECK1 LED
The number that corresponds to the “tens place” of the error code that blinks
repeatedly (10 seconds per cycle) when a check indication is displayed.
REMOTE CONTROL SIGNAL RECEIVING SECTION
Receives a signal from the remote control.
BACK UP SWITCH
When the remote control is missing or defective,
this switch can start and stop the air conditioner.
RUN LED (GREEN)
•
Continuous lighting: During operation
•
Continuous blinking: “PREPARATION OF HEATING”
•
Triple blinks: Indicates that a signal has been
received from the remote control.
UPPER AIRFLOW LED
(GREEN)
Lights up when the airflow direction
is set to the upper airflow.
PJZ012A128_EN.indd 4PJZ012A128_EN.indd 4 11/10/2016 6:53:19 PM11/10/2016 6:53:19 PM
