Chapter 2 NAME OF PARTS
2-3
Equipment and Instrument
Starting and Shutdown Devices
The shape and type of the starting and shutdown devices may vary from those described below depending on
the engine specifications.
Start Switch
When the start switch on the operation panel is
pressed, starting air is supplied to the air starter
system and cranks the engine.
Stop Switch
When the stop switch on the operation panel is
pressed, the shutdown cylinder operates and
moves the control shaft of the fuel injection pump to
the no-injection position to shut down the engine
operation.
Start Lever
The start lever is provided on the air starter pipe.
When the lever is moved toward the OPEN posi
-
tion, air flows and cranks the engine. Once the
engine starts, return the lever to the CLOSE posi
-
tion immediately.
Manual Stop Lever
Use the manual stop lever to shut down the engine
in the event of an emergency.
If the stop button is not working, use the manual
stop lever. The lever is installed to the fuel control
link and when the lever is moved in the STOP
direction, the engine stops operation.
Should the engine continue operating even after
the manual stop lever is operated, cut off the fuel
supply to stop the engine.

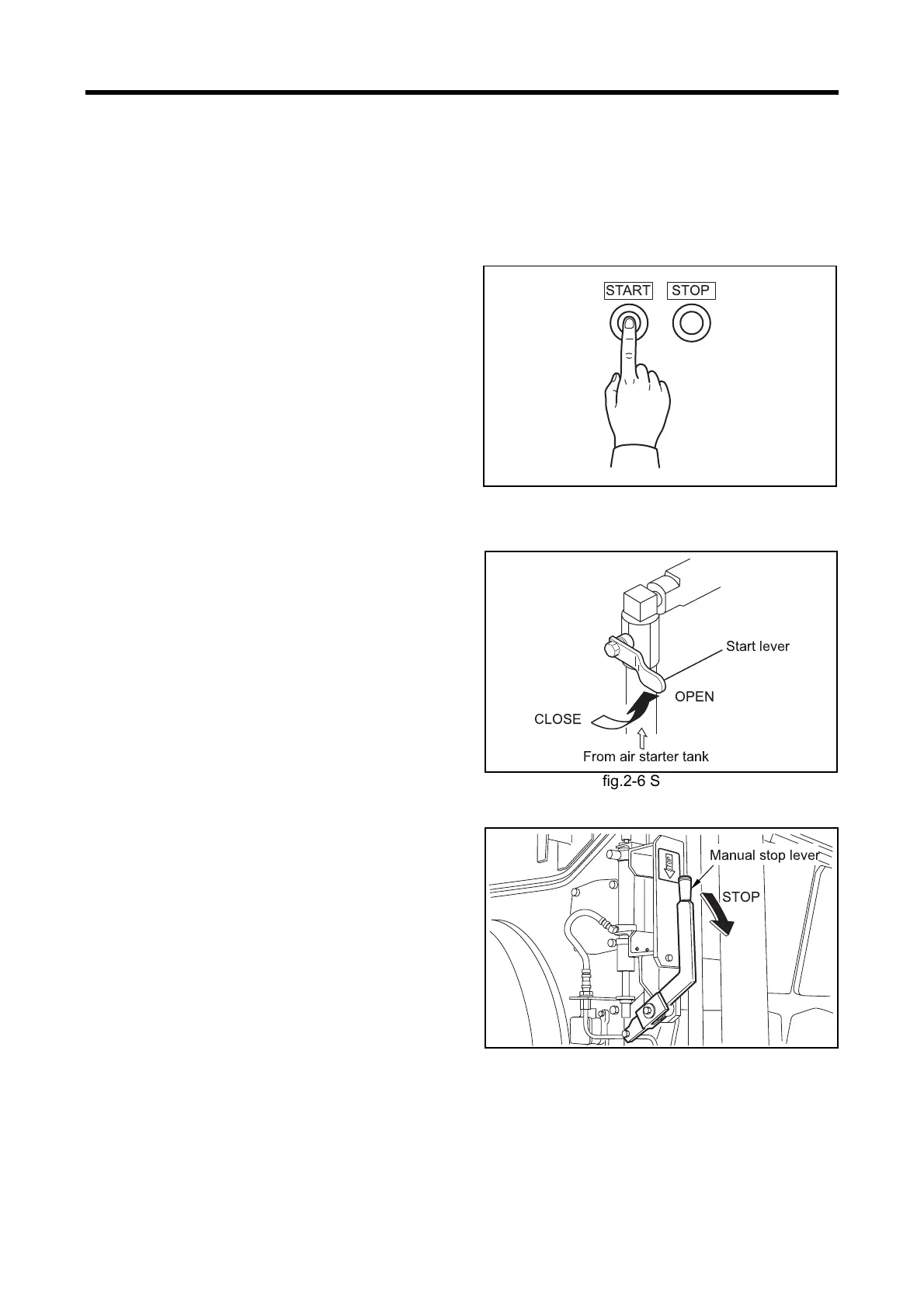

fig.2-5 Start switch and stop switch
STOPSTART
fig.2-6 Start lever
fig.2-7 Manual stop lever
From air starter tank
OPEN
CLOSE
Start lever
