Chapter 2 NAME OF PARTS
2-6

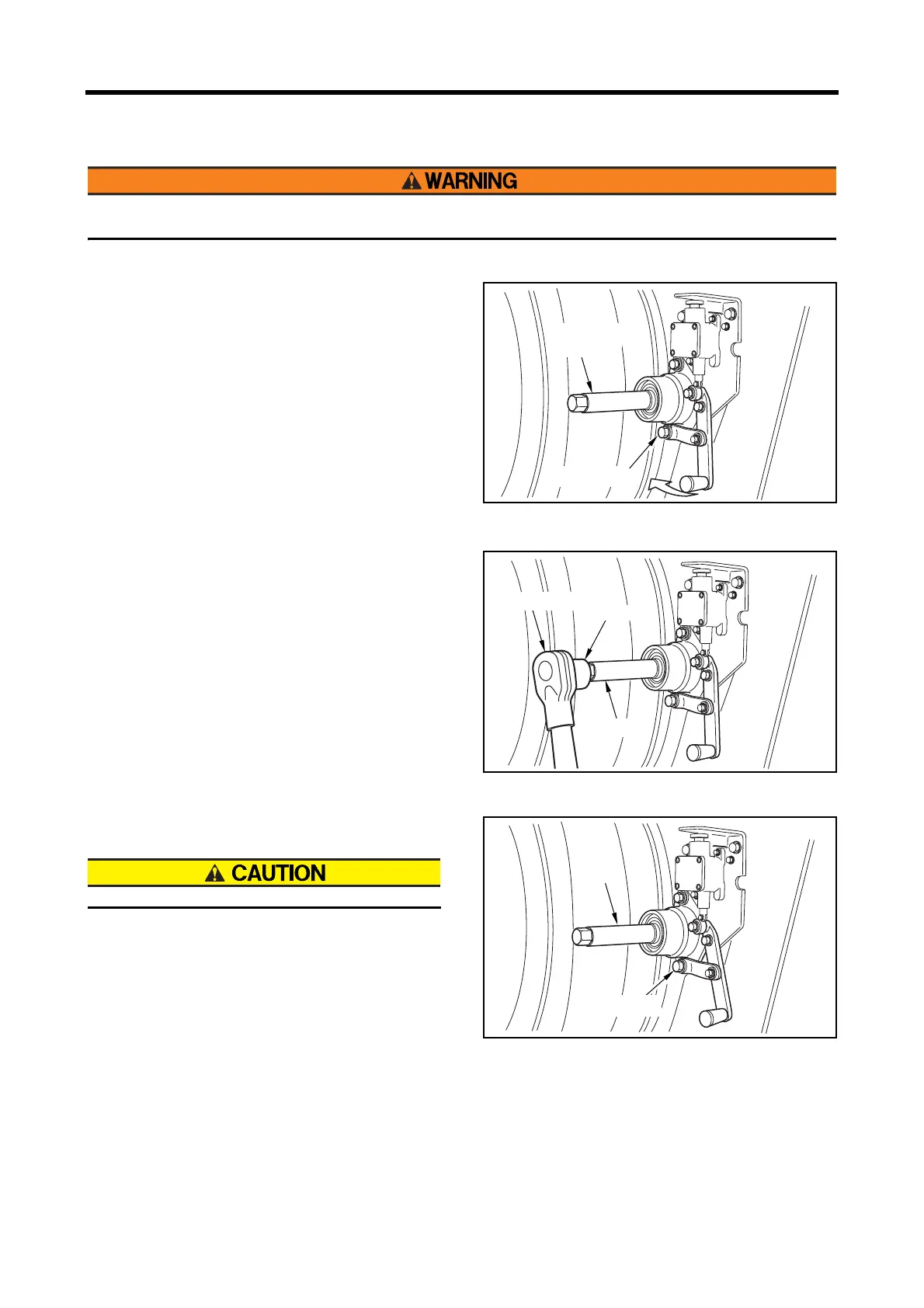

Using Turning Gear
Before starting the engine, return (pull out) the turning gear to the original position. Starting the engine with the
turning gear pushed in not only damages the ring gear but also may result in personal injury.
1 Untighten the retaining bolt.
2 Move the turning gear fully to engage the ring gear
and tighten the bolt.
3 Turn the shaft using the socket wrench and the
rachet handle.
4 After turning, move the turning gear, disengage the
turning gear with the ring gear and tighten the retain-
ing bolt.
Make sure the lock pin is securely inserted.
fig.2-9 Preparation for turning
fig.2-10 Turning
Shaft
Socket
Rachet handle
fig.2-11 Locking turning gear
Retaining bolt
Shaft
Turning gear
shaft
Retaining bolt
