MOTORGUIDE WIRELESS
90-MM5981 For Questions, Contact Consumer Affairs at #1-920-929-5040 18
© 2005, MotorGuide www.motorguide.com

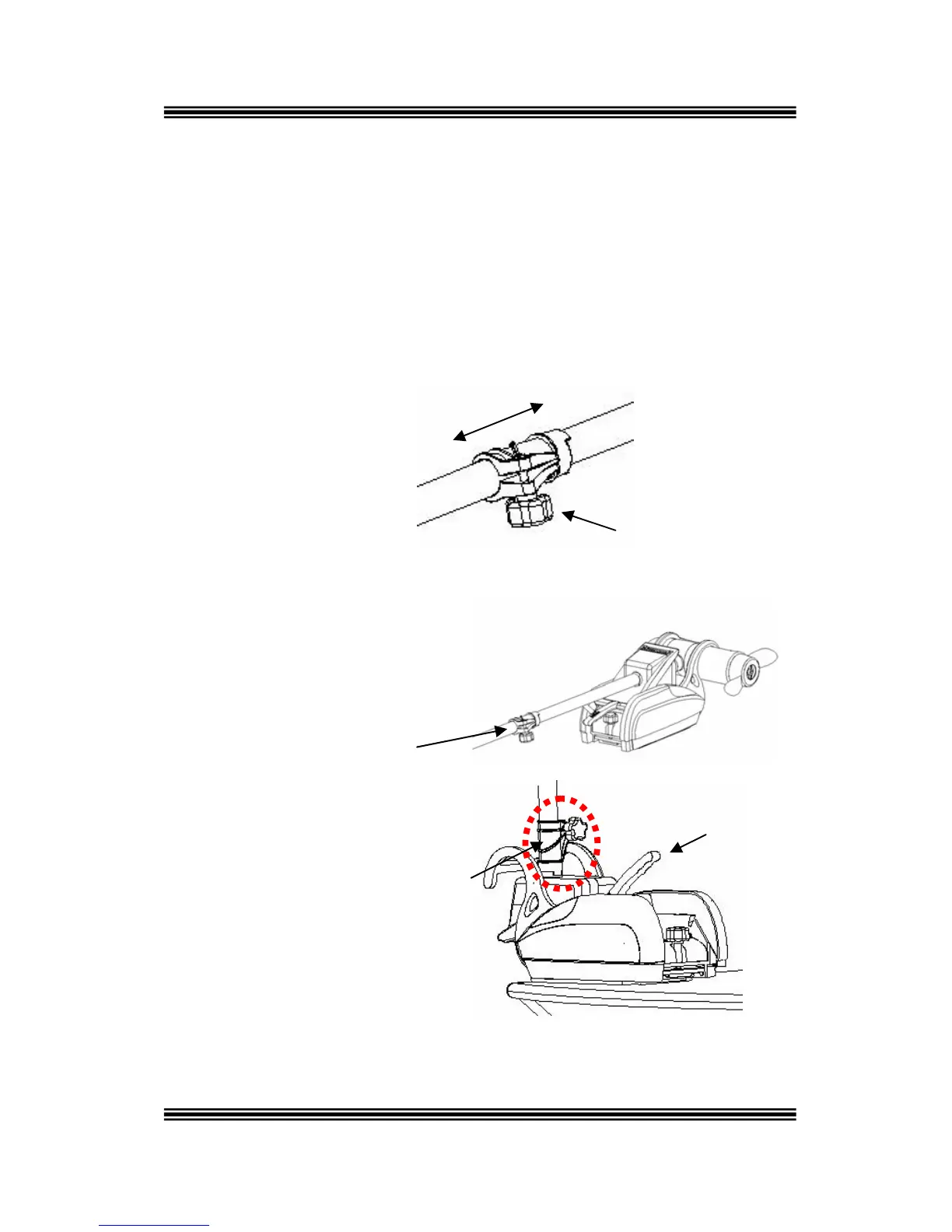

Depth Collar
Knob Handle
Slide Depth Collar
Up or Down Shaft
MOTOR & MOUNT OPERATION
, turn the depth collar handle to tighten. Also, be
position.
3. Hold
the
motor
by the shaft or the top
housing and raise it into a
vertical position. Lower
the motor until the depth
collar rests on top of the mount housing collar. The motor is ready to
connect to the power source.
Adjusting the Motor Depth and Deploying the Motor
1. Loosen the depth collar by turning the knob handle. Slide the depth
collar up or down the shaft to a position that will allow the lower unit to
be submerged at least 12 inches (30cm) below the water surface
when the motor is fully deployed. When the depth collar is in the
desired location
cautious that the depth of the motor is deep enough to prevent the
lower unit from striking obstacles that could damage the skeg or prop.
2. Pull up on the release
handle and then raise the
motor out of the stow
Depth Collar Resting
on Mount
Release Handle
Motor in Stowed Position
To Next Page
