18 AP 7161 Access Point

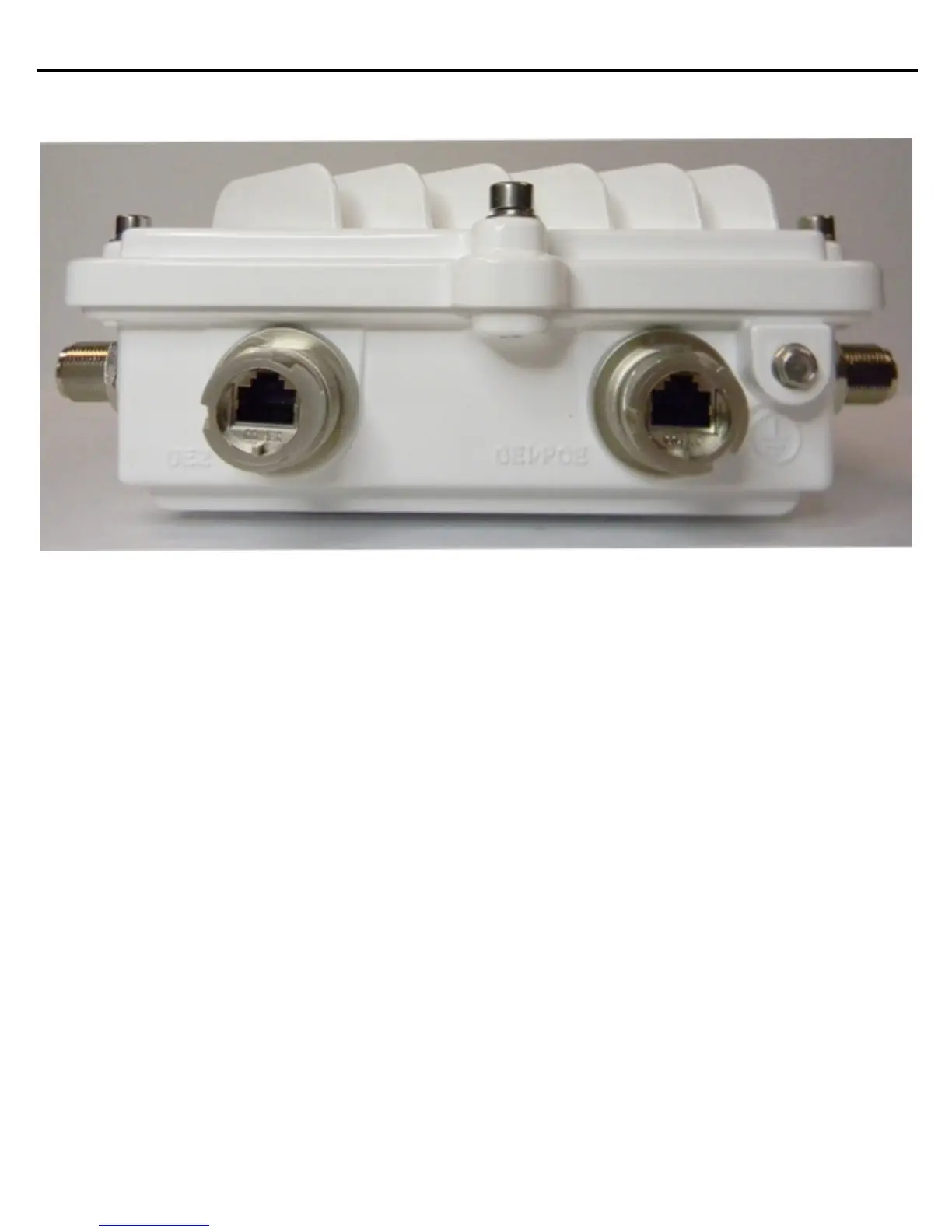

The Ethernet cable from the PoE device (if used) connects to the GE1/POE port on the unit.
The GE2 port on the unit can be used if a second data connection for an external device (e.g. surveillance camera)
is required. Ensure the GE2 WAN port has been configured to permit an attached external device during the
configuration process.
When making connections using these ports, a properly rated RJ45 connector is required. One weatherproof RJ45
plug kit is provided with each Access Point. When connecting cables to the AP 7161 Ethernet ports, follow the
instructions in the connector packaging and tighten the connectors to create a weatherproof seal. Shielded cables
are required.
